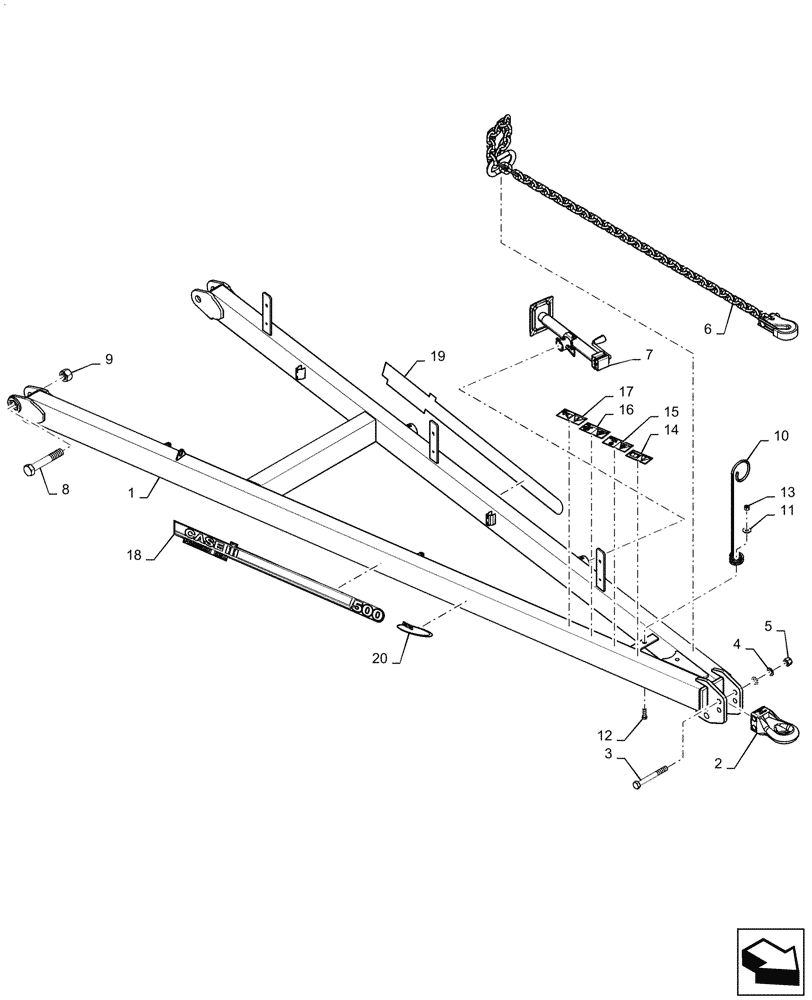

Запчасти Case IH 500 (37.100.AF[01]) - FRONT HITCH 50 AND 60 CASE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47431700

FRAME

Front Hitch

1шт.

2

87506220

HITCH

Base Cat IV Black

1шт.

3

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

2шт.

4

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

6шт.

5

9626600

NUT,1"-8, GC

2шт.

6

47510620

CHAIN

Safety, 80,000 LBF

1шт.

7

86617866

JACK

Assy

1шт.

8

47521877

BOLT

2шт.

9

87020431

LOCK NUT

2шт.

10

87506300

HOLDER

1шт.

11

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

12

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

13

19670

NUT,5/8"-11, GB

1шт.

14

47358801

CAUTION DECAL

ISO

1шт.

15

47403730

WARNING DECAL

Loss of Control

1шт.

16

47405862

WARNING DECAL

Rollover

1шт.

17

47405863

WARNING DECAL

Electrocution

1шт.

18

47529843

DECAL

Case Right

1шт.

19

47529842

DECAL

Case Left

1шт.

20

84144149

DECAL

AFS Logo

2шт.
