Запчасти Case IH 500 (37.100.AA[02]) - HOSE SUPPORT TOW BEHIND AIR CARTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

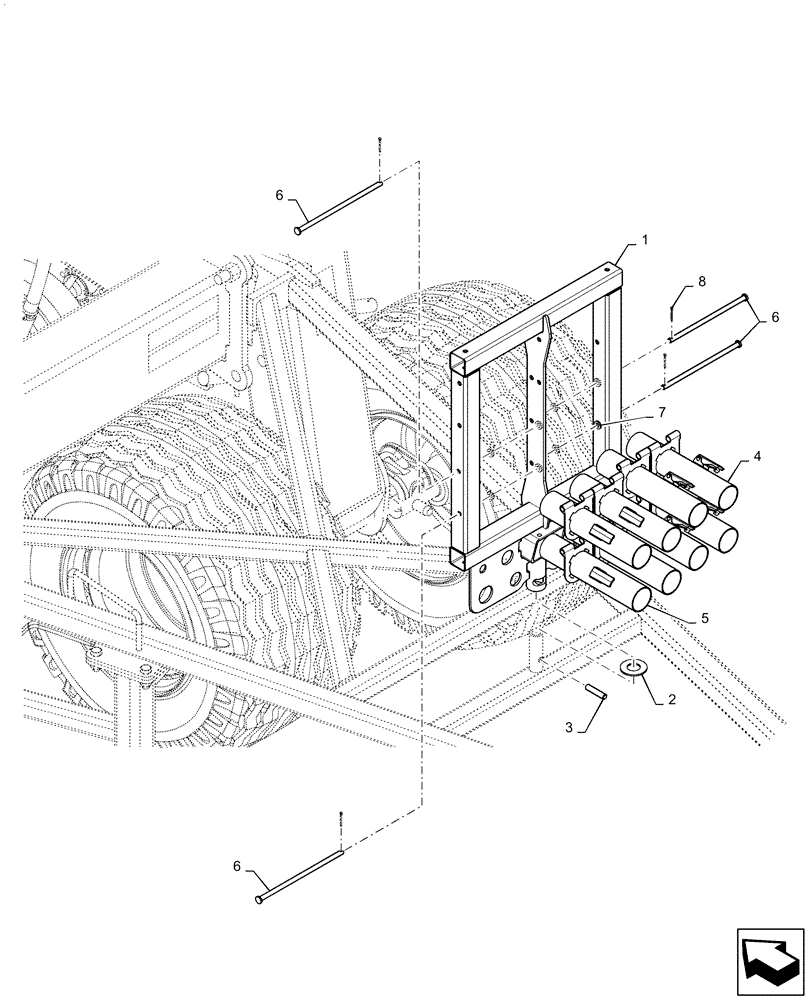

Схема запчастей Case IH 500 - (37.100.AA[02]) - HOSE SUPPORT TOW BEHIND AIR CARTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
4
1
8
5
6
6
7
6
3

Артикул

Название

Примечание

Количество

1

47773152

CRADLE

8 Run Manifold , Start Serial: YFS061075

1шт.

2

87023158

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

, Start Serial: YFS061075

1шт.

3

14613871

COTTER PIN

12 x 60 mm, Start Serial: YFS061075

1шт.

4

47720057

TUBE

Male Manifold Left , Start Serial: YFS061075

4шт.

5

47738001

TUBE

Male Manifold Right , Start Serial: YFS061075

4шт.

6

47748283

PIN

Clevis 10 x 275, Start Serial: YFS061075

4шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

, Start Serial: YFS061075

8шт.

8

10796401

COTTER PIN,M3.2 x 18

, Start Serial: YFS061075

4шт.

Выбрано товаров: 8
