(55.100.AA[03]) - FRONT LIGHT BRACKET 40 FOOT

Запчасти Case IH 500 (55.100.AA[03]) - FRONT LIGHT BRACKET 40 FOOT (55) - ELECTRICAL SYSTEMS

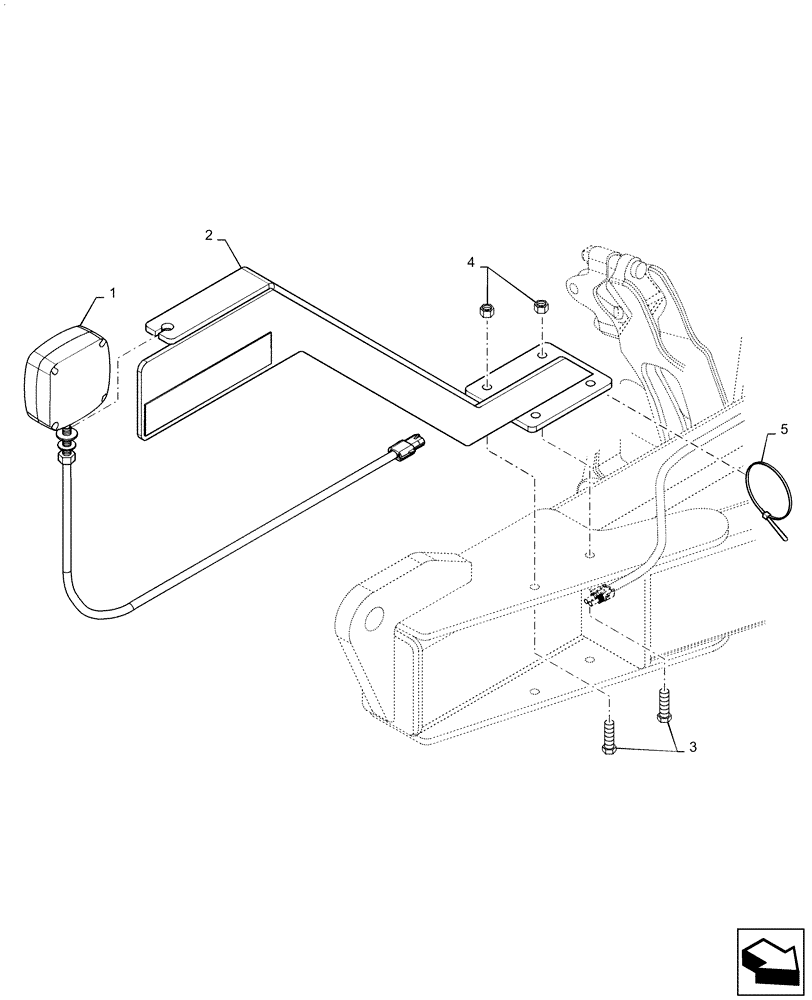

Схема запчастей Case IH 500 - (55.100.AA[03]) - FRONT LIGHT BRACKET 40 FOOT (55) - ELECTRICAL SYSTEMS
2
4
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

134454A1

LAMP,Halogen, 12V, 32W, Clear

, Start Serial: YFS061001

1шт.

2

47408178

BRACKET

Right Light Amber With Decal , Start Serial: YFS061001

1шт.

2

47408177

BRACKET

Left Light Amber With Decal , Start Serial: YFS061001

1шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

, Start Serial: YFS061001

2шт.

4

88902

NUT,3/8"-16

, Start Serial: YFS061001

2шт.

5

87557087

CABLE TIE

11", Start Serial: YFS061001

1шт.

Выбрано товаров: 6
