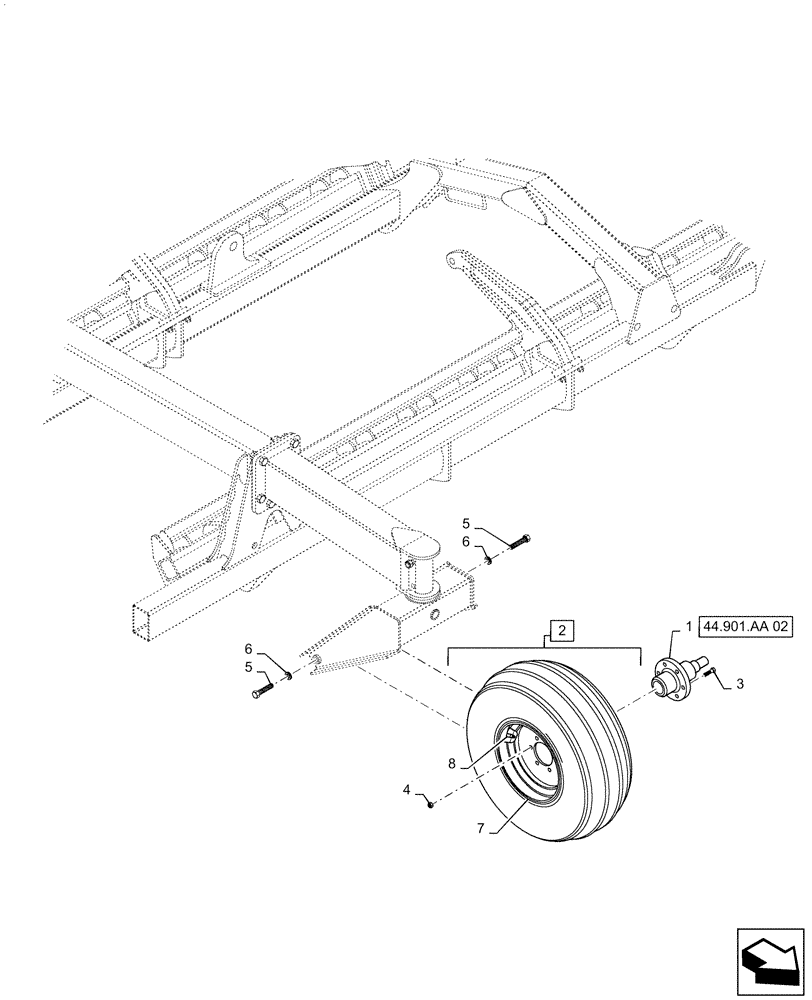

Запчасти Case IH 500 (44.100.AA[02]) - WING FRAME WHEELS (44) - WHEELS

1

GD-161A

HUB

Spindle H617, Start Serial: YFS061075

1шт.

2

87696880

TYRE/TIRE

Wheel Assy Silver Incl 7-8, Start Serial: YFS061075

1шт.

2

87696881

TYRE/TIRE

Whell Assy White Incl 7-8, Start Serial: YFS061075

1шт.

3

1662

BOLT

Wheel Stud , Start Serial: YFS061075

6шт.

4

1663

NUT

Wheel , Start Serial: YFS061075

6шт.

5

86508733

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

, Start Serial: YFS061075

2шт.

6

492-11075

LOCK WASHER,3/4"

, Start Serial: YFS061075

2шт.

7

87698703

RIM

Wheel 15 x 10 1.25" Offset Silver , Start Serial: YFS061075

1шт.

7

87698704

RIM

Wheel 15 x 10 1.25" Offset White , Start Serial: YFS061075

1шт.

8

22802

VALVE

Stem , Start Serial: YFS061075

1шт.
