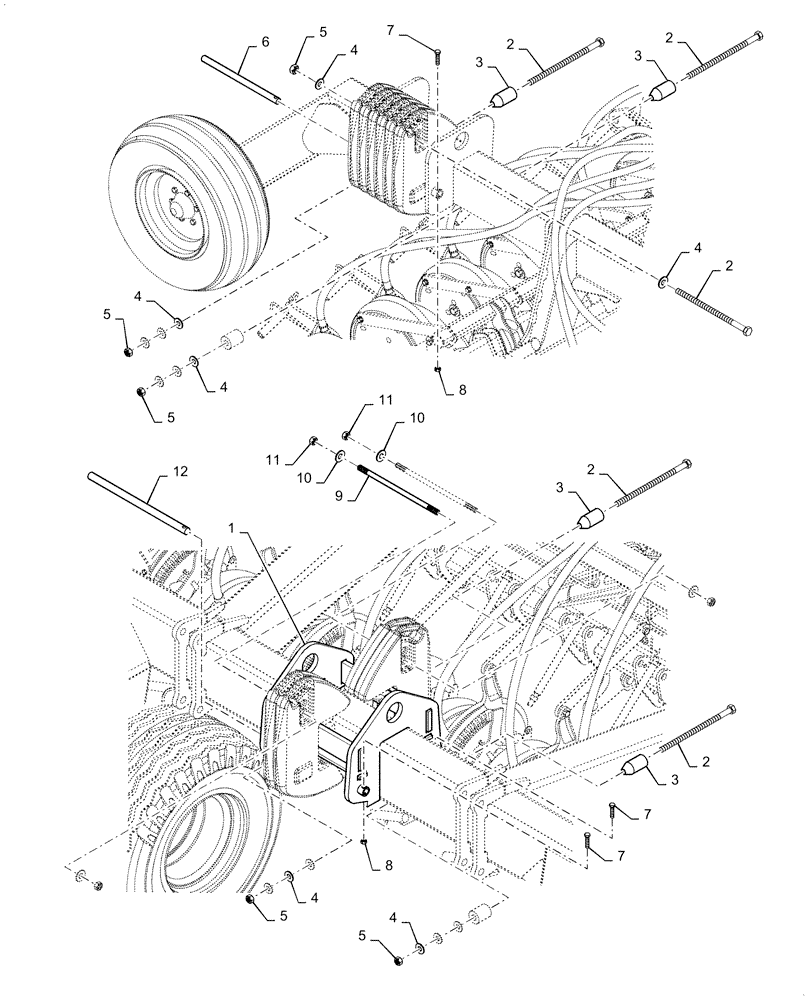

Запчасти Case IH 500 (39.100.AA[11]) - WING FRAME WEIGHT BRACKETS (39) - FRAMES AND BALLASTING

1

47394792

FRAME

Wing Ballast 8", Start Serial: YFS061075

1шт.

1

84468443

FRAME

Ballast 10" Rear Frame , Start Serial: YFS061075

1шт.

2

3325

BOLT

3/4"-10 x 14", Start Serial: YFS061075

4шт.

3

47387087

WEDGE

Tube Black , Start Serial: YFS061075

2шт.

4

495-81044

WASHER,0.78" ID x 1.75" OD x 0.12" Thk

, Start Serial: YFS061075

4шт.

5

280375

NUT,3/4"-10, GC

, Start Serial: YFS061075

4шт.

6

84468254

ROD

Weight Ballast , Start Serial: YFS061075

2шт.

7

84468254

ROD

.55 x 2.25", Start Serial: YFS061075

2шт.

8

9636698

NUT,1/2"-13, GB

, Start Serial: YFS061075

2шт.

9

84539454

THREADED ROD

5/8", Start Serial: YFS061075

1шт.

10

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

, Start Serial: YFS061075

2шт.

11

85700693

NUT,5/8" - 11, Gr C

, Start Serial: YFS061075

2шт.

12

47543126

ROD

Ballast Lock , Start Serial: YFS061075

1шт.
