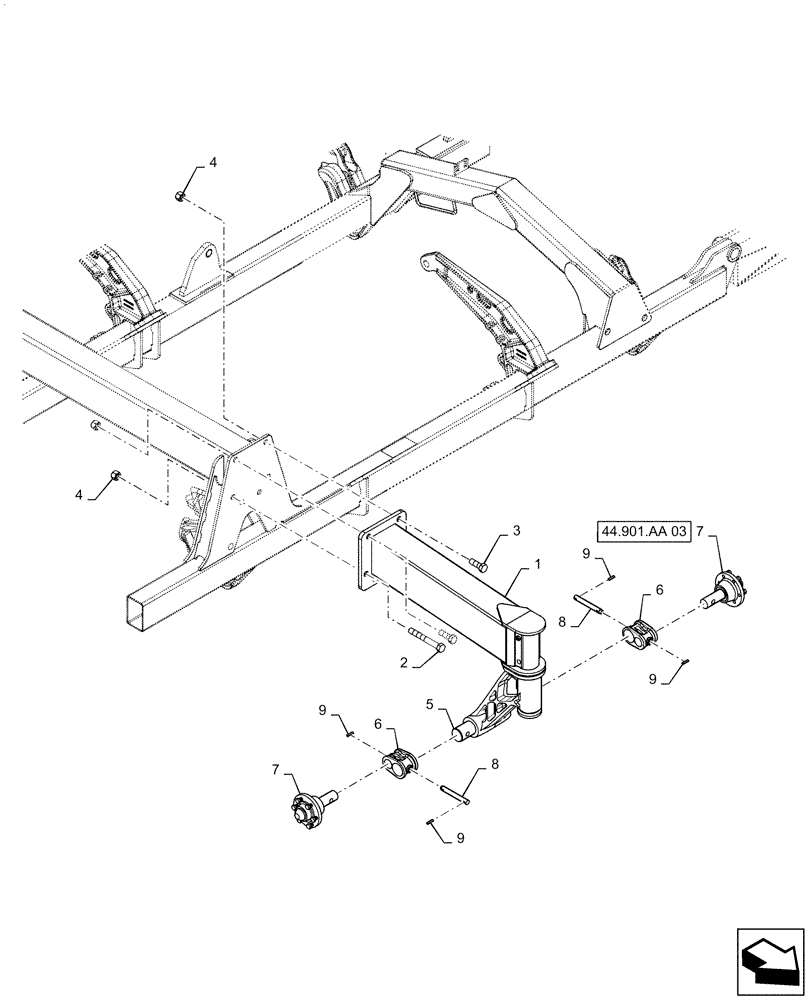

Запчасти Case IH 500 (39.100.AA[05]) - WING END FRAME SPAR WITH WALKING BEAMS (39) - FRAMES AND BALLASTING

1

84391023

BRACKET

Front Spar Red , Start Serial: YFS061001

1шт.

1

84398442

BRACKET

Front Spar Blue , Start Serial: YFS061001

1шт.

2

47400859

BOLT

.875 x 6.5 , Start Serial: YFS061001

2шт.

3

280488

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

, Start Serial: YFS061001

2шт.

4

232-41414

NUT

Lock .875", Start Serial: YFS061001

4шт.

5

84529350

SHAFT

63.5 x 444", Start Serial: YFS061001

1шт.

6

87506497

BEAM

Caster Walking Beam , Start Serial: YFS061001

2шт.

7

84472211

HUB

Spindle Assy H65, Start Serial: YFS061001

2шт.

8

87503793

PIN

Walking Beam , Start Serial: YFS061001

2шт.

9

84158592

LOCK PIN

Sloted , Start Serial: YFS061001

4шт.
