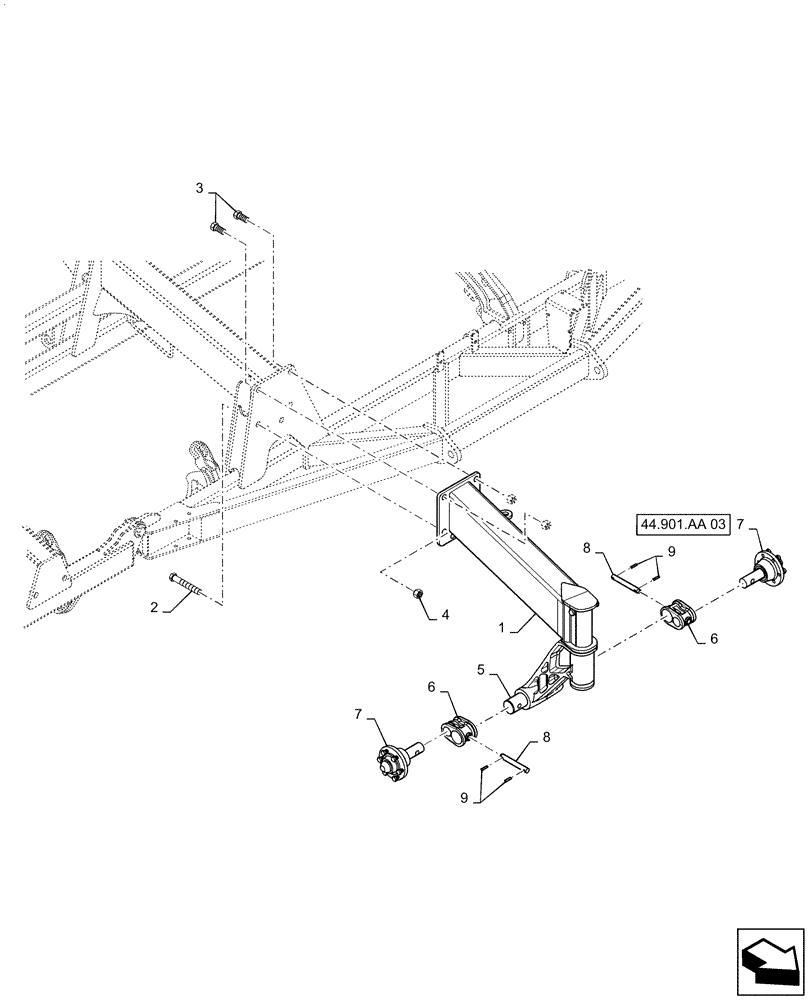

Запчасти Case IH 500 (39.100.AA[04]) - FRONT CENTER FRAME SPAR WITH WALKING BEAMS (39) - FRAMES AND BALLASTING

1

84341944

FRAME

Front Center Right Spar Red , Start Serial: YFS061001

1шт.

1

84349684

FRAME

Front Center Right Spar Blue , Start Serial: YFS061001

1шт.

1

84341943

FRAME

Front Center Left Spar Red , Start Serial: YFS061001

1шт.

1

84349683

FRAME

Front Center Left Spar Blue , Start Serial: YFS061001

1шт.

2

47400882

BOLT

.875 X 7.5 UNC, Start Serial: YFS061001

2шт.

3

280488

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

, Start Serial: YFS061001

2шт.

4

232-41414

NUT

.875 X 7.5 UNC, Start Serial: YFS061001

4шт.

5

84267986

SHAFT

Axle , Start Serial: YFS061001

1шт.

6

47523470

BEAM

Walking , Start Serial: YFS061001

2шт.

7

84472211

HUB

Spindle H65, Start Serial: YFS061001

2шт.

8

87671096

PIN

Walking Beam , Start Serial: YFS061001

2шт.

9

84158592

LOCK PIN

Sloted , Start Serial: YFS061001

4шт.
