(39.100.AA[03]) - REAR WING FRAME WHEEL BEAM

Запчасти Case IH 500 (39.100.AA[03]) - REAR WING FRAME WHEEL BEAM (39) - FRAMES AND BALLASTING

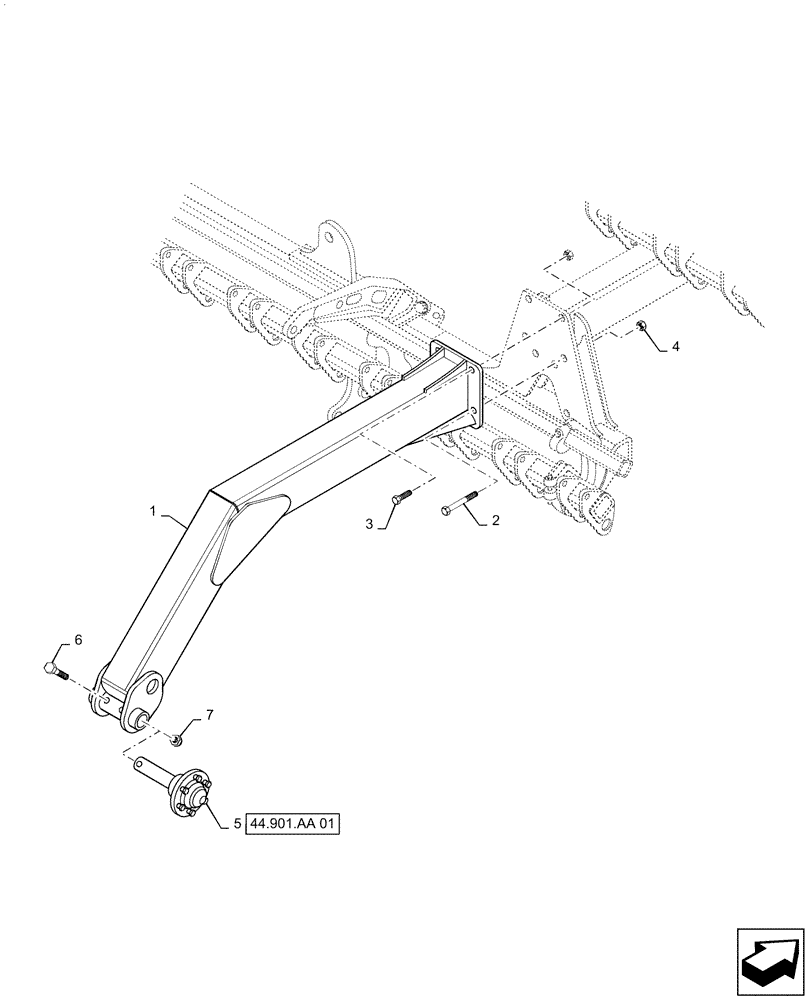

Схема запчастей Case IH 500 - (39.100.AA[03]) - REAR WING FRAME WHEEL BEAM (39) - FRAMES AND BALLASTING
44.901.aa 01
4
7
6
1
3
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47601740

BEAM

Rear Wing Wheel Fixed Heavy Red, Start Serial: YFS061001

1шт.

1

47601741

BEAM

Rear Wing Wheel Fixed Heavy, Start Serial: YFS061001

1шт.

2

47400859

BOLT

.875 X 6.5, Start Serial: YFS061001

2шт.

3

280488

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

, Start Serial: YFS061001

2шт.

4

232-41414

NUT

.875 UNC, Start Serial: YFS061001

4шт.

5

84327548

HUB

H615, Start Serial: YFS061001

1шт.

6

280210

BOLT,Hex, 3/4"-10 x 4", G5

, Start Serial: YFS061001

1шт.

7

280375

NUT,3/4"-10, GC

, Start Serial: YFS061001

1шт.
