(37.100.AA[07]) - FRONT HITCH 40 FT DRILLS

Запчасти Case IH 500 (37.100.AA[07]) - FRONT HITCH 40 FT DRILLS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

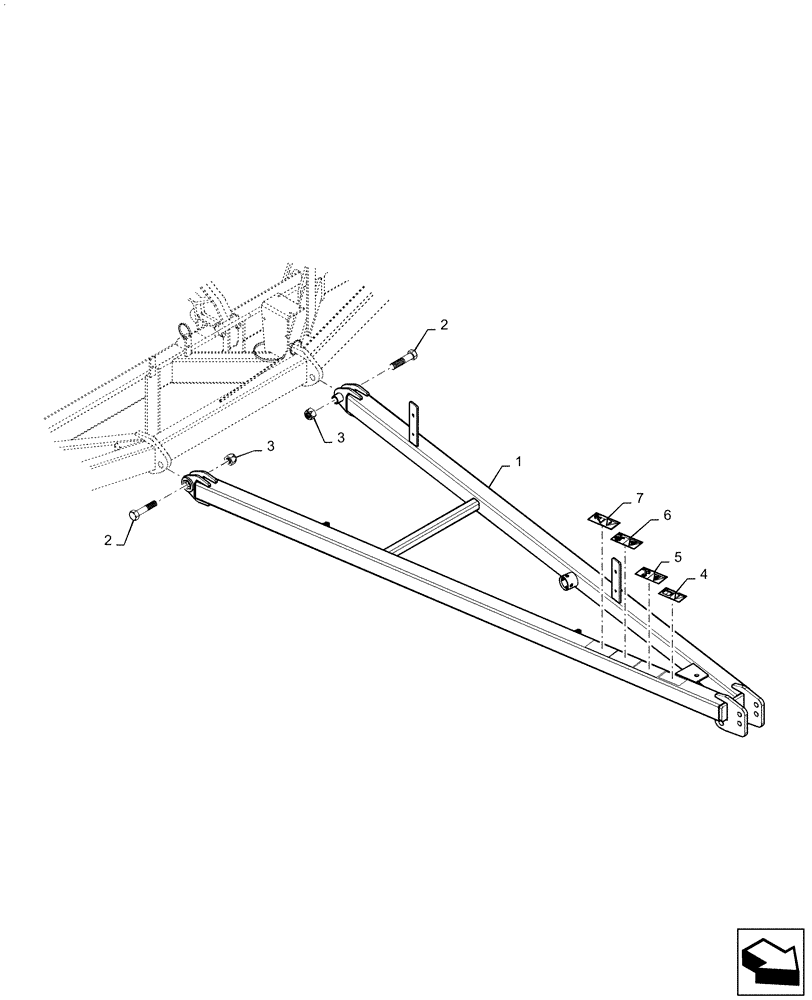

Схема запчастей Case IH 500 - (37.100.AA[07]) - FRONT HITCH 40 FT DRILLS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
7
1
3
2
4
6
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84349248

HITCH

Hitch Front 40 Foot Painted Red , Start Serial: YFS061001

1шт.

1

84346446

HITCH

Hitch Front 40 Foot Painted Blue , Start Serial: YFS061001

1шт.

2

3973

BOLT

1.25 X 5.5 UNC, Start Serial: YFS061001

2шт.

3

86609684

NUT,1 1/4"-7, GB

, Start Serial: YFS061001

2шт.

4

47358801

CAUTION DECAL

ISO, Start Serial: YFS061001

1шт.

5

47403730

WARNING DECAL

Loss Control ISO , Start Serial: YFS061001

1шт.

6

47405862

WARNING DECAL

Rollover Hazard , Start Serial: YFS061001

1шт.

7

47405863

WARNING DECAL

Electocution Hazard , Start Serial: YFS061001

1шт.

Выбрано товаров: 8
