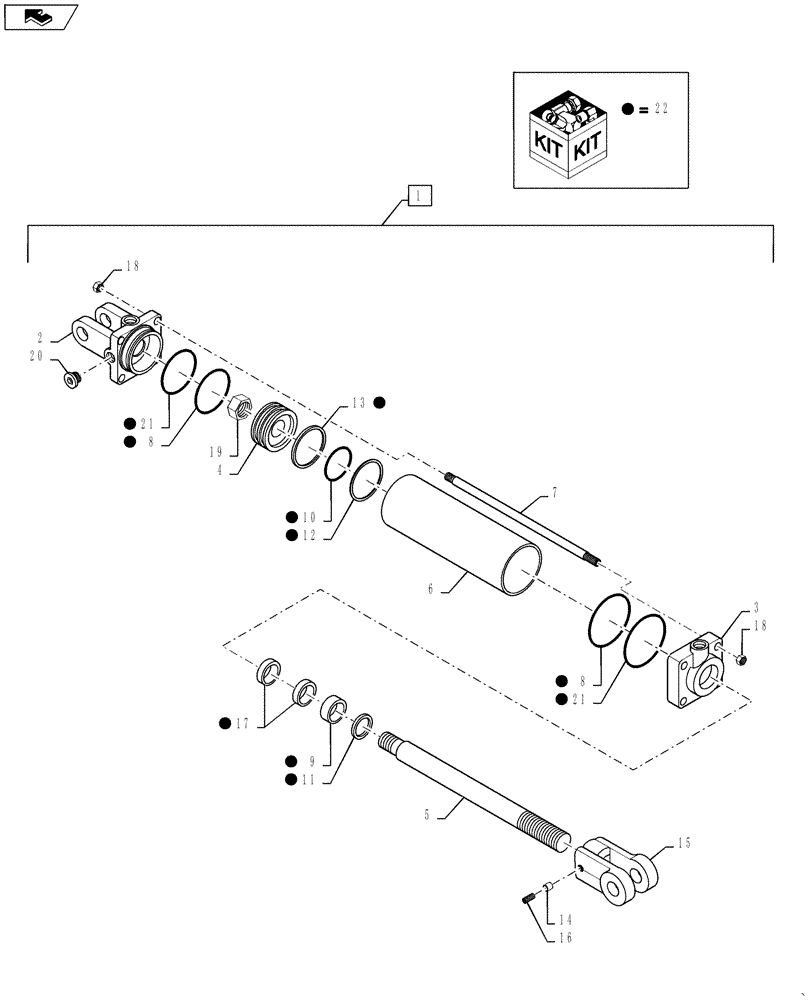

Запчасти Case IH 500 (35.946.AD[03]) - HYDRAULIC CYLINDER 2.5X8 3000 PSI (35) - HYDRAULIC SYSTEMS

1

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2 1/2" X 8" 3000 PSI no Pins

1шт.

2

439275A1

CYLINDER END CAP

Cylinder Base 2 1/2" Bore

1шт.

3

87409409

HEAD

Cylinder Front

1шт.

4

87409477

PISTON

Cylinder

1шт.

5

87409456

PISTON ROD

1шт.

6

NSS

NOT SOLD SEPARAT

Cylinder Tube

1шт.

7

87409488

THREADED TIE-ROD

3/8" 16

4шт.

8

NSS

NOT SOLD SEPARAT

O-Ring Incl in 22

2шт.

9

NSS

NOT SOLD SEPARAT

U-Cup Rod Seal Incl in 22

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring Incl in 22

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Wipper Incl in 22

1шт.

12

NSS

NOT SOLD SEPARAT

PTFE Seal Incl in 22

1шт.

13

NSS

NOT SOLD SEPARAT

Wear Ring Incl in 22

1шт.

14

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

Pad Clevis Set Screw

1шт.

15

87409387

CLEVIS,1 -1/4" - 12

Cylinder 1" Pin

1шт.

16

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

17

NSS

NOT SOLD SEPARAT

Wear Ring Incl in 22

2шт.

18

9628503

NUT,3/8"-16, G5

8шт.

19

87021832

LOCK NUT,3/4"-16, GC

1шт.

20

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

21

NSS

NOT SOLD SEPARAT

Back Up O-Ring Incl in 22

2шт.

22

87405834

SEAL KIT

Hydraulic Cylinder

1шт.
