(35.946.AD[01]) - 25 FOOT HYDRAULIC CYLINDER LAYOUT

Запчасти Case IH 500 (35.946.AD[01]) - 25 FOOT HYDRAULIC CYLINDER LAYOUT (35) - HYDRAULIC SYSTEMS

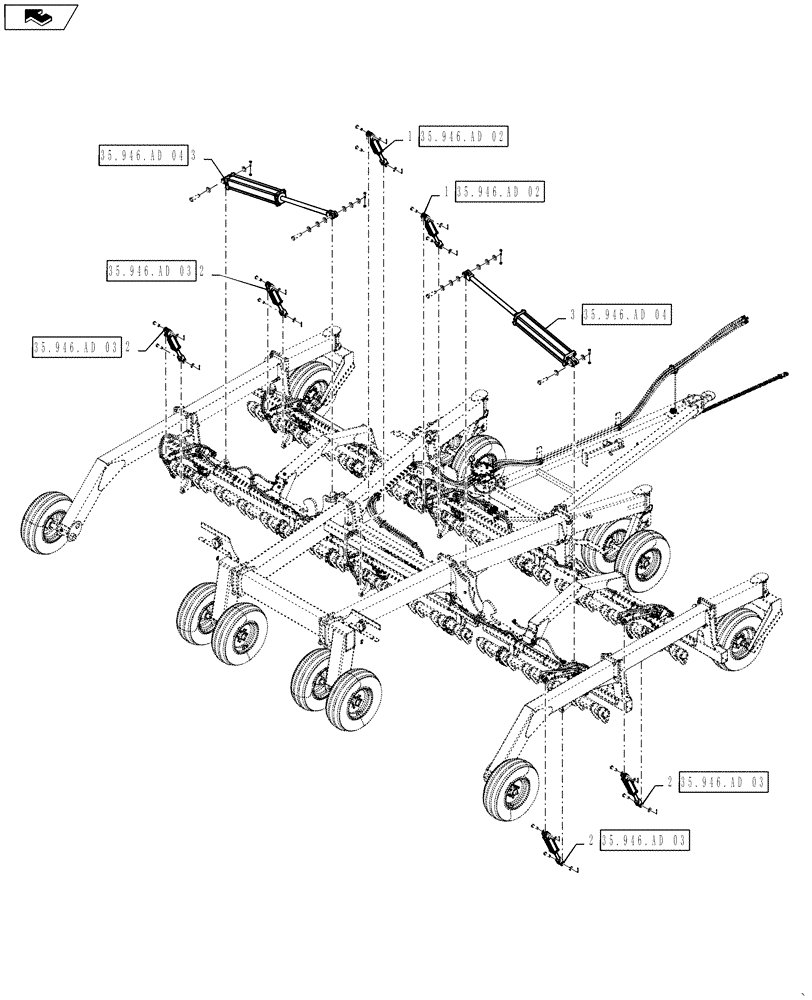

Схема запчастей Case IH 500 - (35.946.AD[01]) - 25 FOOT HYDRAULIC CYLINDER LAYOUT (35) - HYDRAULIC SYSTEMS
2
35.946.ad 04
3
home
35.946.ad 03
35.946.ad 04
1
35.946.ad 02
35.946.ad 03
1
35.946.ad 02
2
35.946.ad 03
35.946.ad 03
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84526100

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3X8 3000 PSI No Pins

2шт.

2

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2.5X8 3000 PSI No Pins

4шт.

3

47400398

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 749.3mm Stroke

5X29.5 3000 PSI No Pins

2шт.

Выбрано товаров: 3
