(35.945.AA[01]) - MANIFOLD, HYDRAULIC, CAB, PRESSURE GAUGE

Запчасти Case IH 500 (35.945.AA[01]) - MANIFOLD, HYDRAULIC, CAB, PRESSURE GAUGE (35) - HYDRAULIC SYSTEMS

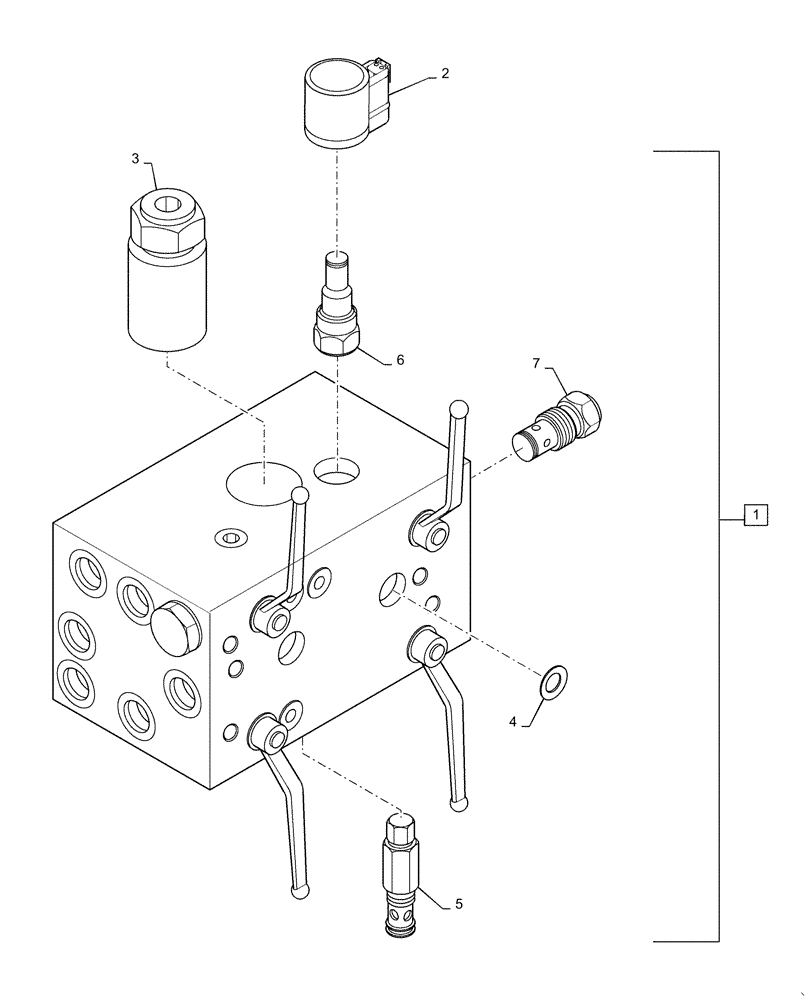

Схема запчастей Case IH 500 - (35.945.AA[01]) - MANIFOLD, HYDRAULIC, CAB, PRESSURE GAUGE (35) - HYDRAULIC SYSTEMS
2
5
6
3
7
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47448807

HYDRAULIC MANIFOLD

IN CAB DP - 25/30 Incl 2 - 7

1шт.

2

47448438

COIL

1шт.

3

47488316

PILOT VALVE

Incl Seal That Come In Seal Kit 4788309

1шт.

4

84547961

ORIFICE

2шт.

5

47488313

VALVE PRESSURE RELIE

1шт.

6

47448432

VALVE PRESSURE RELIE

1шт.

7

47448409

CHECK VALVE

2шт.

8

47488309

OIL SEAL

Kit Not Shown

1шт.
