Запчасти Case IH 500 (79.100.AA[01]) - AIR DISTRIBUTION HEADER 8,9 PORT (79) - PLANTING

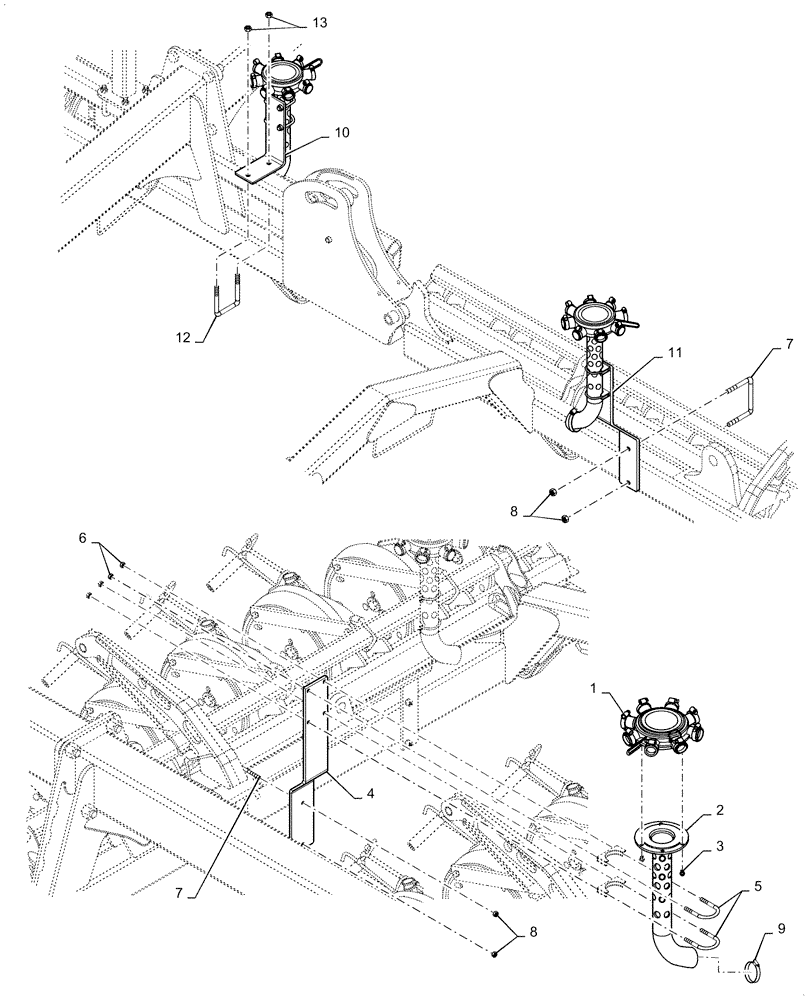

Схема запчастей Case IH 500 - (79.100.AA[01]) - AIR DISTRIBUTION HEADER 8,9 PORT (79) - PLANTING
12
6
1
13
5
8
11
7
10
7
2
8
4
3
9

Артикул

Название

Примечание

Количество

1

GP-108SV1

KIT

Header 8 Port EZ Flow , Start Serial: YFS061001

1шт.

1

GP-109SV1

KIT

Header 9 Port EZ Flow , Start Serial: YFS061001

1шт.

2

GP-103

ELBOW

Secondary Dimpled , Start Serial: YFS061001

1шт.

3

87334944

SELF-TAP SCREW

.25-14 x .5, Start Serial: YFS061001

6шт.

4

312992A1

BRACKET

MFLD Secondary , Start Serial: YFS061001

1шт.

5

1826

BOLT

U-style , Start Serial: YFS061001

2шт.

6

1375

NUT,5/16"-18, G5

, Start Serial: YFS061001

4шт.

7

1030623

U-BOLT

, Start Serial: YFS061001

2шт.

8

87530607

NUT

1/2-13", Start Serial: YFS061001

4шт.

9

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

, Start Serial: YFS061001

1шт.

10

VF-530

STAND

Header Short , Start Serial: YFS061001

1шт.

10

VF-535

STAND

Header Long , Start Serial: YFS061001

1шт.

11

84582293

BRACKET

Secondary , Start Serial: YFS061001

1шт.

12

3951

U-BOLT

.625", Start Serial: YFS061001

1шт.

13

19670

NUT,5/8"-11, GB

, Start Serial: YFS061001

2шт.

Выбрано товаров: 15
