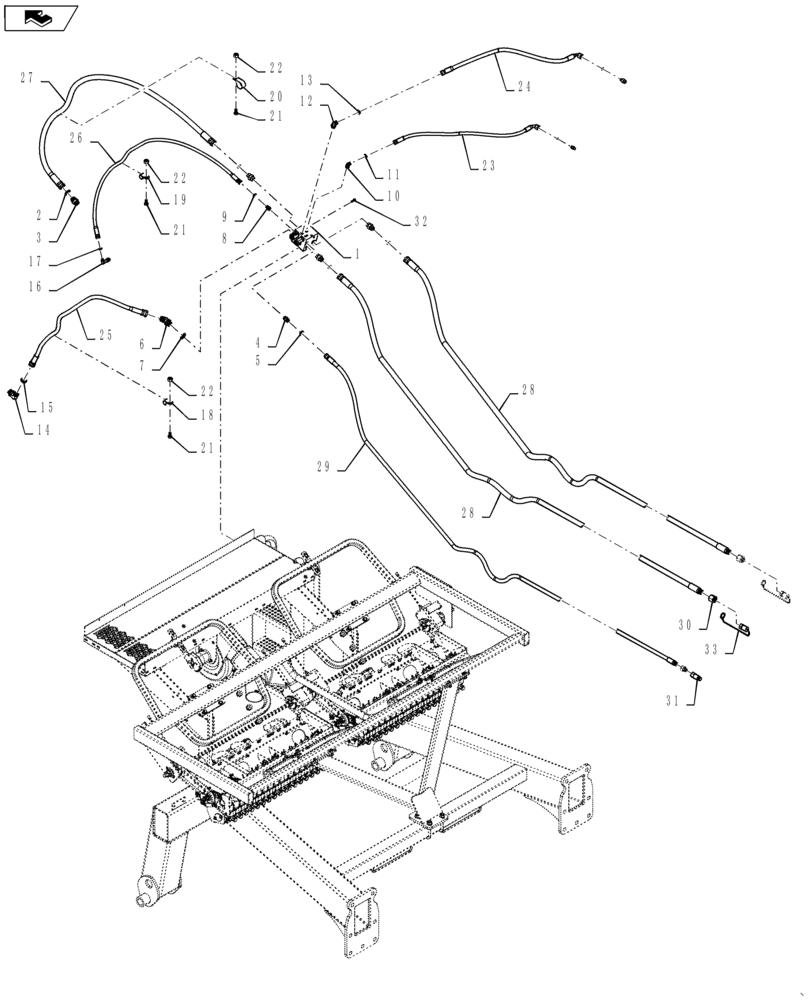

Запчасти Case IH 500 (35.162.AG[01]) - HYDRAULIC SYSTEM AND LINES (35) - HYDRAULIC SYSTEMS

1

84474929

HYDRAULIC VALVE

1шт.

2

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl O-Ring

4шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Used With 2

4шт.

4

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl O-Ring

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Used With 4

2шт.

6

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl O-Ring

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Used With 6

1шт.

8

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl O-Ring

2шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Used With 8

2шт.

10

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl O-Ring

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Used With 10

1шт.

12

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl O-Ring

1шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Used With 12

1шт.

14

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl O-Ring

1шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Used With 14

1шт.

16

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl O-Ring

1шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Used With 16

1шт.

18

86637979

CLAMP,20.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

20

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

22

9628503

NUT,3/8"-16, G5

3шт.

23

84599316

HYDRAULIC HOSE

915mm 100BU Only

1шт.

23

84599321

HYDRAULIC HOSE

660mm 70BU Only

1шт.

24

84599319

HYDRAULIC HOSE

890mm 100BU Only

1шт.

24

84599323

HYDRAULIC HOSE

635mm 70BU Only

1шт.

25

84599324

HYDRAULIC HOSE

1145mm 100BU And 70BU

1шт.

26

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

5335mm 100BU And 70BU

1шт.

27

84599326

HYDRAULIC HOSE

1830mm 100BU And 70BU

1шт.

28

84599308

HYDRAULIC HOSE

10160mm 100BU

2шт.

28

84599312

HYDRAULIC HOSE

9270mm 70BU

2шт.

29

84599310

HYDRAULIC HOSE

10160mm 100BU

1шт.

29

84599314

HYDRAULIC HOSE

9270mm 70BU

1шт.

30

6936

QUICK MALE COUPLING,3/4" - 14 NPTF

75mm Tip

2шт.

31

9412

QUICK MALE COUPLING

5mm Tip

1шт.

32

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

33

333719A1

CAP

Quick Coupler Yellow

2шт.

34

84566334

HOSE CLAMP

2шт.

35

84566330

PROTECTION PLATE

1шт.

36

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.
