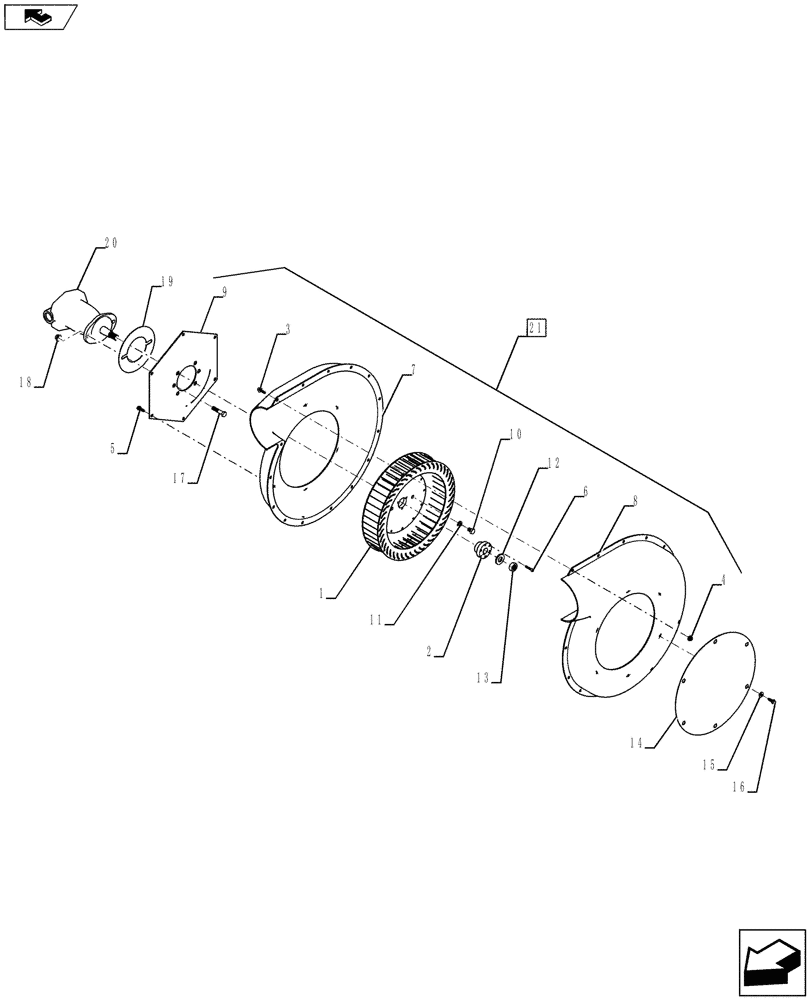

Запчасти Case IH 500 (77.101.AB[02]) - FAN (77) - SEEDING/PLANTING

1

447243A1

ROTOR

Fan Aluminum

1шт.

2

87500050

BUSHING

Collar

1шт.

3

523292

BOLT,1/4" - 20 x 1.03" OAL

15шт.

4

523282

SERRATED NUT,Flg, USR, 1/4"-20

15шт.

5

86624115

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

6шт.

6

86517238

HEX SOC SCREW,#10 - 24 x 1"

3шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

88814

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

12

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

13

86624024

THIN NUT,5/8"-18, Thin, G8

1шт.

14

84495334

SCREEN

1шт.

15

86624115

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

6шт.

16

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

17

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

18

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

19

84395655

SUPPORT

1шт.

20

278188A1

MOTOR

, Serial Range: -YES056039

1шт.

20

47640717

HYDRAULIC MOTOR

, Start Serial: YES056039

1шт.

21

47657940

BLOWER

Incl 1 - 9

1шт.

22

84581855

TRANSDUCER

Fan 0-1.6 PSIG

1шт.

23

47685620

KIT

Motor Seal service kit for 47640717 motor , Start Serial: YES056039

1шт.

24

100-21162

SNAP RING,1.625", Int, #162

For Motor 47640717 and 278188A1

1шт.

25

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

For Motor 47640717 and 278188A1

1шт.

26

55555C1

KEY

1/4" For Motor 47640717 and 278188A1

1шт.

27

D63349

SEAL

Shaft For Motor 47640717 and 278188A1

1шт.
