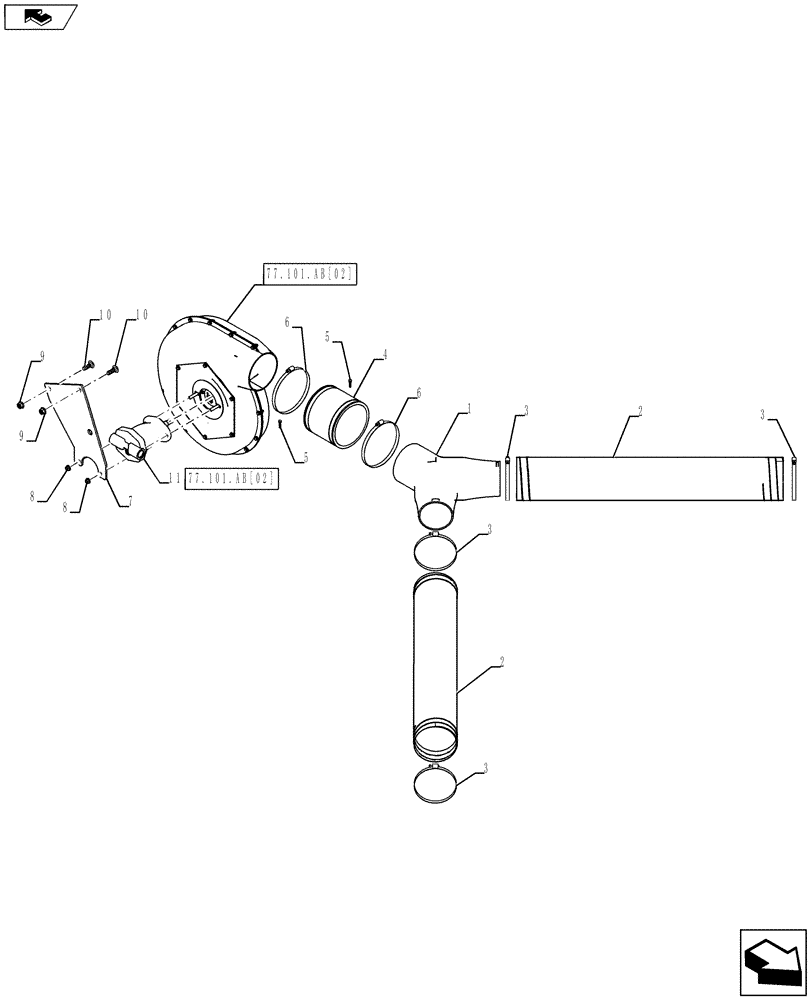

Запчасти Case IH 500 (77.101.AB[01]) - SINGLE FAN MOUNT (77) - SEEDING/PLANTING

1

312284A1

TUBE,123.8 mm ID, 130.2 - 152.4 mm OD

1шт.

2

86990424

HOSE

2шт.

3

87690486

CLAMP,149mm ID - 172mm ID, SAE #100

4шт.

4

312229A1

RUBBER

1шт.

5

86516065

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

2шт.

6

214-14116

HOSE CLAMP,#116, 6.88" - 7.75", Type F Worm

2шт.

7

84495331

BRACKET

1шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

9

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

10

280-420

2шт.

11

278188A1

MOTOR

1шт.

11

278188A1R

REMAN-HYD MOTOR

Reman For New PN 278188A1

1шт.

11

278188A1C

REMAN-HYD MOTOR

Return Number

1шт.
