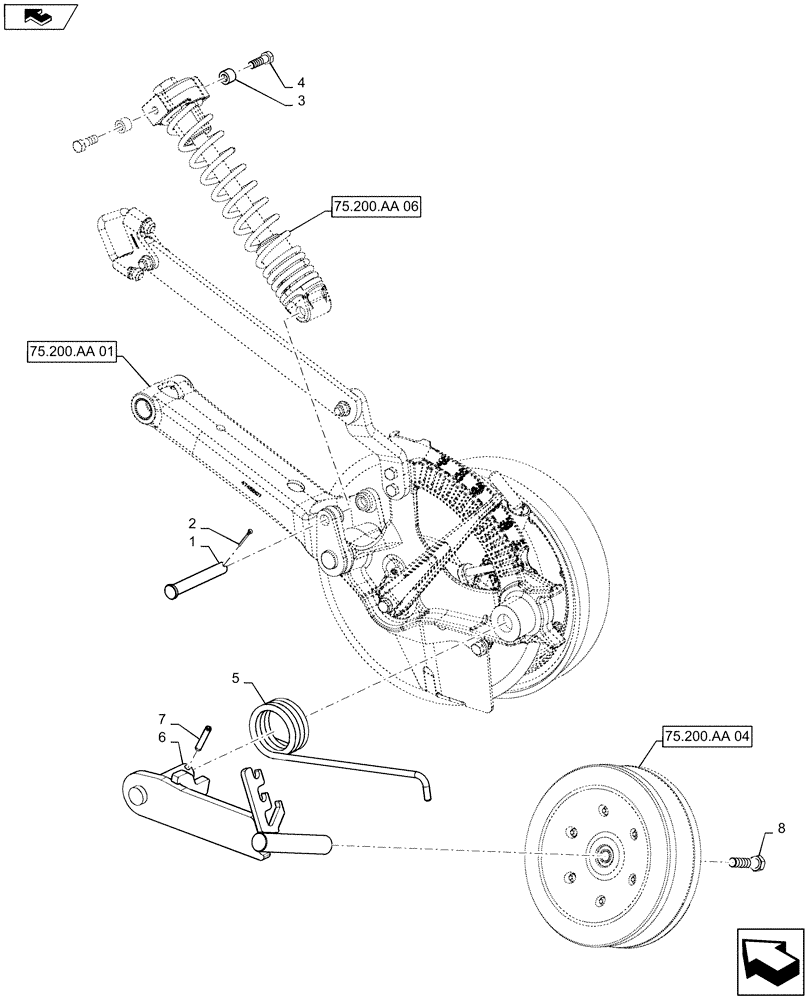

Запчасти Case IH 500 (75.200.AA[05]) - OPENER ASSY (75) - SOIL PREPARATION

1

84297234

CLEVIS PIN

19 X 126

1шт.

2

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

3

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

Linkage

2шт.

4

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

5

84513069

TORSION SPRING

Right Painted

1шт.

5

84513071

TORSION SPRING

Left Painted

1шт.

6

84297203

ARM

Packer Single Painted Left

1шт.

6

84297182

ARM

Packer Single Painted Right

1шт.

7

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

1шт.

8

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.
