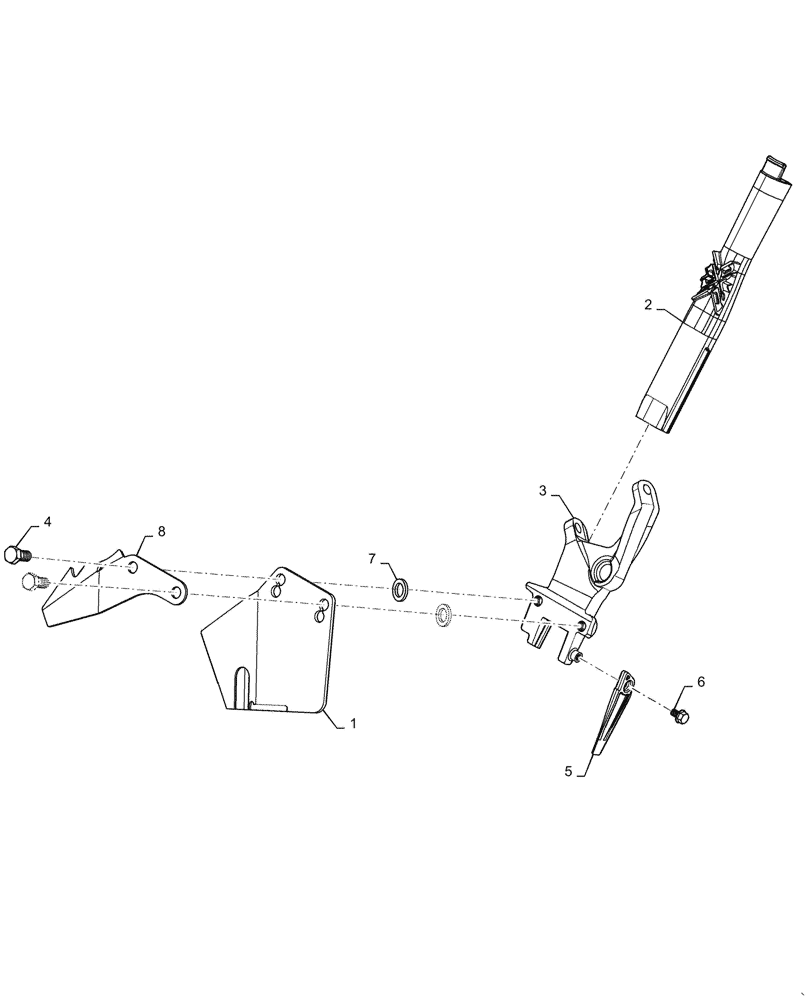

Запчасти Case IH 500 (75.200.AA[02]) - SCRAPER RIGHT TILT AND LEFT TILT (75) - SOIL PREPARATION

1

84580804

KNIFE BLADE

Right Hand

1шт.

1

84580806

KNIFE BLADE

Left Hand

1шт.

2

84253703

PLASTIC-RUBBER TUBE

Seed

1шт.

3

84253698

MOUNT

Seed Tube Right Tilt

1шт.

3

84253701

MOUNT

Seed Tube Left Tilt

1шт.

4

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

5

47363523

FLAP

Seed Deflector

1шт.

6

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

7

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

7

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1шт.

8

84543395

SHIELD

Trash Right

1шт.

8

84543397

SHIELD

Trash Left

1шт.
