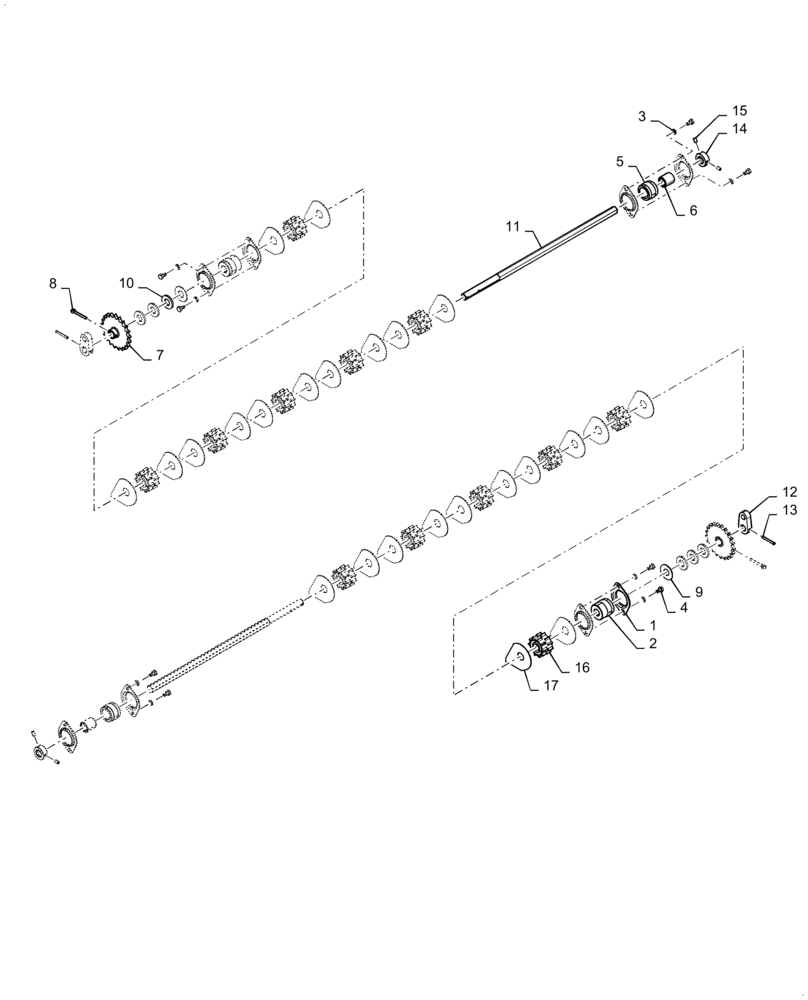

Запчасти Case IH 500 (60.110.AD[07]) - 30FT 7.5IN 4 SECT COARSE ROLLER (60) - PRODUCT FEEDING

1

84389768

FLANGE

Bearing Mount 2 hole

8шт.

2

84389769

BUSHING

37.5mm OD x 16 ID

2шт.

3

80682

LOCK WASHER,1/4"

6шт.

4

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

6шт.

5

84389786

BUSHING

Meter Shaft Short

2шт.

6

84389787

JOURNAL

Hex Meter Shaft

2шт.

7

84389789

SPROCKET

21 Tooth

2шт.

8

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

9

87613191

WASHER,0.66" ID x 1.5" OD x 0.06" Thk

2шт.

10

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

6шт.

11

84389737

SHAFT

Meter Drive 12 P4S

2шт.

12

84474921

ARM

Meter Shaft

2шт.

13

87020817

LOCK PIN,3/16" OD x 1-1/2" L, Slotted

2шт.

14

84485534

COLLAR

5/8"Hex Bore

2шт.

15

84523394

KEYWAY

Set Screw

4шт.

16

84389771

METER

Wheel High Rate

12шт.

17

84389785

SIDE PLATE

24шт.
