Запчасти Case IH 500 (55.516.AT[01]) - HARNESS DISK DRILL CONTROL (55) - ELECTRICAL SYSTEMS

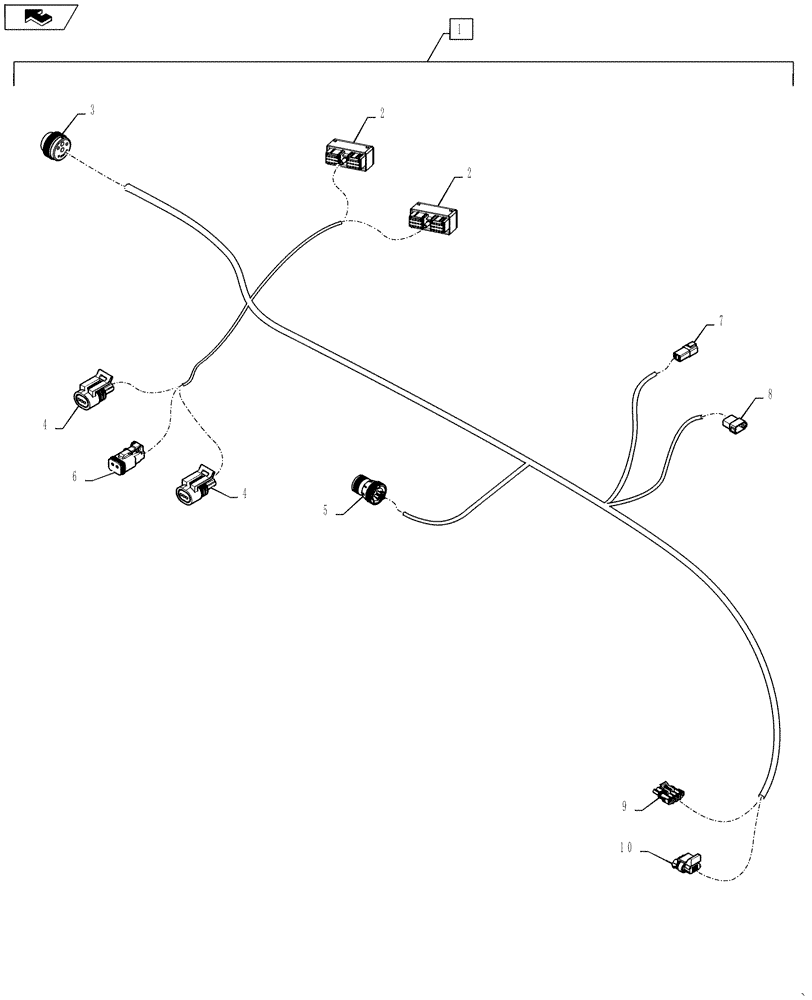

Схема запчастей Case IH 500 - (55.516.AT[01]) - HARNESS DISK DRILL CONTROL (55) - ELECTRICAL SYSTEMS
9
7
4
4
6
5
home
8
10
2
2
3
1

Артикул

Название

Примечание

Количество

1

84560794

WIRE HARNESS

Disk Drill Control Incl 2 - 10

1шт.

2

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30 Way ECU 1A

1шт.

2

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30 Way ECU 1B

1шт.

3

84068583

PLUG,12 - 16 Ga, White

9 Way ISO BUS

1шт.

4

84078681

WIRE CONNECTOR,Female

3 Way Down Pressure Sensor

1шт.

4

84078681

WIRE CONNECTOR,Female

3 Way Pressure Work Switch

1шт.

5

87706941

ELEC CONNECTOR

6 Way Flow System

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Valve PRV 1

1шт.

7

87696138

ELEC CONNECTOR

4 Way Mounted Tank 2

1шт.

8

84278761

ELEC CONNECTOR

12 Way Mounted Tank

1шт.

9

87692817

ELEC CONNECTOR

4 Way TBH/MT Power

1шт.

10

87694714

ELEC CONNECTOR,Female, 6 Cavities

6 Way CAN Terminator

1шт.

Выбрано товаров: 12
