Запчасти Case IH 500 (55.511.AL[01]) - HARNESS LIGHTING (55) - ELECTRICAL SYSTEMS

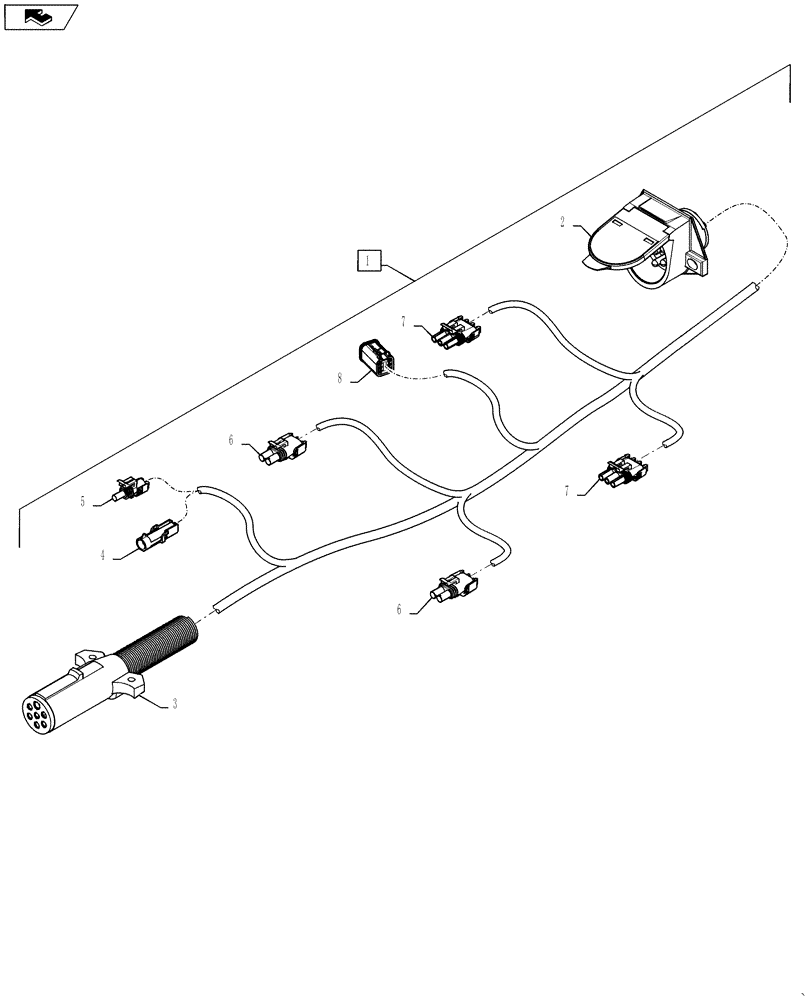

Схема запчастей Case IH 500 - (55.511.AL[01]) - HARNESS LIGHTING (55) - ELECTRICAL SYSTEMS
2
6
1
6
5
7
3
4
8
home
7

Артикул

Название

Примечание

Количество

1

84370422

WIRE HARNESS

Lighting Incl 2 - 8

1шт.

2

84162518

ELEC CONNECTOR

7 Way To Implement

1шт.

3

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

7 Way To Tractor Lights

1шт.

4

87693745

ELEC CONNECTOR,Male, Blade

1 Way Brake

1шт.

5

87693744

WIRE CONNECTOR

1 Way Brake

1шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

2 Way LH Turn Light

1шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

2 Way RH Turn Light

1шт.

7

87644909

WIRE CONNECTOR,Female, 3 Pins

3 Way LH Tail Light

1шт.

7

87644909

WIRE CONNECTOR,Female, 3 Pins

3 Way RH Tail Light

1шт.

8

87694112

ELEC CONNECTOR,Female, 6 Pole

6 Way Module

1шт.

Выбрано товаров: 10
