Запчасти Case IH 500 (55.422.AI[03]) - HARNESS FLOW WINGS 18 ROW (55) - ELECTRICAL SYSTEMS

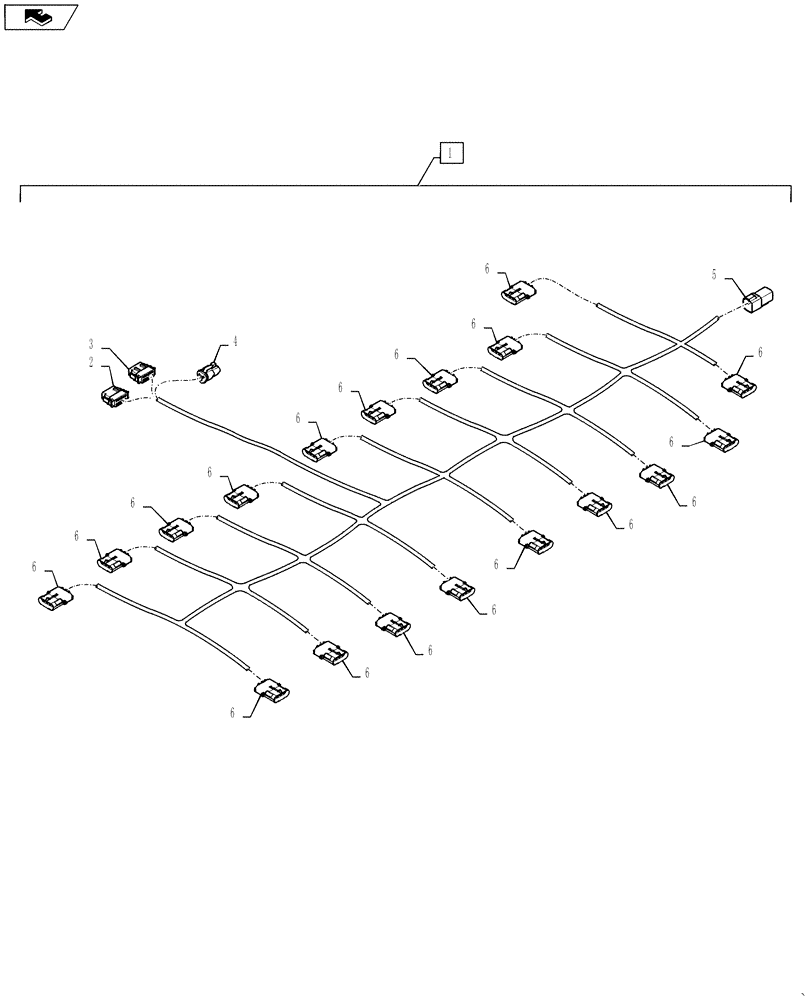

Схема запчастей Case IH 500 - (55.422.AI[03]) - HARNESS FLOW WINGS 18 ROW (55) - ELECTRICAL SYSTEMS
3
6
6
6
5
6
6
1
6
6
6
6
6
6
6
6
6
home
6
2
6
4
6
6

Артикул

Название

Примечание

Количество

1

84562572

WIRE HARNESS

Flow Wing 18 Row Incl 2 - 6

1шт.

2

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

12 Way Module B

1шт.

3

87700156

CONTACT HOUSING,Female, 12 Pole

12 Way Module A

1шт.

4

87695549

ELEC CONNECTOR,Female, 3 Cavities

3 Way CAN2 Terminator

1шт.

5

87700105

ELEC CONNECTOR

4 Way Wing

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W1

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W2

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W3

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W4

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W5

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W6

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W7

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W8

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W9

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W10

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W11

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W12

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W13

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W14

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W15

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W16

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W17

1шт.

6

87692858

ELEC CONNECTOR,Male

3 Way Row W18

1шт.

Выбрано товаров: 23
