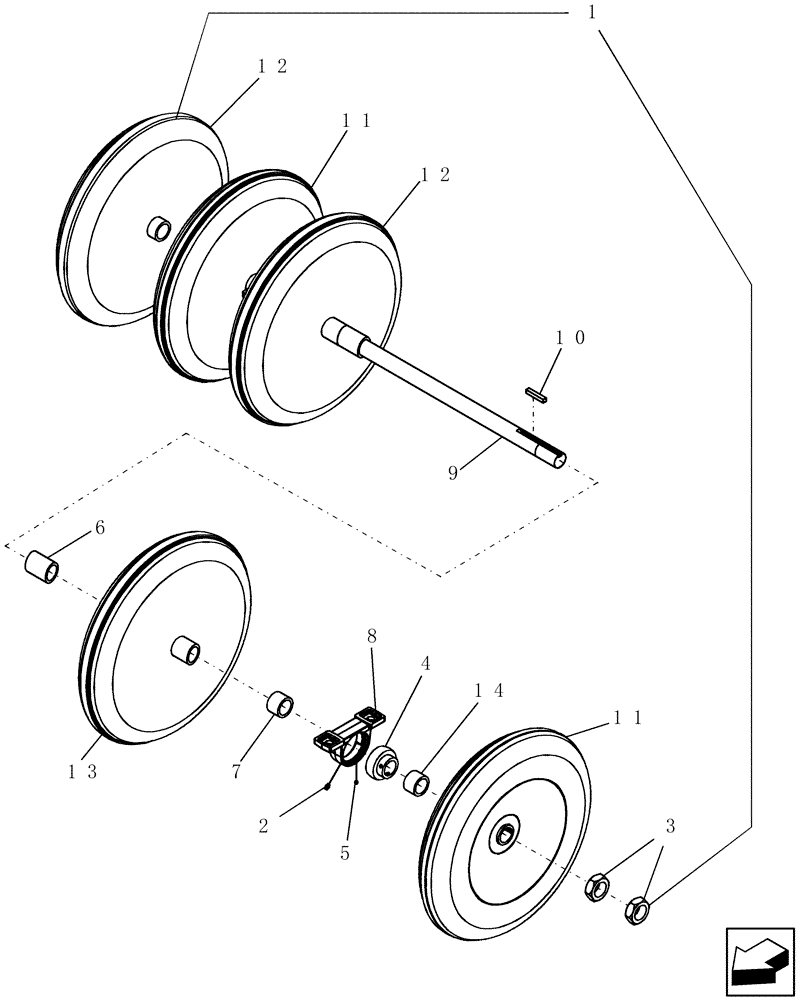

Запчасти Case IH 400 (75.200.24) - PACKER GANG ASSY 10" SPACING, 5 STEEL WHEELS (75) - SOIL PREPARATION

1

87450351

WHEEL ASSY

gang 251 mm spc 5 x 3 1/2"

1шт.

Shown

1шт.

1

87450353

WHEEL ASSY

gang 251 mm spc 5 x 4 1/2"

1шт.

Not Shown

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

4шт.

3

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12 G5

4шт.

4

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

2шт.

5

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

2шт.

6

87450343

SPACER

67 mm slant cut

2шт.

7

87450345

SPACER

35.5 mm straight cut

2шт.

7

87450347

SPACER

10.5 mm straight cut

2шт.

Used with 87450353

1шт.

7

87450349

SPACER

22 mm straight cut

2шт.

Used with 87450353

1шт.

8

87502149

BEARING HOUSING

pillow block

2шт.

8

DR-004K

BEARING

kit packer - heavy duty triple lip seal

1шт.

Includes two bearings and four machine bushings to do one gang frame assembly

1шт.

9

DC-443

SHAFT

gang 43 7/8" long

1шт.

9

87450373

SHAFT

gang 45 7/8" long

1шт.

Used with 87450353

1шт.

10

DR-575

KEY

3/8" sq x 2 1/4" long

2шт.

11

DR-912

WHEEL,538.16mm OD x 88.9mm W

press 3 1/2" wide end ( !! ) spool

2шт.

11

DS-401

WHEEL

press 4 1/2" steel end ( !! ) spool

2шт.

Used with 87450353

1шт.

12

DR-918

WHEEL

press 3 1/2" wide bearing ( /! ) spool

2шт.

12

DS-403

WHEEL

press 4 1/2" steel bearing ( /! ) spool

1шт.

Used with 87450353

1шт.

13

DR-926

WHEEL

press 3 1/2" wide standard ( // ) spool

1шт.

13

DS-400

WHEEL,552.45mm OD x 114.3mm W

press 4 1/2" steel standard ( // ) spool

1шт.

Used with 87450353

1шт.

14

DS-301

SPACER

press wheel 1 5/16" ( !! )

2шт.

100

DR-275KV2

KIT

3 1/2" press wheel recap bolt on

1шт.

Refer to 75.200.44

1шт.

Used on gang assemblies with 3.5" Press Wheels

1шт.
