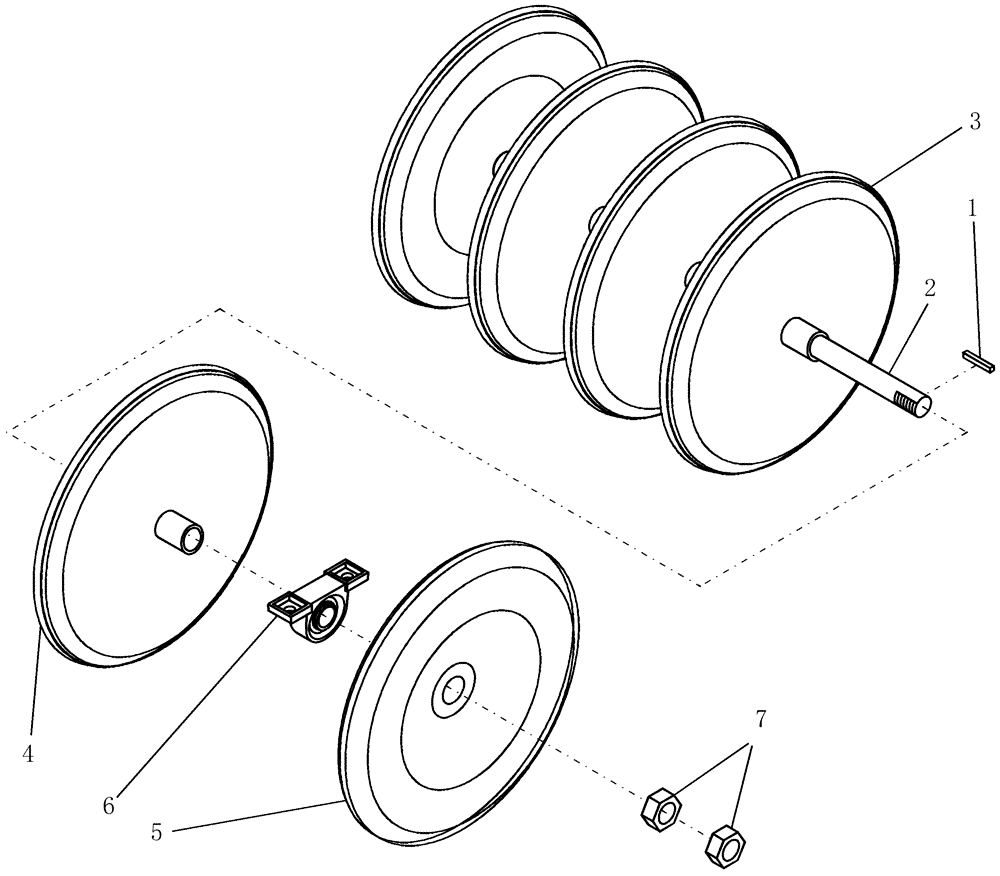

Запчасти Case IH 400 (75.200.20) - PACKER GANG ASSY 7.2" SPACING, 6 STEEL WHEELS (75) - SOIL PREPARATION

0

DR-926A

WHEEL ASSY

gang 7 3/16" spacing 6" x 3 1/2" steel

1шт.

1

DR-575

KEY

3/8" sq x 2 1/4" long

2шт.

2

DR-524

SHAFT

gang 39 7/8" long

1шт.

3

DR-926

WHEEL

press 3 1/2" wide standard ( // ) spool

2шт.

4

DR-918

WHEEL

press 3 1/2" wide bearing ( /! ) spool

2шт.

5

DR-912

WHEEL,538.16mm OD x 88.9mm W

press 3 1/2" wide end ( !! ) spool

2шт.

6

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

87502149

BEARING HOUSING

pillow block

2шт.

6

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

2шт.

6

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

2шт.

6

DR-004K

BEARING

kit packer - heavy duty triple lip seal

1шт.

Includes two bearings and four machine bushings to do one gang frame assembly

1шт.

7

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12

4шт.

8

DR-275KV2

KIT

3 1/2" press wheel recap bolt on

1шт.

Refer to 75.200.44

1шт.

Used on gang assemblies with 3.5" Press Wheels

1шт.
