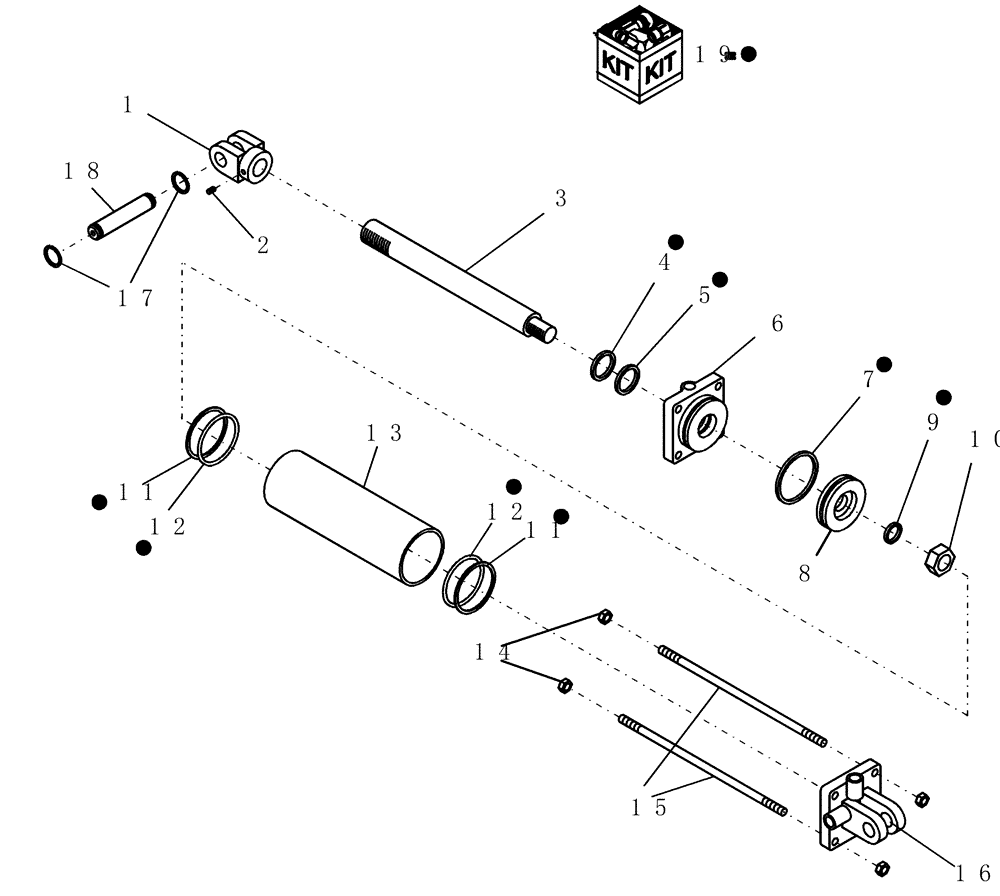

Запчасти Case IH 400 (75.200.08) - END MARKER 2" X 12" HYDRAULIC CYLINDER (75) - SOIL PREPARATION

0

87500855

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 304.8mm Stroke

2" x 12" Monarch 2500 psi without pins

1шт.

1

87449358

CLEVIS

cylinder 1" pin Monarch 1 1/8"-12 rod

1шт.

2

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

3

439279A1

PISTON ROD

2 1/2" x 12" Monarch

1шт.

2a

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

6

8178

CAP

cylinder rod end 2" dia x 1 1/8" shaft

1шт.

8

3977

PISTON

cylinder, 2 Monarch #492430

1шт.

10

425038A1

NUT

cylinder piston 3/4"-16, GA

1шт.

13

2684

HYD TUBE

cylinder, 2" x 12" Monarch

1шт.

14

9628503

NUT,3/8"-16, G5

1шт.

15

8181

TIE-ROD

threaded cylinder 3/8" x 12"

1шт.

16

8177

CLEVIS

cylinder end 2" dia

1шт.

17

136-62

HAIR PIN COTTER

external 3/4" id x 2"

4шт.

18

1945

PIN

cylinder, 1 x 3 ul snap ring grv

2шт.

19

8179

SEAL KIT

2d & 1 1/8" rod Monarch #639572

1шт.
