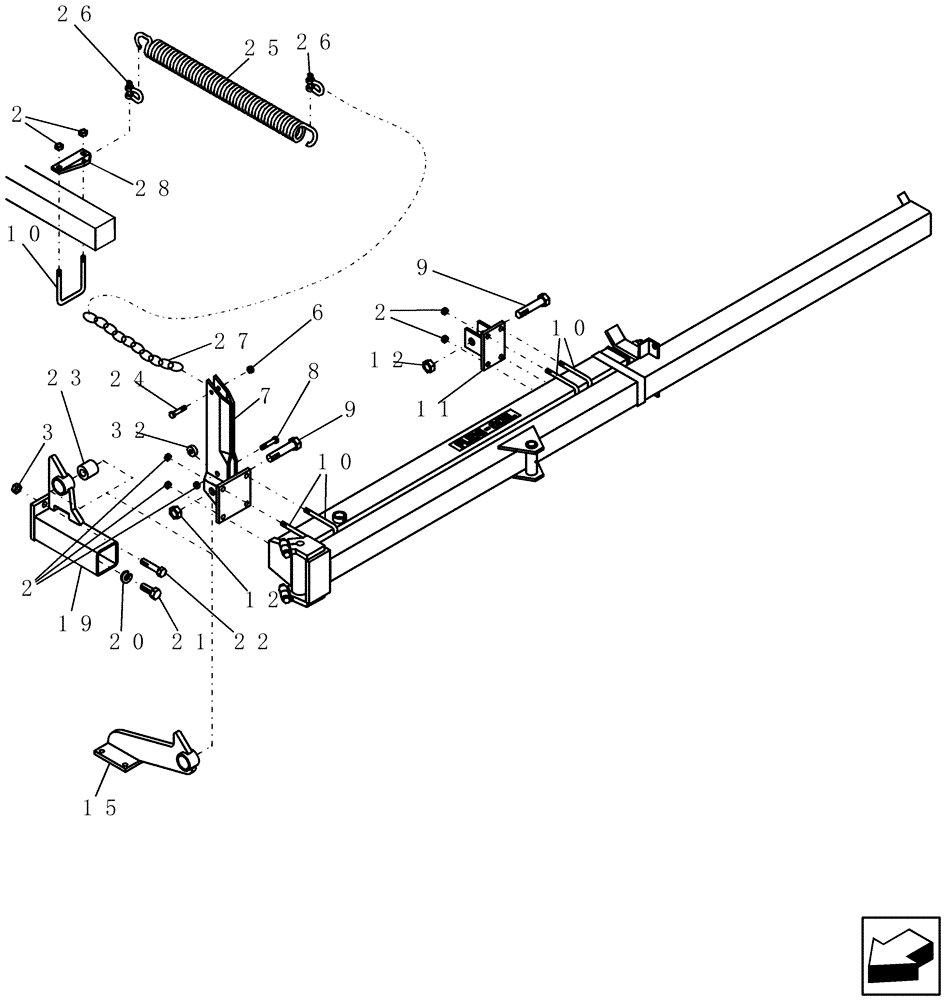

Запчасти Case IH 400 (75.200.04) - END MARKER MOUNT BRACKETS (75) - SOIL PREPARATION

2

85700693

NUT,5/8" - 11, Gr C

7шт.

3

280375

NUT,3/4"-10, GC

1шт.

6

86992215

LOCK NUT,1/2"-13, GC

1шт.

7

DR-458

BRACKET

counterbalance mount

1шт.

8

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

9

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

10

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

5шт.

11

DR-455

BRACKET

female endmarker mount

1шт.

12

280286

NUT,1"-8, GB

2шт.

15

DR-468

BRACKET

mount, endmarker

1шт.

19

DR-771

EXTENSION

endmarker mount

1шт.

20

87341

LOCK WASHER,7/8"

1шт.

21

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

1шт.

22

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.

23

CA-112

BUSHING,25.4mm ID x 50.8mm OD x 50.8mm L

1 1/32" id x 2" od x 2" long - poly

1шт.

24

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

25

87505301

TENSION SPRING

.406 x 2 3/8" x 28 1/2"

1шт.

26

432618A1

SHACKLE

7/16" body

2шт.

27

7149

CHAIN

lk 5/16" x 21 15/64" gr70 11 link, Years: -01-JUL-08

1шт.

27

87740395

CHAIN LINK

5/16" x 22.2 12 lk, Start Year: 01-JUL-08

1шт.

28

DR-454

ANCHOR

counter balance

1шт.

32

NW-548

SPACER

1 3/4" od x 5/8" id x 5/8" long

1шт.
