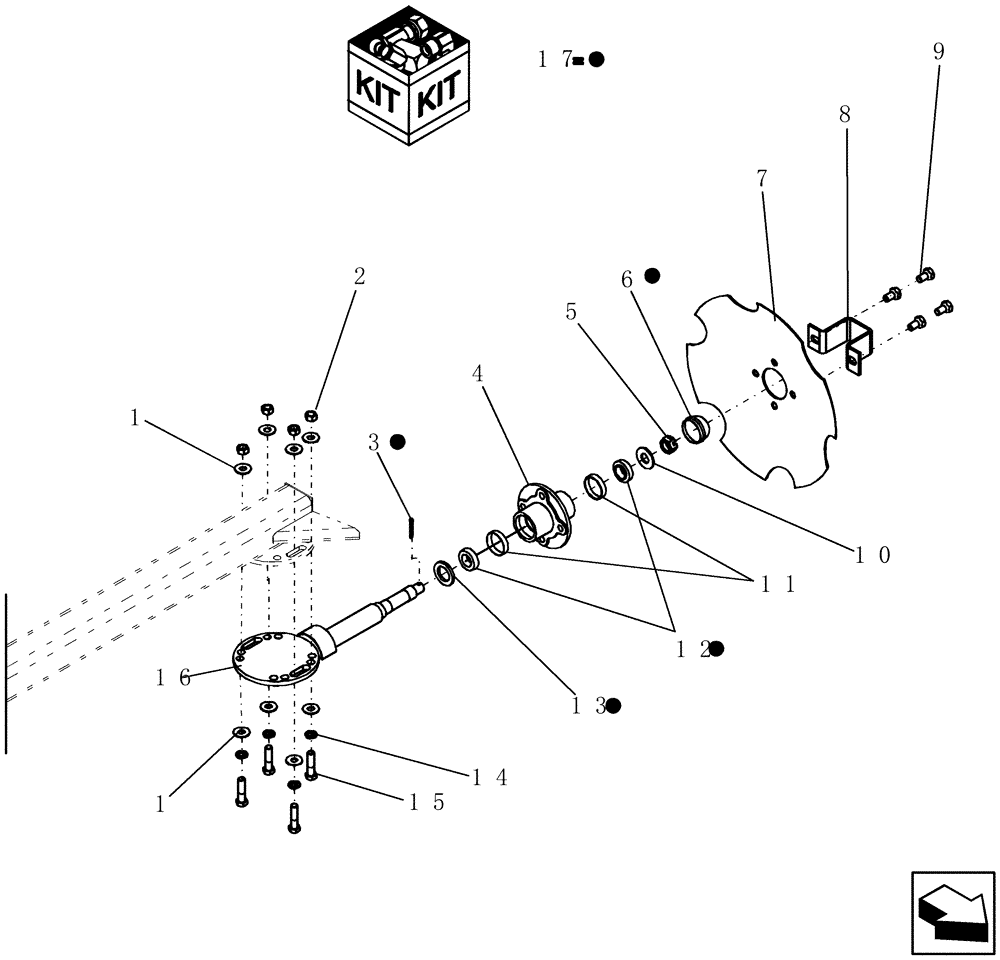

Запчасти Case IH 400 (75.200.03) - END MARKER SPINDLE, HUB, AND DISC (75) - SOIL PREPARATION

1

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

2

280431

NUT,1/2"-13, G5

4шт.

3

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

4

87412999

HUB

H211 assembly with cups and bolts

1шт.

Includes four 23516 and two 1581

1шт.

5

88886

SLOTTED NUT,3/4"-16

1шт.

6

9702386

DUST CAP

hub H211

1шт.

7

432620A1

DISC

notched 16" concave

1шт.

8

87410960

GUARD

dust cap, endmarker

1шт.

9

1013597

WHEEL BOLT

wheel 1/2" -20 G5

4шт.

10

86012106

WASHER

spindle wa10 .75 id

1шт.

11

132709

BEARING CUP,50.29mm OD x 10.67mm W

#L44610

2шт.

12

132710

BEARING CONE,25.4mm ID x 14.73mm W

TM#L44643

2шт.

13

432625A1

OIL SEAL

SE10

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

15

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

16

DR-747

SPINDLE

endmarker

1шт.

Includes 1586 and 1589

1шт.

17

6211

WHEEL BEARING KIT

completion - h211

1шт.

Includes two 1582, 1583, 23428 and 2039

1шт.
