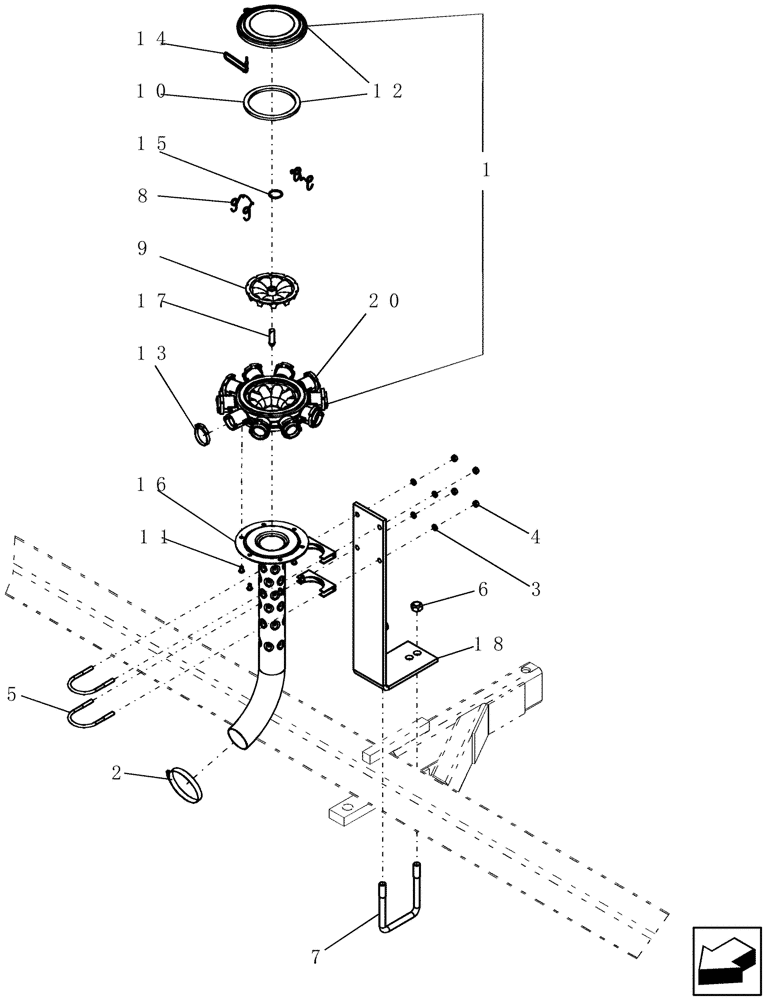

Запчасти Case IH 400 (75.100.01) - EZ FLOW HEADER MOUNTS (75) - SOIL PREPARATION

1

GP-107SV1

KIT

header 7 port ez flow

1шт.

Includes GP-107, 22323, GP-253, three 21746, six 260-5478, 22104, seven 22394, 419998A1 and 22602

1шт.

1

GP-108SV1

KIT

header 8 port ez flow

1шт.

Includes GP-108, 22070, GP-253, three 21746, six 260-5478, 22104, eight 22394, 419998A1 and 22602

1шт.

1

GP-109SV1

KIT

header 9 port ez flow

1шт.

Includes GP-109, 22071, GP-253, three 21746, six 260-5478, 22104, nine 22394, 419998A1 and 22602

1шт.

1

GP-110SV1

KIT

header 10 port ez flow

1шт.

Includes GP-110, 21749, GP-253, two 21746, six 260-5478, 22104, ten 22394, 419998A1 and 22602

1шт.

1

GP-111SV1

KIT

header 11 port ez flow

1шт.

Includes GP-111, 22072, GP-253, three 21746, six 260-5478, 22104, eleven 22394, 419998A1 and 22602

1шт.

1

GP-112SV1

KIT

header 12 port ez flow

1шт.

Includes GP-112, 22073, GP-253, two 21746, six 260-5478, 22104, twelve 22394, 419998A1 and 22602

1шт.

2

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

3

80681

LOCK WASHER,5/16"

4шт.

4

9635082

NUT,5/16" - 18, Gr 5

4шт.

5

1824

CLAMP

muffler, 2 1/2"

2шт.

6

85700693

NUT,5/8" - 11, Gr C

2шт.

7

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

8

21746

CIRCLIP

lid ez flow header

2шт.

9

22323

INSERT

header 7 port

1шт.

9

412922A1

INSERT

header 8 port

1шт.

9

22071

INSERT

header 9 port

1шт.

9

21749

INSERT

header 10 port

1шт.

9

432590A1

INSERT

header 11 port

1шт.

9

22073

INSERT

header 12 port

1шт.

10

21754

GASKET

lid - 5 3/8" od x 7/16" w x 1/4" thick

1шт.

11

187-845

SELF-TAP SCREW,Slotted Rd Hd, 1/4" x 1/2"

6шт.

12

22104

LID

ez flow header with seal

1шт.

13

22394

CLAMP

hose nylon - 1 3/64" to 1 23/32" id

10шт.

14

419998A1

CABLE

estane header securing

1шт.

15

22602

SPECIAL RING

1 1/16" id

1шт.

16

GP-103

ELBOW

secondary standard

1шт.

16

GP-102

STAND

elbow secondary high abrasion

1шт.

17

GP-253

INSERT

nose header

1шт.

18

VF-535

STAND

header - long

1шт.

18

VF-530

STAND

header - short

1шт.

20

GP-107

INSERT

header 7 port ez flow glued

1шт.

20

GP-108

INSERT

header 8 port ez flow glued

1шт.

20

GP-109

INSERT

header 9 port ez flow glued

1шт.

20

GP-110

INSERT

header 10 port ez flow glued

1шт.

20

GP-111

INSERT

header 11 port ez flow glued

1шт.

20

GP-112

INSERT

header 12 port ez flow glued

1шт.

21

87458502

SENSOR

Optical Flow

1шт.

100

86992913

HOSE

1" Polyback 9% EVA, Order in Multiples of 100 Feet

1шт.

Not Shown

1шт.

100

86993485

HOSE,1.00" ID

Flex Black

1шт.

For 7, 8, 9, 10, 11 and 12 Ports

1шт.

100

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

Not Shown

1шт.
