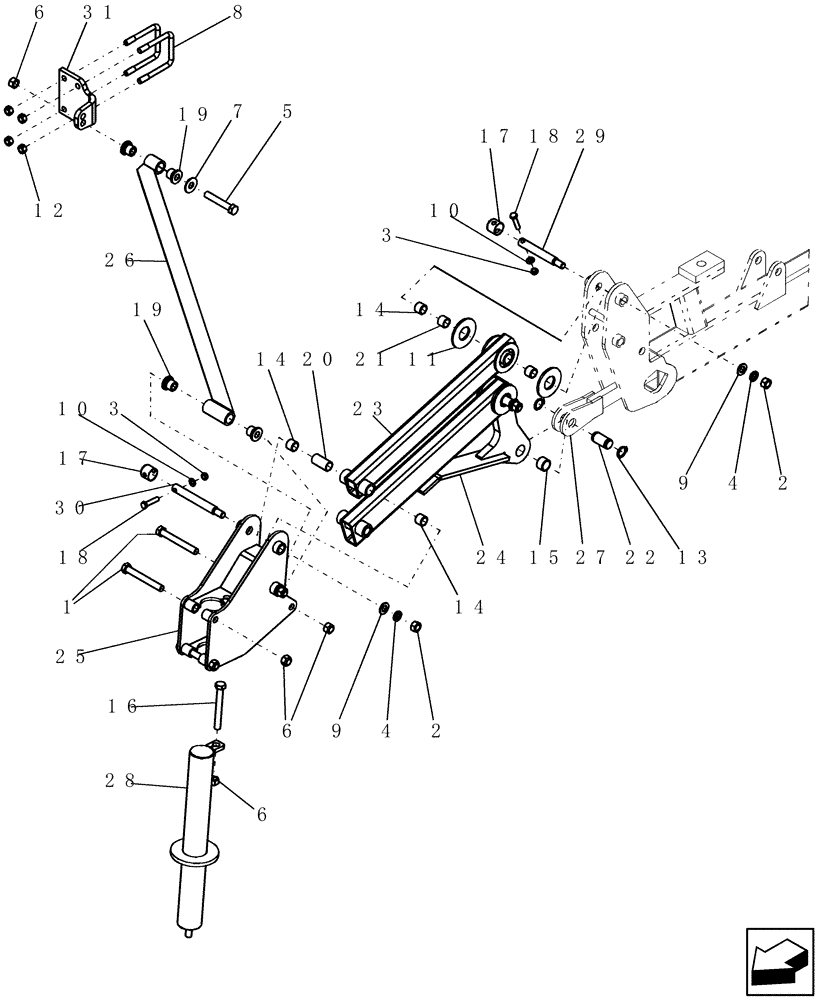

Запчасти Case IH 400 (44.100.09) - WING DUAL CASTER ASSEMBLY - TOP (44) - WHEELS

1

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

3шт.

2

280954

NUT,3/4"-10, G5

4шт.

3

86992215

LOCK NUT,1/2"-13, GC

4шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

5

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

6

280375

NUT,3/4"-10, GC

5шт.

7

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

8

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

2шт.

9

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

10

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

4шт.

11

6316

DISC

nylon light caster 4" od x 1 25/32" id x 1/4" thick

4шт.

12

85700693

NUT,5/8" - 11, Gr C

4шт.

13

86625148

SNAP RING,#125, Ext

2шт.

14

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

8шт.

15

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

1шт.

16

21478

BOLT,Hex, 3/4" - 10 x 6", Gr 5, Full Thd

1шт.

17

87418616

CAP

vinyl 38 x 35 lg black

4шт.

18

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

4шт.

19

CA-189

BUSHING

stepped - 3/4" id

4шт.

20

DR-707

SPACER

1 1/4" od x 3/32" thick x 2 7/16" long

2шт.

21

DR-712

SPACER,25.78mm ID x 31.37mm OD x 23.82mm L

plastic 1 1/4" od x 3/32" thick x 15/16" long

2шт.

22

DR-815

PIN

floating control link - 1 1/4" x 1 7/8"

1шт.

23

DR-346A

ARM

assembly, parallel upper wing

1шт.

Includes four 6635, DR-707 and DR-712

1шт.

24

DR-348A

ARM

assembly, parallel lower light

1шт.

Includes four 6635, 6636, DR-707 and DR-712

1шт.

25

87500151

HOUSING

adjustment

1шт.

26

87589455

SUPPORT

arm wing dual caster

1шт.

27

87500123

CONTROL

link (1 1/4" pins)

1шт.

28

87435837

SHAFT

caster

1шт.

29

87420518

PIN,25.4mm OD x 215mm L

1 X 6.25 X W .75

2шт.

30

87420518

PIN,25.4mm OD x 215mm L

caster pivot

2шт.

31

DS-243V2

BRACKET

mount, caster brace

1шт.
