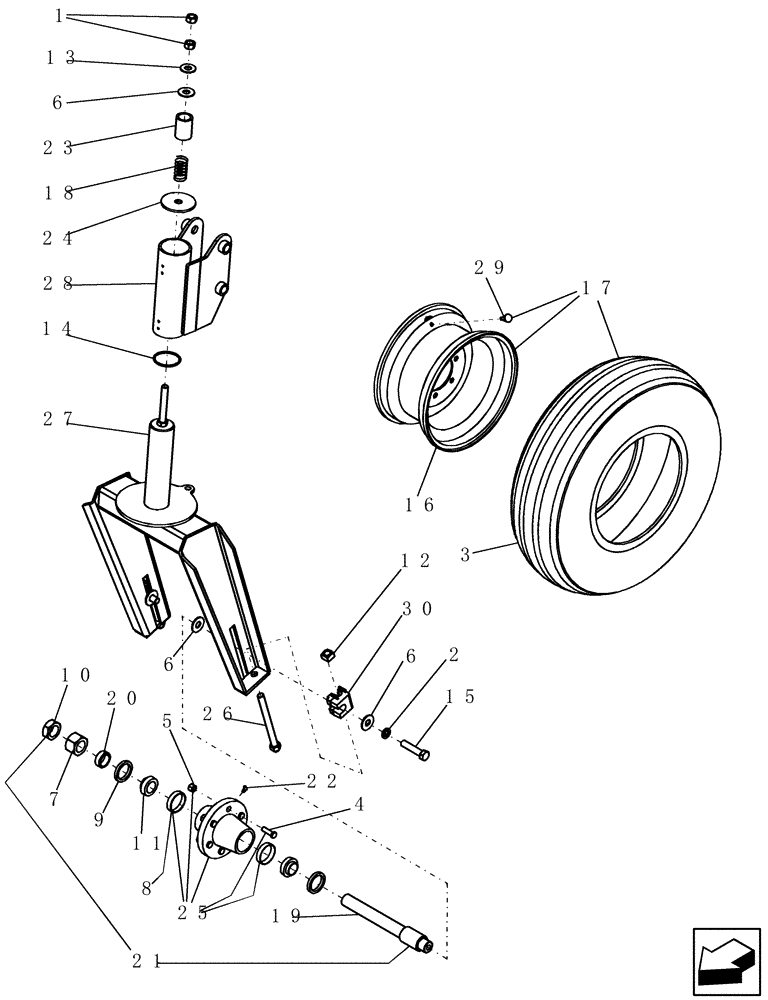

Запчасти Case IH 400 (44.100.08) - LIGHT SINGLE CASTER ASSEMBLY - BOTTOM (44) - WHEELS

1

280954

NUT,3/4"-10, G5

2шт.

2

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

3

1980928C1

TYRE/TIRE

9.5l-15sl 8pr

1шт.

Purchase Locally

1шт.

4

1662

BOLT

stud 1/2"-20 G5 wb16

6шт.

5

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.

6

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

5шт.

7

425-1024

NUT,1 1/2"-6, G5

1шт.

8

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

9

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

SE24

2шт.

10

8337

JAM NUT

jam 1 1/2"-6

1шт.

11

72012

BEARING CONE

#LM13686

2шт.

12

5878

SQUARE NUT

square 3/4"

2шт.

13

87326968

WASHER,0.81" ID x 1.88" OD x 0.11" Thk

brass 13/16" id 1 5/64" 7/64"

1шт.

14

6139

O-RING,2.625" ID x 3" OD x 0.188"

2 5/8" id 3" od 3/16"

1шт.

15

86508733

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

2шт.

16

A57879

RIM

15X8 6 hole with VG +1 1/8" offset

1шт.

17

87504815

WHEEL ASSY

15X8 6 hole with 9.5L-15SL 8P +1 1/8" offset

1шт.

Includes 87505456, 87504814 and 84203972

1шт.

18

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

18

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

19

GD-161

SPINDLE

caster wheel

1шт.

20

GD-162

SPACER

tube wheel spindle

1шт.

21

GD-161A

HUB

and spindle assembly H617-14.44" long, thru hub

1шт.

22

87414

LUBE NIPPLE,1/4" - 28

1шт.

23

ND-949

SLEEVE,38.1mm ID x 69.85mm L

hose spring

1шт.

24

ND-951

CAP

caster

1шт.

25

87505491

HUB

H617-1 assembly with cups and studs and nuts

1шт.

Includes six 1662, six F23214 and two 453012R1

1шт.

25

6617

WHEEL BEARING KIT

completion - h617

1шт.

Includes two 4782 and two 432617A1

1шт.

26

87310714

BOLT

3/4"-10 x 9" G5, Full thread

2шт.

27

ND-902

FRAME

caster with 9" adjustment

2шт.

28

87500148

HOUSING

pivot c/w brake

1шт.

Includes two 5738, two 492-11025, two 280640, two 80714, ND-485, two 5884, two 492-11038, two 425-106, 6566 and 22903

1шт.

29

84203972

TIRE TUBE

15/9.5L-15SL/R15

1шт.

30

87506258

MOUNTING PARTS

caster wheel spindle

2шт.
