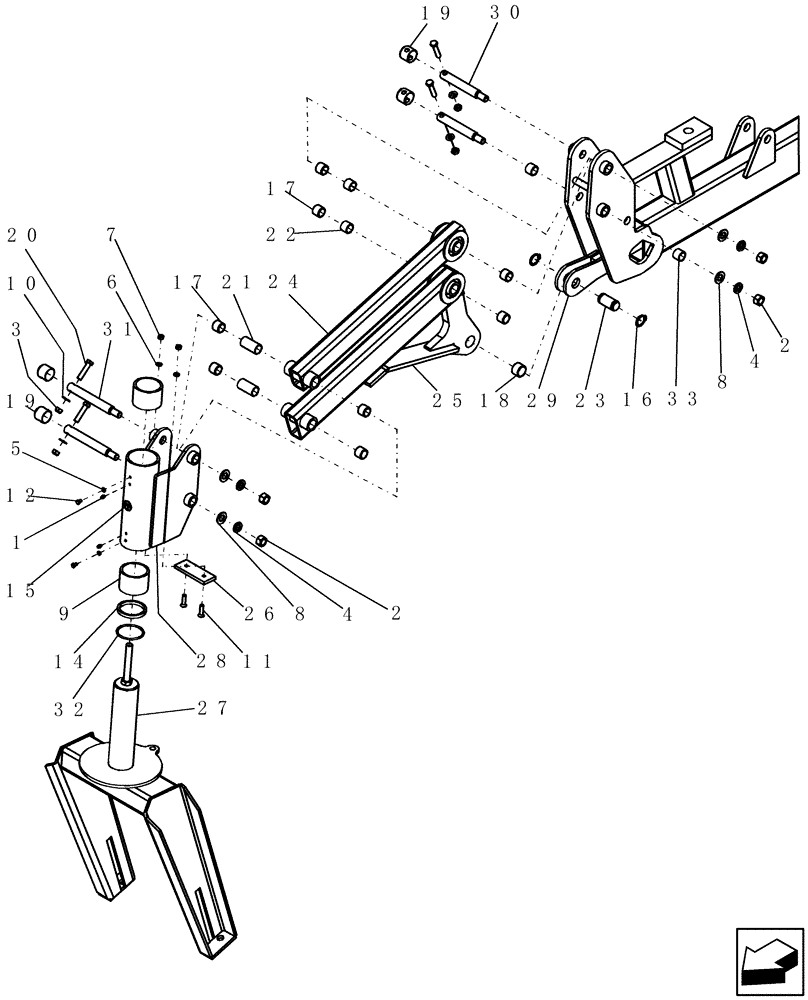

Запчасти Case IH 400 (44.100.07) - LIGHT SINGLE CASTER ASSEMBLY - TOP (44) - WHEELS

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

280954

NUT,3/4"-10, G5

4шт.

3

86992215

LOCK NUT,1/2"-13, GC

4шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

5

80682

LOCK WASHER,1/4"

2шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

7

9628503

NUT,3/8"-16, G5

2шт.

8

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

9

87501820

BUSHING,76.2mm ID x 88.9mm OD x 63.5mm L

Nylatron* 3 1/2" x 3" x 2 1/2" long

2шт.

10

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

4шт.

11

5884

SCREW

cap 3/8"-16 x 1 1/2" blk fh

2шт.

12

80280640

BOLT

1/4"-20 x 1/2" G5

2шт.

14

6417

SEAL

3" id x 3 1/2" od x 3/8" thick

1шт.

15

6566

DECAL

grease 50 hours

1шт.

16

86625148

SNAP RING,#125, Ext

2шт.

17

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

8шт.

18

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

1шт.

19

87418616

CAP

vinyl 38 x 35 lg black

4шт.

20

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

4шт.

21

DR-707

SPACER

1 1/4" od x 3/32" thick x 2 7/16" long

2шт.

22

DR-712

SPACER,25.78mm ID x 31.37mm OD x 23.82mm L

plastic 1 1/4" od x 3/32" thick x 15/16" long

2шт.

23

DR-815

PIN

floating control link - 1 1/4" x 1 7/8"

1шт.

24

DR-346A

ARM

assembly, parallel upper wing

1шт.

Includes four 6635, DR-707 and DR-712

1шт.

25

DR-348A

ARM

assembly, parallel lower light

1шт.

Includes four 6635, 6636, DR-707 and DR-712

1шт.

26

ND-485

BRAKE PAD

caster pivot

1шт.

27

ND-902

FRAME

caster with 9" adjustment

1шт.

28

87500148

HOUSING

pivot c/w brake

1шт.

Includes two 5738, two 492-11025, two 280640, two 80714, ND-485, two 5884, two 492-11038, two 425-106, 6566 and 22903

1шт.

29

87500123

CONTROL

link (1 1/4" pins)

1шт.

30

87420521

PIN,25.4mm OD x 188mm L

1 X 6.25 X W .75

2шт.

31

87420518

PIN,25.4mm OD x 215mm L

caster pivot

2шт.

32

6139

O-RING,2.625" ID x 3" OD x 0.188"

2 5/8" id 3" od 3/16"

1шт.

33

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

4шт.
