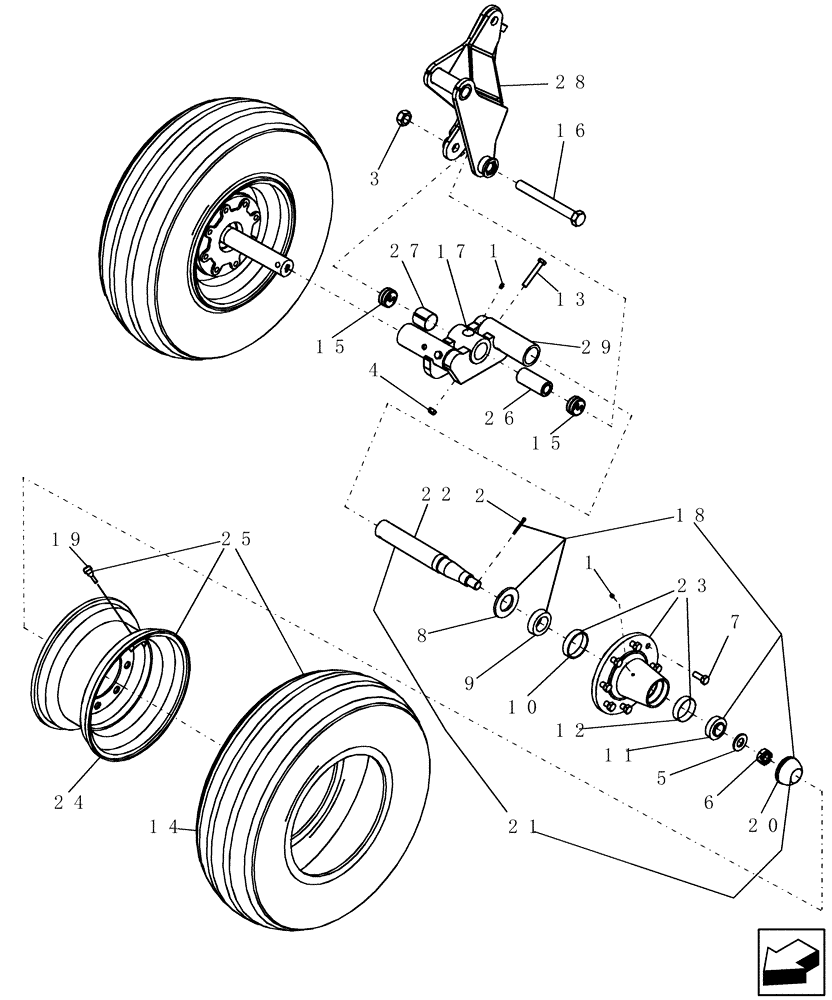

Запчасти Case IH 400 (44.100.02) - REAR WALKBEAM, 8 BOLT HUB AND SPINDLE, CENTER SECTION - 51 AND 57 INTERROW MODELS (44) - WHEELS

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

3

280286

NUT,1"-8, GB

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

2шт.

5

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

1шт.

6

86020752

SLOTTED NUT

1"-14, G5

1шт.

7

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

8шт.

8

491715R91

OIL SEAL

oil SE16

1шт.

9

512725

BEARING CONE,45.62mm ID x 25.4mm W

#25590

1шт.

10

86900365

BEARING CUP,82.96mm OD x 19.05mm W

#25520

1шт.

11

86516471

BEARING CONE,34.92mm ID x 24.61mm W

#25877

1шт.

12

86516462

BEARING CUP,73.03mm OD x 19.05mm W

#25821

1шт.

13

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

14

400602A1

TYRE/TIRE

11l x 15 fi - f load range

2шт.

15

6366

BUSHING

tension 2" x 1 3/4" x 1"

2шт.

16

281055

BOLT,Hex, 1" - 8 x 9", Gr 5

1шт.

17

6565

DECAL

grease 10 hours

1шт.

18

6811

WHEEL BEARING KIT

completion - h811

1шт.

Includes 432-1224, 1674, 300426R91, 560953R91 and 419963A1

1шт.

19

22802

VALVE

stem tire tr/801 hp

2шт.

20

87505192

HUB CAP

dc17

1шт.

21

87443628

HUB

spindle assy h811-15.156lg

1шт.

22

87443690

SPINDLE

s811- 2 x 15.16 sp c/w nut & washer

1шт.

23

87505495

HUB

H811-3 assembly with cups and zerk hole

1шт.

Includes 87033793, 165964R1 and eight 1020701

1шт.

24

87505453

RIM

15" x 8" 8 hole heavy - 1 1/2" offset

2шт.

25

CC-172A

WHEEL ASSY

15 x 8 8h with 11l-15fi f

2шт.

26

87420398

CARRIER

spool hard walk beam

1шт.

26

DR-871K

KIT

Carrier Spool Upgrade

1шт.

Includes 87420398, DR-872, two 6366, 6436, 1408 and DR-497.27

1шт.

27

DR-872

SPACER

walking beam 2" od x 1 7/8" long

1шт.

28

87444878

ROCKER ARM

lift assist left

1шт.

Shown

1шт.

28.1

87444877

ROCKER ARM

lift assist right

1шт.

Not Shown

1шт.

29

87444874

BEAM

walking left

1шт.

Shown

1шт.

29.1

87444873

BEAM

walking right

1шт.

Not Shown

1шт.
