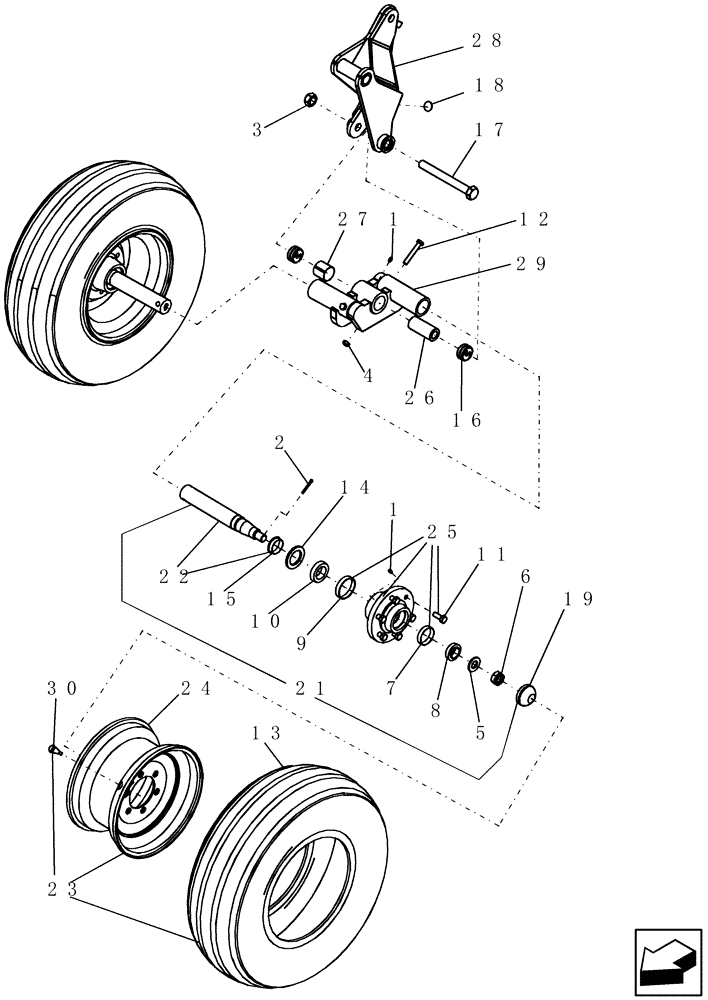

Запчасти Case IH 400 (44.100.01) - REAR WALKBEAM, 6 BOLT HUB AND SPINDLE, CENTER SECTION (44) - WHEELS

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

3

280286

NUT,1"-8, GB

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

2шт.

5

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

1шт.

6

86020752

SLOTTED NUT

1"-14, G5

1шт.

7

86516467

BEARING CUP,65.08mm OD x 13.97mm W

#LM48510

1шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

#LM48548

1шт.

9

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

10

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

11

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

6шт.

12

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

13

3474

TYRE/TIRE

11l x 15 fi - d load range

2шт.

27', 33', 39' and 45' models

1шт.

13

5937

TYRE/TIRE

9.5l x 15 fi - d load range

2шт.

51' and 57' models

1шт.

14

3685

OIL SEAL

triple lip - h615 hub

1шт.

15

51200202

SLEEVE

wear, spindle S614/S811

1шт.

16

6366

BUSHING

tension 2" x 1 3/4" x 1"

2шт.

17

281055

BOLT,Hex, 1" - 8 x 9", Gr 5

1шт.

18

6565

DECAL

grease 10 hours

1шт.

19

51200086

HUB CAP

dc15 h614

1шт.

21

87444631

HUB

spindle assy h615-14.5 lg

1шт.

22

87444632

SPINDLE

c/w wearsleeve 2 x 14.5 sp

1шт.

Includes nut and washer and wear sleeve

1шт.

23

87505471

WHEEL ASSY

15 x 8 6h with 9.5l-15fi d

2шт.

27', 33', 39' and 45' models

1шт.

Includes 5937, A57879 and 196033

1шт.

23

87505470

WHEEL ASSY

15" x 8" 6h with 11l-15fi d

2шт.

Includes 3474, A57879 and 196033

1шт.

51' and 57' models

1шт.

24

A57879

RIM

15X8 6 hole with VG +1 1/8" offset

2шт.

25

87505492

HUB

H615-1 assembly with cups and bolts

1шт.

Includes hub, cups and wheel bolts

1шт.

Includes 618024R1, 619387R1 and six 1673

1шт.

26

87420398

CARRIER

spool hard walk beam

1шт.

26

DR-871K

KIT

Carrier Spool Upgrade

1шт.

Includes 87420398, DR-872, two 6366, 6436, 1408 and DR-497.27

1шт.

27

DR-872

SPACER

walking beam 2" od x 1 7/8" long

1шт.

28

87444878

ROCKER ARM

lift assist left

1шт.

Shown

1шт.

28

87444877

ROCKER ARM

lift assist right

1шт.

Not Shown

1шт.

29

87444874

BEAM

walking left

1шт.

Shown

1шт.

29

87444873

BEAM

walking right

1шт.

Not Shown

1шт.

30

196033

VALVE STEM

tr/415

2шт.

100

6615

WHEEL BEARING KIT

completion - H615

1шт.

Includes 432-1224, 618023R91, 67527, 51200086 and 3685

1шт.

Not Shown

1шт.
