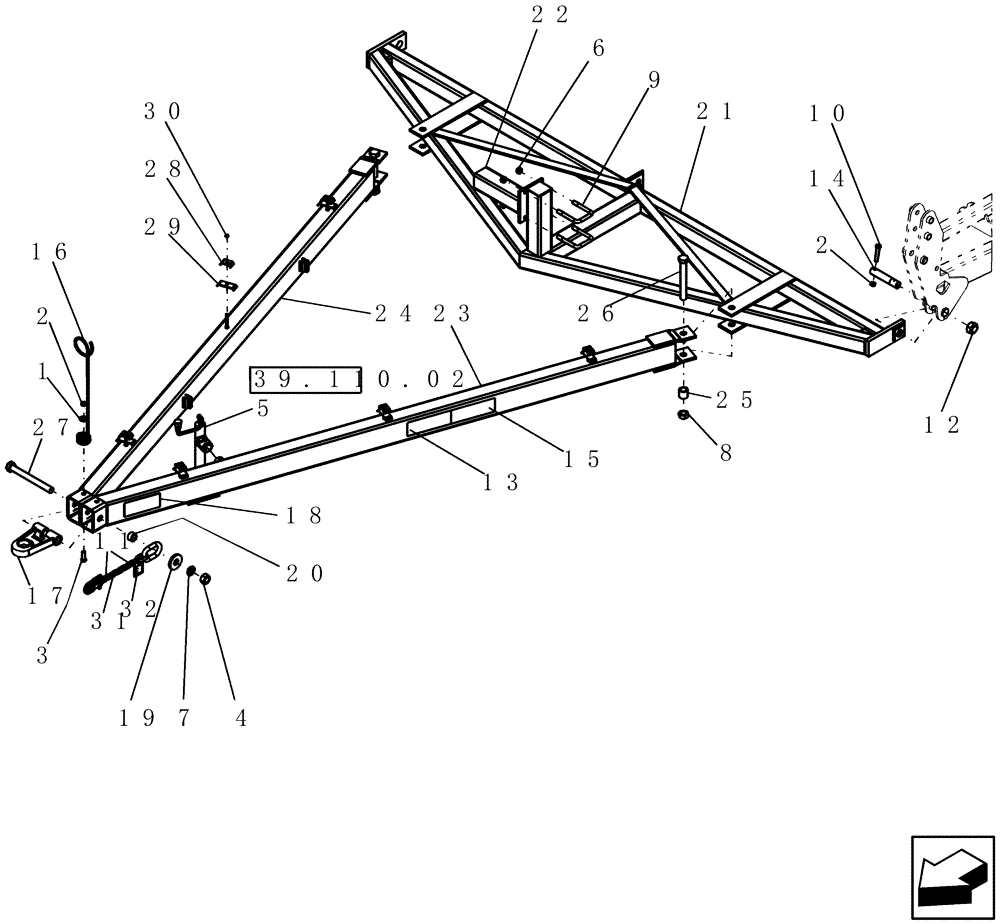

Запчасти Case IH 400 (39.110.01) - FRONT HITCH (39) - FRAMES AND BALLASTING

1

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

2

85700693

NUT,5/8" - 11, Gr C

2шт.

3

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

4

9849649

NUT,1 1/4"-7, G5

1шт.

5

1016961

JACK

2000 lb x 15"

1шт.

Refer to 39.110.02

1шт.

6

280375

NUT,3/4"-10, GC

4шт.

7

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

8

86609684

NUT,1 1/4"-7, GB

2шт.

9

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

2шт.

10

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

1шт.

11

63506C3

CHAIN (AG)

20,200 lb safety

1шт.

27' models

1шт.

11

PCC8607191

CHAIN

30,400 lb safety

1шт.

33' and 39' models

1шт.

11

GR-457A

CHAIN (AG)

assembly, safety 60,600 lb

1шт.

45', 51' and 57' models

1шт.

Includes 447759A1 and 450057A1

1шт.

12

87323803

LOCK NUT

1 1/2"-12, GC

1шт.

14

87420522

PIN

1 1/2" x 4" hardened

1шт.

15

87643148

DECAL

Flex Hoe 400 LH

1шт.

15

87643149

DECAL

Flex Hoe 400 RH

1шт.

Not Shown

1шт.

16

87506300

HOLDER

spring, hydraulic hose

1шт.

17

87506259

TONGUE

hitch

1шт.

18

GD-500.77RU

CAUTION DECAL

hydraulics Russian

1шт.

18

425206A1

CAUTION DECAL

hydraulics French

1шт.

18

GD-500.77

CAUTION DECAL

hydraulics

1шт.

19

ND-585

WASHER

safety chain

1шт.

20

ND-586

SPACER

safety chain

1шт.

21

87500156

HITCH

c-section / truss

1шт.

22

87500957

CLAMP

on stub 4" x 14" lg

1шт.

23

87473285

HITCH

short left

1шт.

Includes decals

1шт.

27', 33' and 39' models

1шт.

Shown

1шт.

23

87472923

HITCH

long left

1шт.

45', 51' and 57' models

1шт.

Includes decals

1шт.

Not Shown

1шт.

24

87491117

HITCH

short right

1шт.

Includes decals

1шт.

27', 33' and 39' models

1шт.

Shown

1шт.

24

87474272

HITCH

long right

1шт.

45', 51' and 57' models

1шт.

Includes decals

1шт.

Not Shown

1шт.

25

87449835

SPACER

hitch bolt

2шт.

26

87302794

BOLT

1 1/4"-7 x 10" G5

2шт.

27

87302984

BOLT

1 1/4"-7 x 12" G5

1шт.

28

CC-105

HOSE CLAMP

for 2 hoses

6шт.

29

CC-106

HOSE CLAMP

for 4 hoses

6шт.

30

88902

NUT,3/8"-16

6шт.

31

447759A1

CHAIN

assembly, safety, 60,600 pounds

1шт.

32

450057A1

DECAL

safety chain

1шт.

32

87551812

DECAL

safety chain - French

1шт.

32

87607188

DECAL

safety chain, Russian

1шт.
