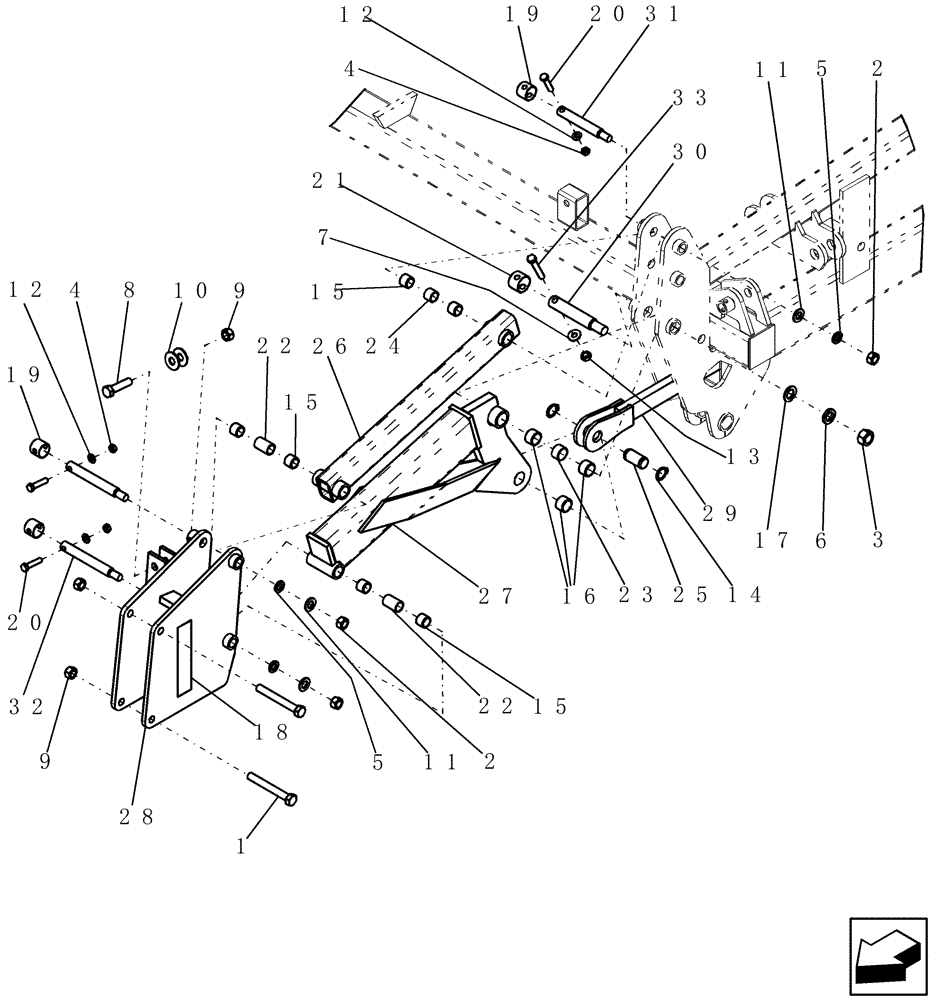

Запчасти Case IH 400 (39.100.28) - PARALLEL ARMS, CENTER SECTION (39) - FRAMES AND BALLASTING

1

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

2

280954

NUT,3/4"-10, G5

3шт.

3

9849633

NUT,1"-8, G5

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

3шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

3шт.

6

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.

7

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

8

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

9

280375

NUT,3/4"-10, GC

4шт.

10

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

11

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

3шт.

12

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

3шт.

13

280328

NUT,9/16"-12, GB

1шт.

14

86625148

SNAP RING,#125, Ext

2шт.

15

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

6шт.

16

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

3шт.

17

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

1шт.

18

22903

DECAL

retroreflective amber 2" x 9"

1шт.

19

87418616

CAP

vinyl 38 x 35 lg black

3шт.

20

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

3шт.

21

87420506

CAP

vinyl 44 x 37 lg black

1шт.

22

DR-706

SPACER

plastic 1 1/4" od x 3/32" thick x 1 7/8" long

2шт.

23

DR-711

SPACER

1 1/2" od x 3/32" thick x 7/8" long

1шт.

24

DR-712

SPACER,25.78mm ID x 31.37mm OD x 23.82mm L

plastic 1 1/4" od x 3/32" thick x 15/16" long

1шт.

25

DR-815

PIN

floating control link - 1 1/4" x 1 7/8"

1шт.

26

DR-345A

BAR

assembly, parallel upper center

1шт.

Includes four 6635, DR-706 and DR-712

1шт.

27

DR-347A

ARM

parallel assembly, lower - heavy

1шт.

Includes two 6635, three 6636, DR-706 and DR-711

1шт.

28

87500146

HOUSING

adjustment - heavy left

1шт.

Includes decal 22903

1шт.

Shown

1шт.

28

87500147

HOUSING

adjustment - heavy right

1шт.

Includes decal 22903

1шт.

Not Shown

1шт.

29

87500123

CONTROL

link (1 1/4" pins)

1шт.

30

87420519

PIN

1 1/4 x 5

1шт.

31

DR-802

BOLT

1 X 6.25 X W .75

1шт.

32

87420518

PIN,25.4mm OD x 215mm L

caster pivot

2шт.

33

87301770

BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8

9/16"-12 x 3 1/4" gr8

1шт.
