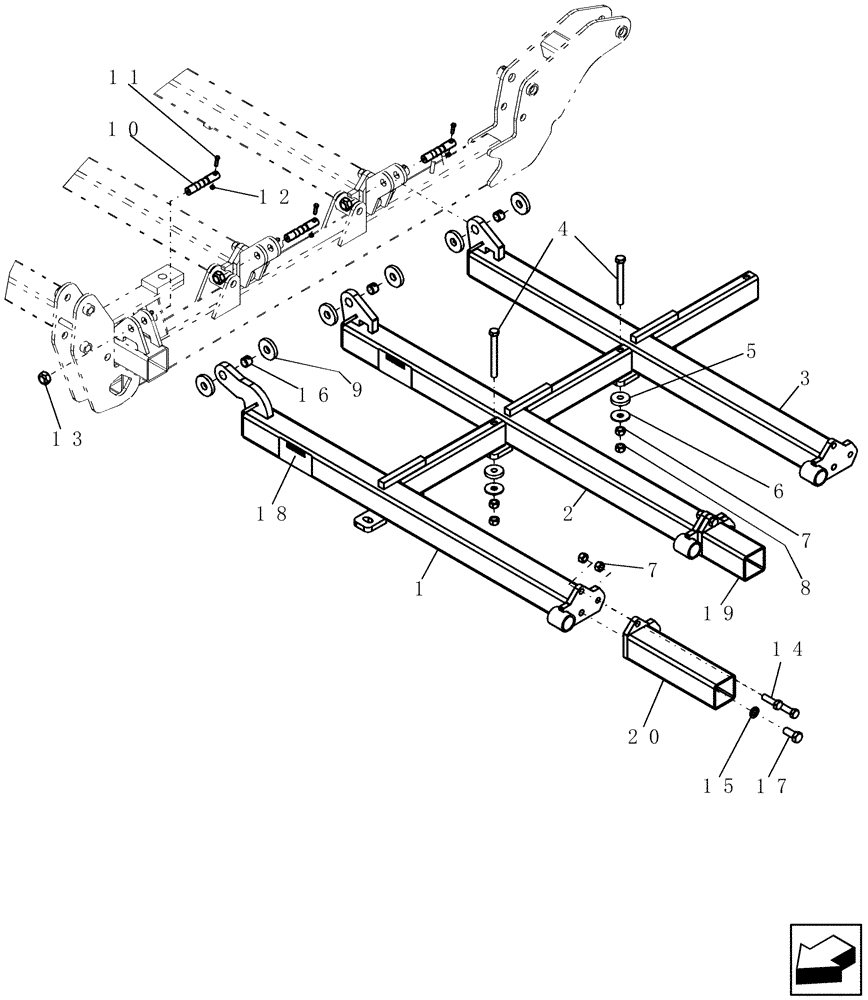

Запчасти Case IH 400 (39.100.25) - 6 FIVE SECTION OUTER WING (FRONT) - 45 MODEL SHOWN (39) - FRAMES AND BALLASTING

1

87500782

BAR

wing, front, 6' LH

1шт.

Includes TC-500.08 and 64601C1

1шт.

Shown

1шт.

1

87500637

FRAME

6' wing 1st bar right

1шт.

Includes TC-500.08 and 64601C1

1шт.

Not Shown

1шт.

2

87500852

FRAME

6' wing 2nd bar left

1шт.

Includes TC-500.08 and 64601C1

1шт.

Shown

1шт.

2

87500638

FRAME

6' wing 2nd bar right

1шт.

Includes TC-500.08 and 64601C1

1шт.

Not Shown

1шт.

3

87500865

FRAME

6' wing 3rd bar left

1шт.

Includes 64601C1

1шт.

Shown

1шт.

3

87500639

FRAME

6' wing 3rd bar right

1шт.

Includes 64601C1

1шт.

Not Shown

1шт.

4

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

5

CA-106

PAD

flex, 3/4" id x 2 1/2" od x 1/2" thick

2шт.

6

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

2шт.

7

280375

NUT,3/4"-10, GC

12шт.

8

280954

NUT,3/4"-10, G5

2шт.

9

CA-105

PAD

flex, 1 1/32" id x 3" od x 1/2" thick

6шт.

10

87420537

PIN

standard hinge 1" x 5 1/2"

3шт.

11

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

3шт.

12

86992215

LOCK NUT,1/2"-13, GC

3шт.

13

280286

NUT,1"-8, GB

3шт.

14

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

10шт.

15

87341

LOCK WASHER,7/8"

5шт.

16

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

3шт.

17

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

5шт.

18

TC-500.08

DECAL

raised wings

2шт.

18

87551819

DECAL

raised wings - French

2шт.

18

TC-500.08RU

DECAL

Raised Wings - Russian

2шт.

19

87500269

EXTENSION

stub short LT

1шт.

Shown

1шт.

19

87500268

EXTENSION

stub short RT

1шт.

Not Shown

1шт.

20

87500267

EXTENSION

stub, long LH

1шт.

Shown

1шт.

20

87500266

EXTENSION

stub long RT

1шт.

Not Shown

1шт.
