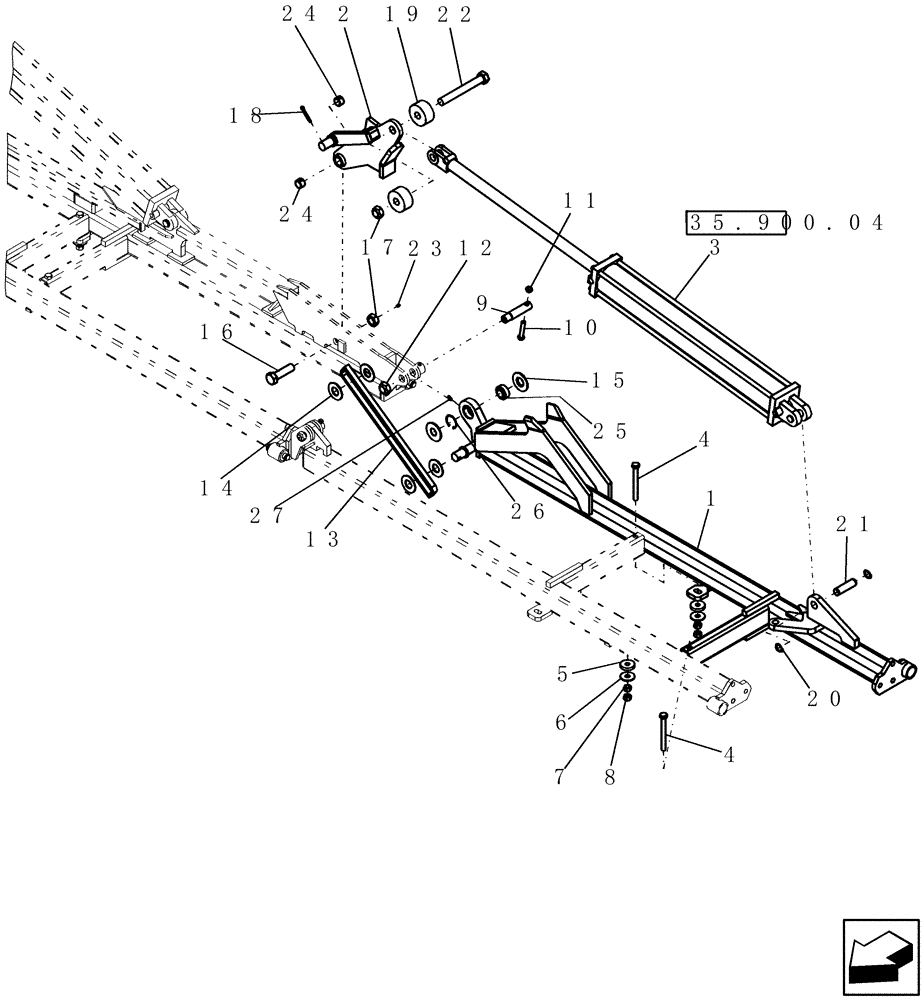

Запчасти Case IH 400 (39.100.23) - 9 FIVE SECTION OUTER WING (REAR) - 57 MODEL SHOWN (39) - FRAMES AND BALLASTING

1

87500943

BAR

4th 57' outer wing left

1шт.

Includes 87443834 and 370012

1шт.

Shown

1шт.

1

87500942

BAR

4th 57' outer wing right

1шт.

Includes 87443834 and 370012

1шт.

Not Shown

1шт.

2

87418925

LEVER

large 160º left

1шт.

Includes two 87505190

1шт.

Shown

1шт.

2

87500493

LEVER

large, 160º

1шт.

Includes two 87505190

1шт.

Not Shown

1шт.

3

87437294

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 1016mm Stroke

5" x 40" mon 3000 psi without pins

2шт.

Refer to 35.900.04

1шт.

3

87437294R

REMAN-HYD CYLINDER

400 FLEX HOE DRILL, 5" x 40" mon 3000 psi without pins, 9' FIVE SECTION OUTER WING (REAR) - 57' MODEL SHOWN (7/08-)

2шт.

3

87437294C

CORE-HYD CYLINDER

Return Number

2шт.

4

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

4шт.

5

CA-106

PAD

flex, 3/4" id x 2 1/2" od x 1/2" thick

4шт.

6

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

4шт.

7

280375

NUT,3/4"-10, GC

6шт.

8

280954

NUT,3/4"-10, G5

4шт.

9

87420536

PIN

35 mm x 95 mm ul pln

1шт.

10

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

1шт.

11

85700693

NUT,5/8" - 11, Gr C

1шт.

12

87323802

NUT

1 1/4"-12, GB

1шт.

13

DR-409

LINK

control

1шт.

14

3562

WASHER,1.56" ID x 3.25" OD x 0.16" Thk

1 9/16" id 3 1/4" 8ga

4шт.

15

87440392

WASHER

indented 5000 wing

2шт.

16

87444390

BOLT

1 1/4"-7 x 5" greasable

1шт.

17

86609684

NUT,1 1/4"-7, GB

2шт.

18

3566

COTTER PIN

5/16" x 2"

1шт.

19

DR-401

ROLLER

with i.d. for 1 1/4" bolt air drill

2шт.

20

86625148

SNAP RING,#125, Ext

4шт.

21

8974

PIN

cylinder, 1 1/4" x 4" ul with snap ring groove (#437327)mo

2шт.

22

87302794

BOLT

1 1/4"-7 x 10" G5

1шт.

23

87414

LUBE NIPPLE,1/4" - 28

1шт.

24

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

2шт.

25

87443834

SPHERICAL BEARING,35mm ID x 62mm OD x 35mm W

spherical plane 35 mm

2шт.

26

370012

RING,M62, Internal

2шт.

27

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.
