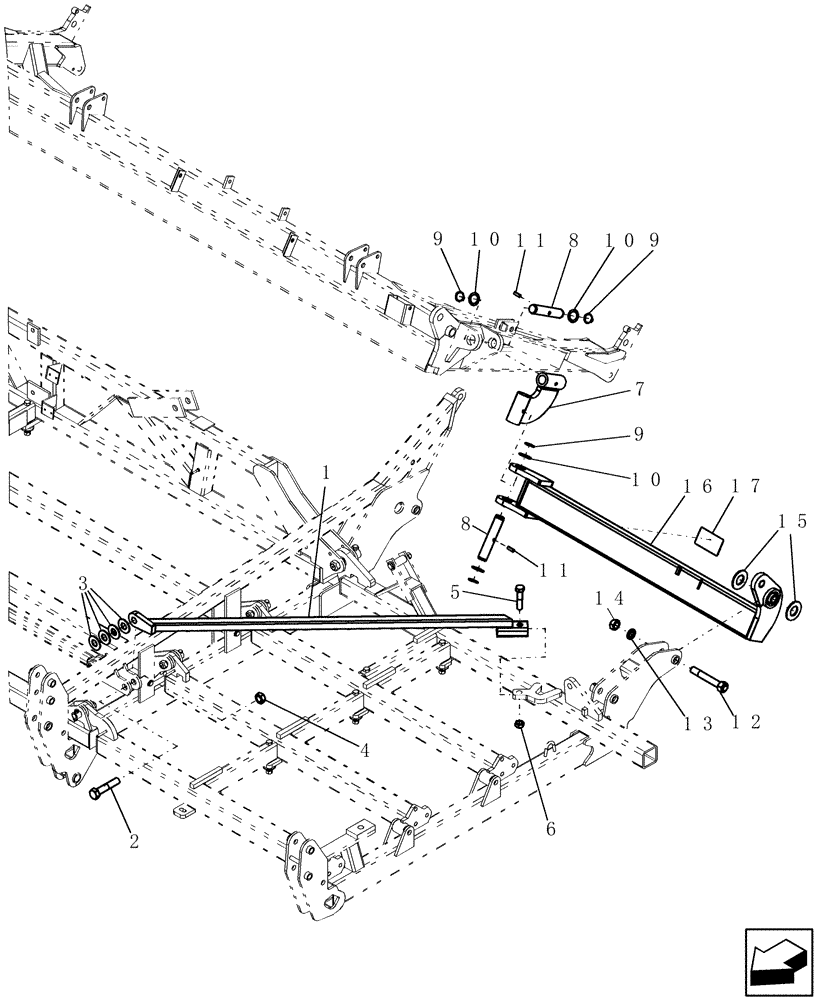

Запчасти Case IH 400 (39.100.21) - 6 THREE SECTION OUTER WING BRACING AND ROCKSHAFT - 27 MODEL SHOWN (39) - FRAMES AND BALLASTING

1

87501143

BRACKET

diagonal 6' wing LH

1шт.

Shown

1шт.

1

87501142

BRACKET

diagonal 6' wing RH

1шт.

Not Shown

1шт.

2

87635854

BOLT,Hex, 1 1/4" - 7 x 7", Gr 5

1шт.

3

87370

WASHER,1.38" ID x 3" OD x 0.17" Thk

6шт.

4

86609684

NUT,1 1/4"-7, GB

1шт.

5

280443

BOLT,Hex, 1" - 8 x 4 1/2", Gr 5

1шт.

6

280286

NUT,1"-8, GB

7шт.

7

DR-389

HINGE

universal 6" x 6" heavy

1шт.

8

DR-681

PIN,44.57mm OD x 236.5mm L

rock shaft u-joint - 1 3/4" x 8 9/16"

2шт.

9

11487

SNAP RING,#175, Ext

4шт.

10

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

4шт.

11

38-13224

LOCK PIN,1/2" x 1 1/2", Slotted

2шт.

12

86625082

NUT,1 1/4"-12, G5

1шт.

13

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

14

87323802

NUT

1 1/4"-12, GB

2шт.

15

DR-494

BUSHING

support beam

2шт.

16

87501155

ROCKSHAFT

6' wing LH

1шт.

Includes three 6636, two 6637, TC-500.08, two 80714 and DR-711

1шт.

Shown

1шт.

16

87500992

ROCKSHAFT

6' wing RH

1шт.

Includes three 6636, two 6637, TC-500.08, two 80714 and DR-711

1шт.

Not Shown

1шт.

17

TC-500.08

DECAL

raised wings

1шт.

17

87551819

DECAL

raised wings - French

1шт.

17

TC-500.08RU

DECAL

Raised Wings - Russian

1шт.
