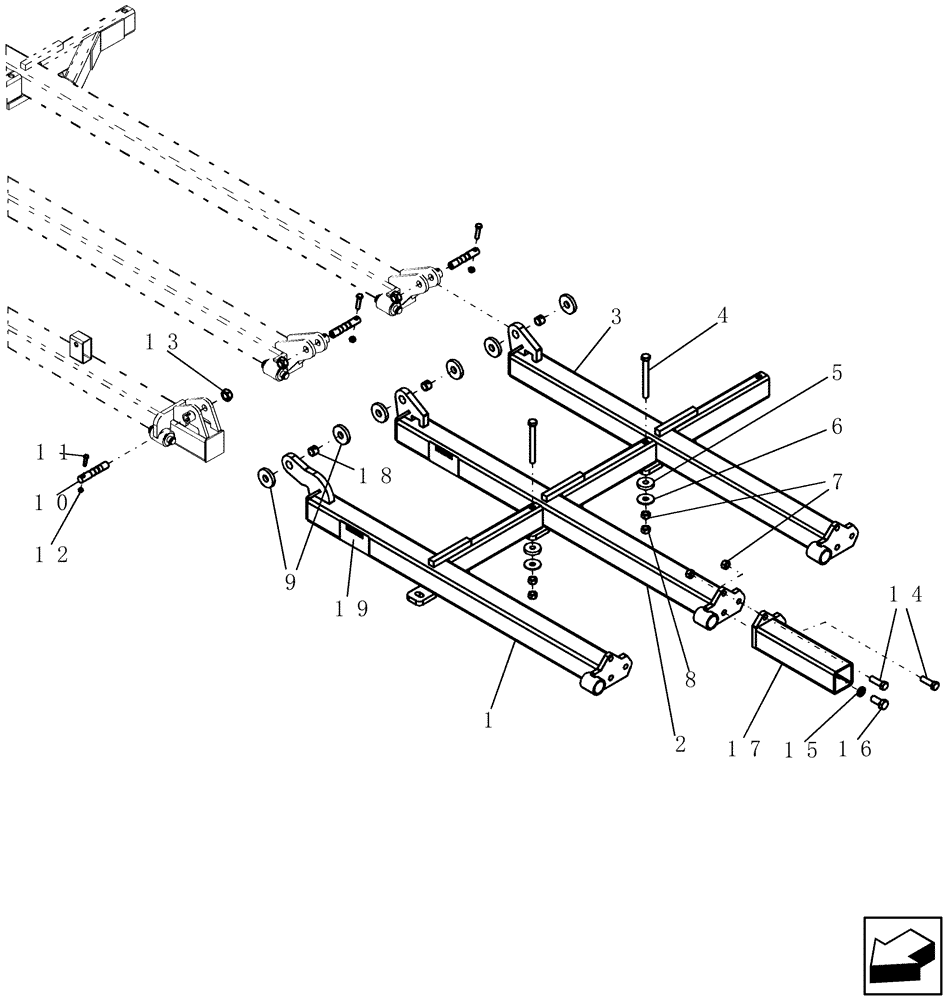

Запчасти Case IH 400 (39.100.19) - 6 THREE SECTION OUTER WING (FRONT) - 27 MODEL SHOWN (39) - FRAMES AND BALLASTING

1

87500782

BAR

wing, front, 6' LH

1шт.

Includes TC-500.08 and 64601C1

1шт.

Shown

1шт.

1

87500637

FRAME

6' wing 1st bar right

1шт.

Includes TC-500.08 and 64601C1

1шт.

Not Shown

1шт.

2

87500852

FRAME

6' wing 2nd bar left

1шт.

Includes TC-500.08 and 64601C1

1шт.

Shown

1шт.

2

87500638

FRAME

6' wing 2nd bar right

1шт.

Includes TC-500.08 and 64601C1

1шт.

Not Shown

1шт.

3

87500865

FRAME

6' wing 3rd bar left

1шт.

Includes 64601C1

1шт.

Shown

1шт.

3

87500639

FRAME

6' wing 3rd bar right

1шт.

Includes 64601C1

1шт.

Not Shown

1шт.

4

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

5

CA-106

PAD

flex, 3/4" id x 2 1/2" od x 1/2" thick

2шт.

6

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

2шт.

7

280375

NUT,3/4"-10, GC

6шт.

8

280954

NUT,3/4"-10, G5

2шт.

9

CA-105

PAD

flex, 1 1/32" id x 3" od x 1/2" thick

6шт.

10

87420537

PIN

standard hinge 1" x 5 1/2"

3шт.

11

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

3шт.

12

86992215

LOCK NUT,1/2"-13, GC

3шт.

13

280286

NUT,1"-8, GB

3шт.

14

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

4шт.

15

87341

LOCK WASHER,7/8"

2шт.

16

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

2шт.

17

87500269

EXTENSION

stub short LT

1шт.

Shown

1шт.

17

87500268

EXTENSION

stub short RT

1шт.

Not Shown

1шт.

18

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

3шт.

19

TC-500.08

DECAL

raised wings

2шт.

19

87551819

DECAL

raised wings - French

2шт.

19

TC-500.08RU

DECAL

Raised Wings - Russian

2шт.
