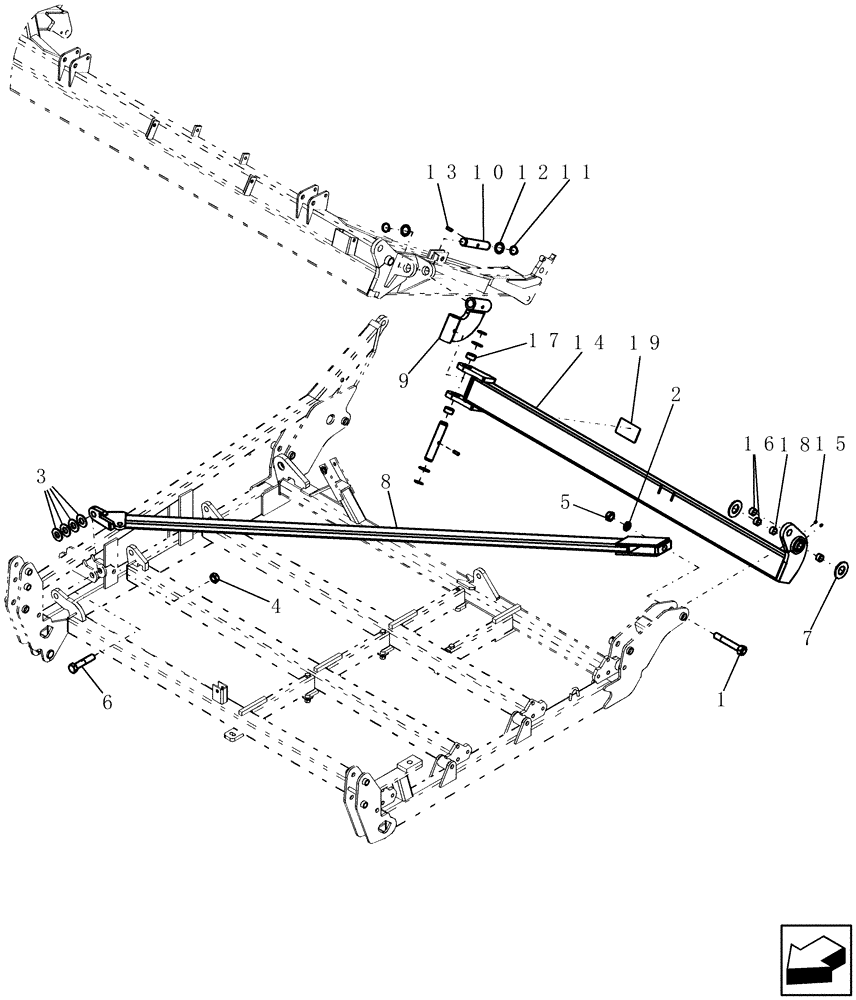

Запчасти Case IH 400 (39.100.18) - 9 THREE SECTION OUTER WING BRACING AND ROCKSHAFT - 33 MODEL SHOWN (39) - FRAMES AND BALLASTING

1

DR-807

BOLT

1 1/4"-12 x 7 7/8" chrome

1шт.

2

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

3

87370

WASHER,1.38" ID x 3" OD x 0.17" Thk

4шт.

4

86609684

NUT,1 1/4"-7, GB

1шт.

5

87323802

NUT

1 1/4"-12, GB

1шт.

6

87635854

BOLT,Hex, 1 1/4" - 7 x 7", Gr 5

1шт.

7

DR-494

BUSHING

support beam

2шт.

8

87614498

BRACKET

diagonal 9' 110º right

1шт.

Shown

1шт.

8

87614503

BRACKET

diagonal 9' 110º left

1шт.

Not Shown

1шт.

9

DR-389

HINGE

universal 6" x 6" heavy

1шт.

10

DR-681

PIN,44.57mm OD x 236.5mm L

rock shaft u-joint - 1 3/4" x 8 9/16"

2шт.

11

11487

SNAP RING,#175, Ext

4шт.

12

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

4шт.

13

38-13224

LOCK PIN,1/2" x 1 1/2", Slotted

2шт.

14

87501159

ROCKSHAFT

9' outer LH

1шт.

Includes three 6636, four 6637, TC-500.08, two 80714 and DR-711

1шт.

Shown

1шт.

14

87500980

ROCKSHAFT

9' outer wing RH

1шт.

Includes three 6636, four 6637, TC-500.08, two 80714 and DR-711

1шт.

Not Shown

1шт.

15

87414

LUBE NIPPLE,1/4" - 28

2шт.

16

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

3шт.

17

6637

BUSHING

composite 2" x 1 3/4" x 1"

2шт.

18

DR-711

SPACER

1 1/2" od x 3/32" thick x 7/8" long

1шт.

19

TC-500.08

DECAL

raised wings

1шт.

19

87551819

DECAL

raised wings - French

1шт.

19

TC-500.08RU

DECAL

Raised Wings - Russian

1шт.
