Запчасти Case IH 400 (39.100.13) - 12 THREE SECTION OUTER WING (FRONT) - 39 MODEL SHOWN (39) - FRAMES AND BALLASTING

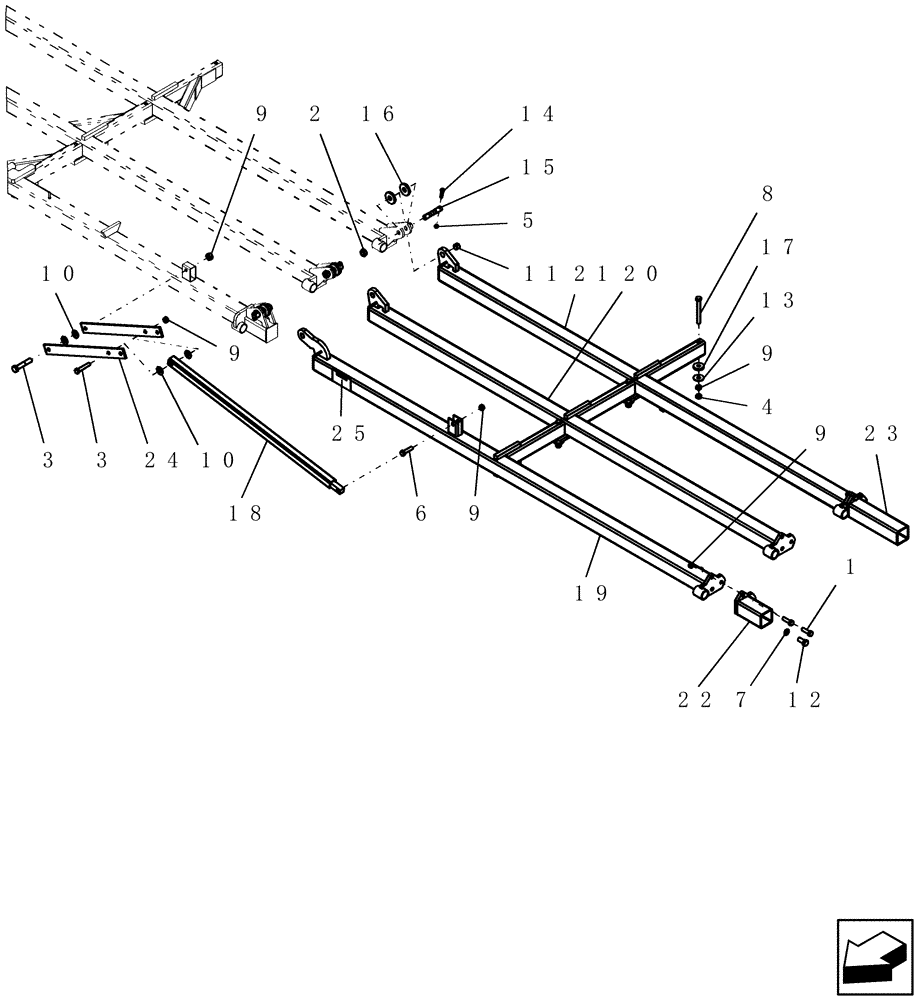

Схема запчастей Case IH 400 - (39.100.13) - 12 THREE SECTION OUTER WING (FRONT) - 39 MODEL SHOWN (39) - FRAMES AND BALLASTING
7
9
13
6
25
20
10
15
10
22
11
18
3
2
4
24
3
17
9
5
8
19
21
9
9
16
12
1
23
14
9

Артикул

Название

Примечание

Количество

1

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

4шт.

2

280286

NUT,1"-8, GB

3шт.

3

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

4

280954

NUT,3/4"-10, G5

3шт.

5

86992215

LOCK NUT,1/2"-13, GC

3шт.

6

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

7

87341

LOCK WASHER,7/8"

2шт.

8

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3шт.

9

280375

NUT,3/4"-10, GC

10шт.

10

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

11

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

3шт.

12

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

2шт.

13

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

3шт.

14

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

3шт.

15

87420537

PIN

standard hinge 1" x 5 1/2"

3шт.

16

CA-105

PAD

flex, 1 1/32" id x 3" od x 1/2" thick

6шт.

17

CA-106

PAD

flex, 3/4" id x 2 1/2" od x 1/2" thick

3шт.

18

87500224

BAR

3 section long wing rest

1шт.

19

87500193

FRAME

12' wing 1st bar left

1шт.

Includes TC-500.08 and 64601C1

1шт.

Shown

1шт.

19

87500194

FRAME

12' wing 1st bar right

1шт.

Includes TC-500.08 and 64601C1

1шт.

Not Shown

1шт.

20

87500187

FRAME

12' wing 2nd bar left

1шт.

Includes 64601C1

1шт.

Shown

1шт.

20

87500186

FRAME

12' wing 2nd bar right

1шт.

Includes 64601C1

1шт.

Not Shown

1шт.

21

87447457

FRAME

12' wing 3rd bar left

1шт.

Includes 64601C1

1шт.

Shown

1шт.

21

87447456

FRAME

12' wing 3rd bar right

1шт.

Includes 64601C1

1шт.

Not Shown

1шт.

22

87500269

EXTENSION

stub short LT

1шт.

Shown

1шт.

22

87500268

EXTENSION

stub short RT

1шт.

Not Shown

1шт.

23

87500267

EXTENSION

stub, long LH

1шт.

Shown

1шт.

23

87500266

EXTENSION

stub long RT

1шт.

Not Shown

1шт.

24

87447524

STOP

wing short

2шт.

25

TC-500.08

DECAL

raised wings

1шт.

25

87551819

DECAL

raised wings - French

1шт.

25

TC-500.08RU

DECAL

Raised Wings - Russian

1шт.

Выбрано товаров: 48
