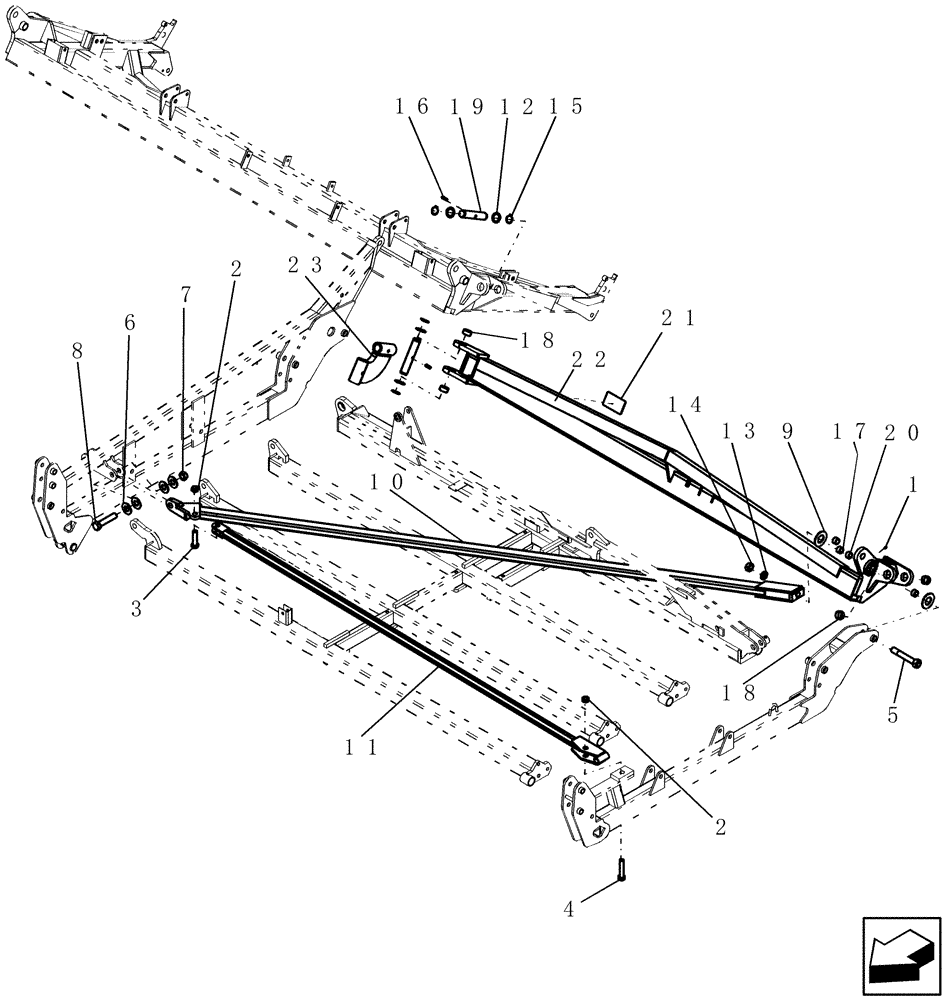

Запчасти Case IH 400 (39.100.09) - 12 FIVE SECTION INNER WING BRACING AND ROCKSHAFT - 51/57 MODEL SHOWN (39) - FRAMES AND BALLASTING

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

280286

NUT,1"-8, GB

2шт.

3

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

4

88381

BOLT,Hex, 1" - 8 x 5", Gr 5

1шт.

5

DR-807

BOLT

1 1/4"-12 x 7 7/8" chrome

1шт.

6

87370

WASHER,1.38" ID x 3" OD x 0.17" Thk

6шт.

7

86609684

NUT,1 1/4"-7, GB

1шт.

8

87635854

BOLT,Hex, 1 1/4" - 7 x 7", Gr 5

1шт.

9

DR-494

BUSHING

support beam

2шт.

10

87614514

BRACKET

diagonal 12' wing left

1шт.

Shown

1шт.

10

87614510

BRACKET

diagonal 12' wing right

1шт.

Not Shown

1шт.

11

87610507

LINK

tension 12' wing

1шт.

12

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

4шт.

13

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

14

87323802

NUT

1 1/4"-12, GB

1шт.

15

11487

SNAP RING,#175, Ext

4шт.

16

38-13224

LOCK PIN,1/2" x 1 1/2", Slotted

2шт.

17

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

3шт.

18

6637

BUSHING

composite 2" x 1 3/4" x 1"

4шт.

19

DR-681

PIN,44.57mm OD x 236.5mm L

rock shaft u-joint - 1 3/4" x 8 9/16"

2шт.

20

DR-711

SPACER

1 1/2" od x 3/32" thick x 7/8" long

1шт.

21

TC-500.08

DECAL

raised wings

1шт.

21

87551819

DECAL

raised wings - French

1шт.

21

TC-500.08RU

DECAL

Raised Wings - Russian

1шт.

22

87501171

ROCKSHAFT

12' inner left

1шт.

Includes three 6636, four 6637, TC-500.08, two 80714 and DR-711

1шт.

Shown

1шт.

22

87501151

ROCKSHAFT

12' inner RH

1шт.

Includes three 6636, four 6637, TC-500.08, two 80714 and DR-711

1шт.

Not Shown

1шт.

23

DR-389

HINGE

universal 6" x 6" heavy

1шт.
