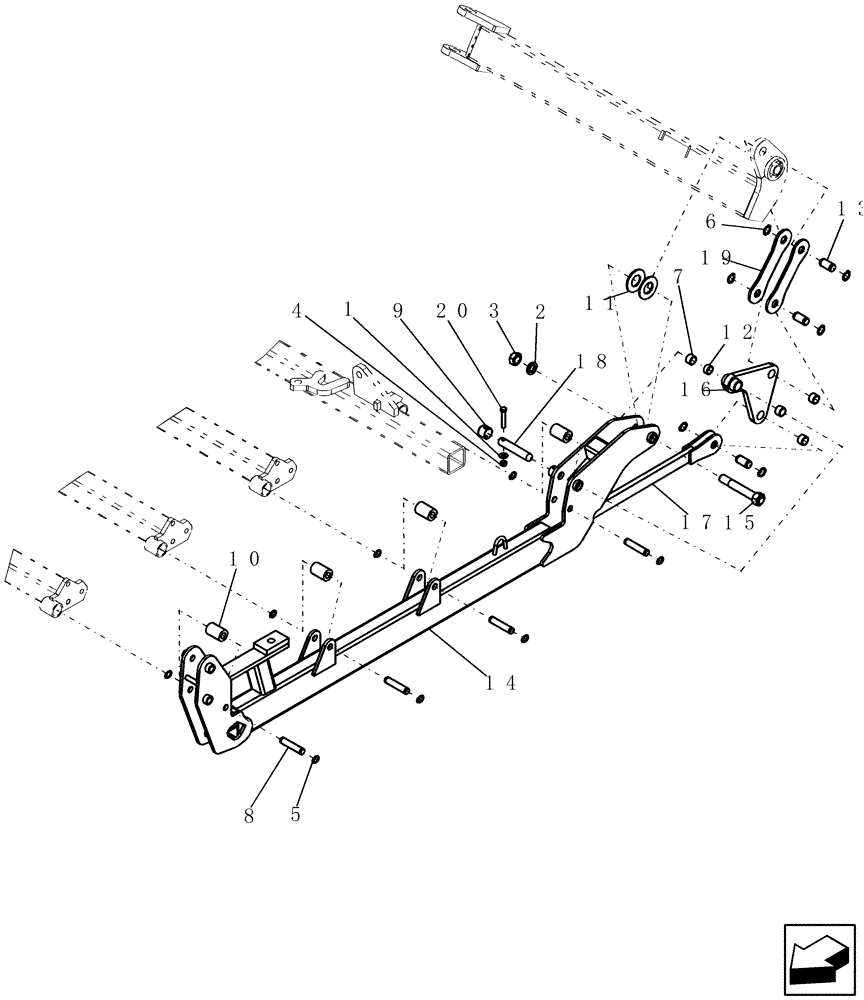

Запчасти Case IH 400 (39.100.06) - WING BEAM (39) - FRAMES AND BALLASTING

1

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

2

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

3

87323802

NUT

1 1/4"-12, GB

1шт.

4

280328

NUT,9/16"-12, GB

1шт.

5

87019495

SNAP RING,#98, Ext

8шт.

6

86625148

SNAP RING,#125, Ext

8шт.

7

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

4шт.

8

87420397

PIN,25.4mm OD x 122mm L

1" x 4 3/16" ul

4шт.

9

87420506

CAP

vinyl 44 x 37 lg black

1шт.

10

CA-103

TUBE

flex, 1 1/64" id x 2" od x 3" long

4шт.

11

DR-494

BUSHING

support beam

2шт.

12

DR-710

SPACER

1 1/2" od x 3/32" thick x 3/4" long

1шт.

13

DR-815

PIN

floating control link - 1 1/4" x 1 7/8"

4шт.

14

87418914

BEAM

wing inner

1шт.

Shown

1шт.

14

87500138

BEAM

wing outer

1шт.

Not Shown

1шт.

15

DR-807

BOLT

1 1/4"-12 x 7 7/8" chrome

1шт.

16

87500121

BELLCRANK

assembly with bushings

1шт.

Includes DR-710 and four 6636

1шт.

17

87500123

CONTROL

link (1 1/4" pins)

1шт.

18

87420548

PIN

1 1/4" x 5 1/2"

1шт.

19

87500122

BELLCRANK

link 9 3/4"

2шт.

20

87301770

BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8

9/16"-12 x 3 1/4" gr8

1шт.
