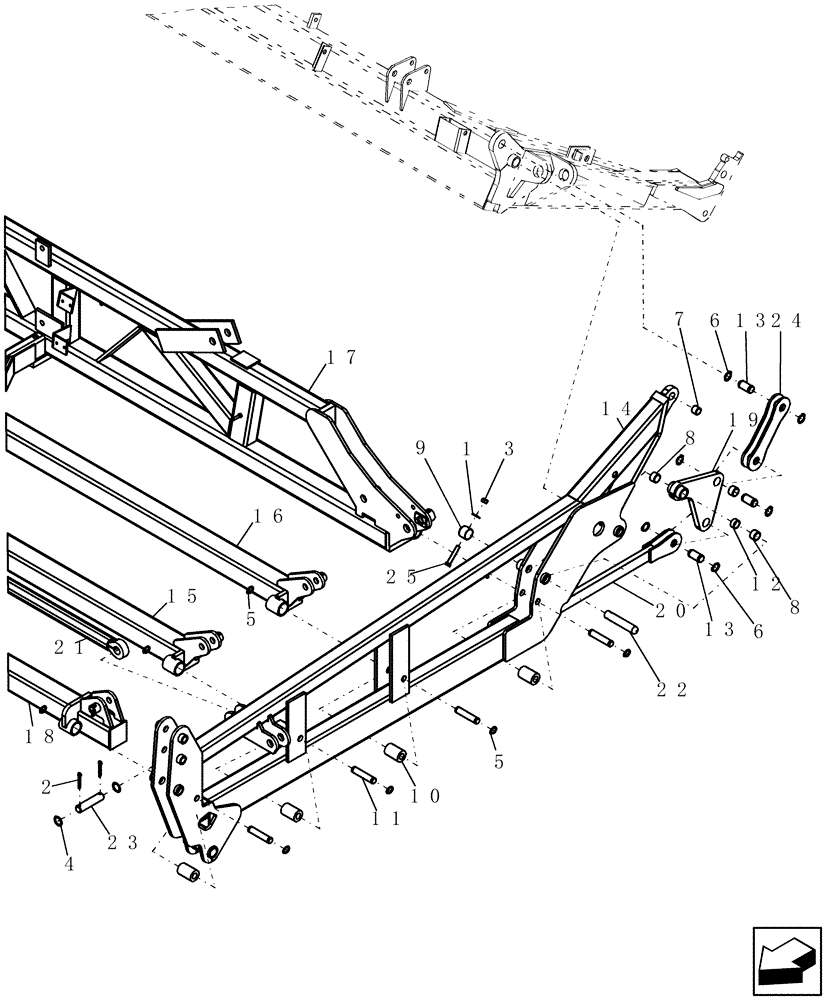

Запчасти Case IH 400 (39.100.05) - CENTER BEAM (39) - FRAMES AND BALLASTING

1

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

2

3566

COTTER PIN

5/16" x 2"

2шт.

3

280328

NUT,9/16"-12, GB

1шт.

4

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

5

87019495

SNAP RING,#98, Ext

8шт.

6

86625148

SNAP RING,#125, Ext

6шт.

7

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

1шт.

8

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

3шт.

9

87420506

CAP

vinyl 44 x 37 lg black

1шт.

10

CA-103

TUBE

flex, 1 1/64" id x 2" od x 3" long

4шт.

11

87420397

PIN,25.4mm OD x 122mm L

1" x 4 3/16" ul

4шт.

12

DR-710

SPACER

1 1/2" od x 3/32" thick x 3/4" long

1шт.

13

DR-815

PIN

floating control link - 1 1/4" x 1 7/8"

3шт.

14

87613872

FRAME

center beam

1шт.

15

87500169

BAR

2nd, center section

1шт.

16

87500172

BAR

3rd, center section

1шт.

17

87500173

BAR

4th, center section

1шт.

18

87500166

BAR

center section front

1шт.

19

87500121

BELLCRANK

assembly with bushings

1шт.

Includes DR-710 and four 6636

1шт.

20

87500123

CONTROL

link (1 1/4" pins)

1шт.

21

87500181

LINK

tension, center section

1шт.

22

87420548

PIN

1 1/4" x 5 1/2"

1шт.

23

87420395

PIN

1 1/4" dia x 5 1/2"

1шт.

24

87500122

BELLCRANK

link 9 3/4"

2шт.

25

87301770

BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8

9/16"-12 x 3 1/4" gr8

1шт.
