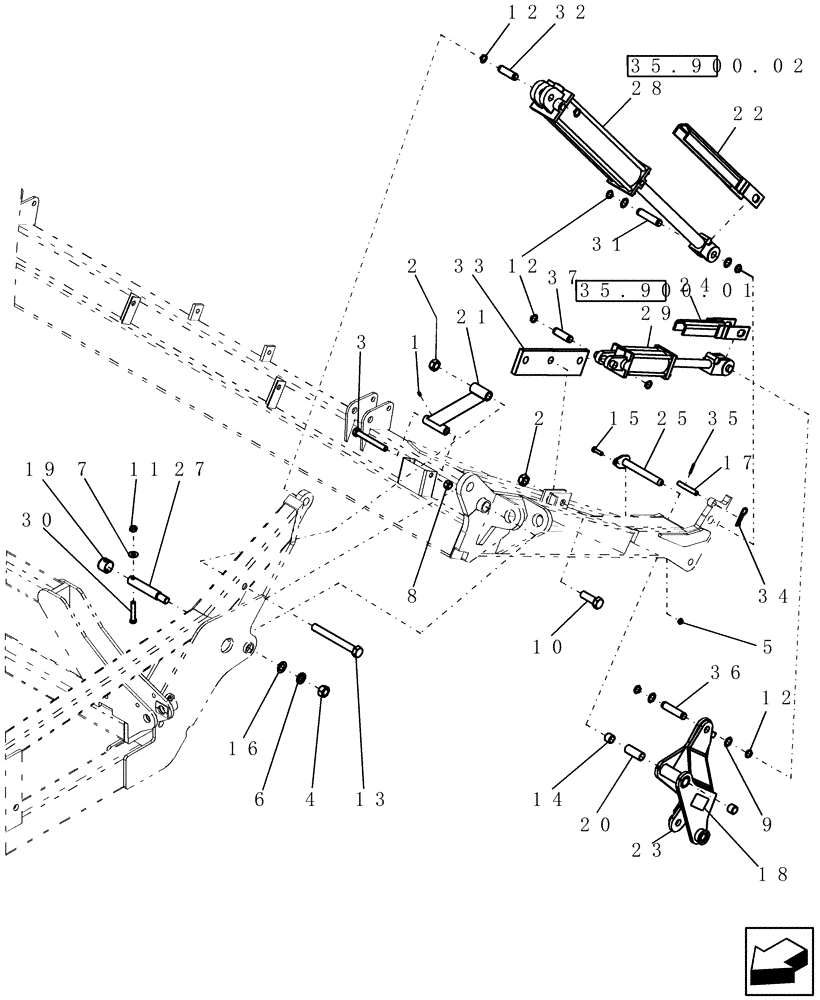

Запчасти Case IH 400 (39.100.03) - ROCKSHAFT, CENTER SECTION (39) - FRAMES AND BALLASTING

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

280286

NUT,1"-8, GB

2шт.

3

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

4

9849633

NUT,1"-8, G5

1шт.

5

280980

NUT,7/16"-14, GC

1шт.

6

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.

7

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

8

280375

NUT,3/4"-10, GC

1шт.

9

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

4шт.

10

86539260

BOLT,Hex, 1" - 8 x 3", Gr 8

1шт.

11

280328

NUT,9/16"-12, GB

1шт.

12

87019495

SNAP RING,#98, Ext

8шт.

13

281055

BOLT,Hex, 1" - 8 x 9", Gr 5

1шт.

14

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

2шт.

15

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

1шт.

16

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

1шт.

17

DR-713A

PIN

assembly, 5/8" x 4"

1шт.

Includes 438-11224

1шт.

18

22421

DECAL

bolt torque

1шт.

18

87551811

DECAL

bolt torque - French

1шт.

18

87607186

DECAL

bolt torque Russian

1шт.

19

87420506

CAP

vinyl 44 x 37 lg black

1шт.

20

DR-708

SPACER

1 1/4" od x 3/32" thick x 3 1/16" long

1шт.

21

DR-609

BEAM

buttress center

1шт.

22

87500713

LOCK

transport for 24"

1шт.

23

87444878

ROCKER ARM

lift assist left

1шт.

23

87444877

ROCKER ARM

lift assist right

1шт.

24

DR-618

LOCK

transport (for 3" x 8" cylinder)

1шт.

25

DR-800

PIN,25.4mm OD x 212.72mm L

transport rocker - 1" x 7 1/2" usable

1шт.

27

87420519

PIN

1 1/4 x 5

1шт.

28

9652

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 610mm Stroke

4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline

1шт.

Refer to 35.900.02

1шт.

28

9652R

REMAN-HYD CYLINDER

400 FLEX HOE DRILL, CENTER SECTION, 4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline (7/08-)

1шт.

28

9652C

CORE-HYD CYLINDER

Return Number

1шт.

29

86994102

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3" x 8" 3000 psi da

1шт.

Refer to 35.900.01

1шт.

30

87301770

BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8

9/16"-12 x 3 1/4" gr8

1шт.

31

DR-632V2

PIN

cylinder, 1" x 3 7/8" ul chrome

1шт.

32

DR-631

PIN

cylinder, 1" x 2 3/4" lg usable chrome

1шт.

33

DR-934

BRACKET

mount, adjustable transport cylinder

1шт.

34

87327559

COTTER PIN

9/64" x 2 15/16"

1шт.

35

438-11224

LOCK PIN,3/16" x 1 1/2", Slotted

1шт.

36

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

1шт.

37

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

1шт.
