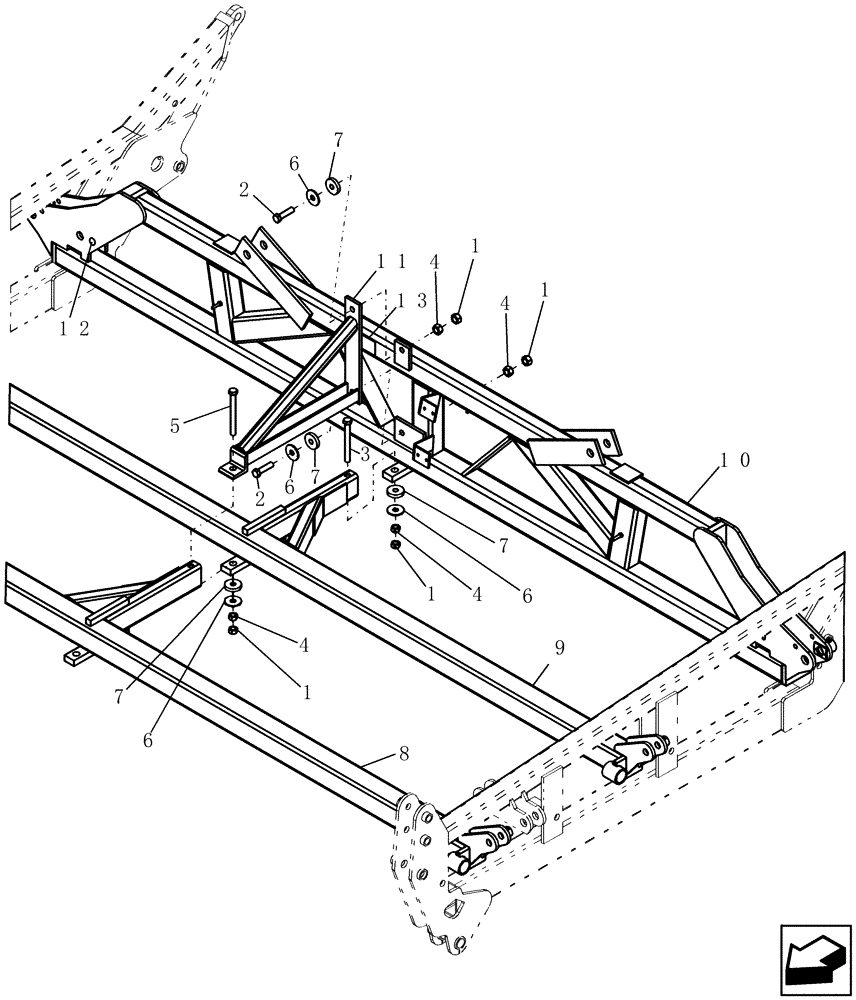

Запчасти Case IH 400 (39.100.02) - CENTER BARS, CENTER SECTION (39) - FRAMES AND BALLASTING

1

280954

NUT,3/4"-10, G5

4шт.

2

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

3

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

4

280375

NUT,3/4"-10, GC

4шт.

5

281036

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

1шт.

6

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

4шт.

7

CA-106

PAD

flex, 3/4" id x 2 1/2" od x 1/2" thick

4шт.

8

87500169

BAR

2nd, center section

1шт.

9

87500172

BAR

3rd, center section

1шт.

10

87500173

BAR

4th, center section

1шт.

Includes two 6566 and TC-500.10

1шт.

11

DR-305

FORK

torque

1шт.

12

6566

DECAL

grease 50 hours

2шт.

13

TC-500.10

CAUTION DECAL

proceed cautiously

1шт.

13

87551819

DECAL

raised wings - French

1шт.

13

TC-500.10RU

CAUTION DECAL

Proceed - Russian

1шт.
