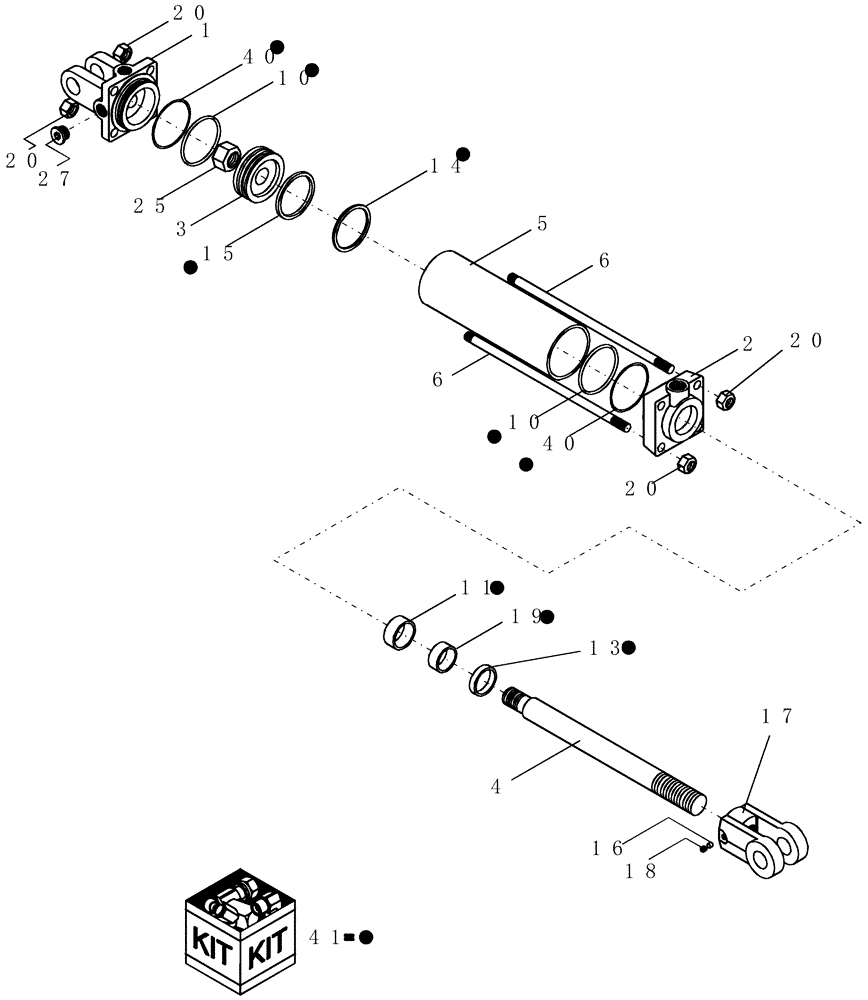

Запчасти Case IH 400 (35.900.04) - 5" X 30" AND 5" X 40" HYDRAULIC CYLINDER - MONARCH (35) - HYDRAULIC SYSTEMS

0

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

1шт.

0

87437294

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 1016mm Stroke

5" x 40" mon 3000 psi without pins

1шт.

0

87437294R

REMAN-HYD CYLINDER

400 FLEX HOE DRILL, 5" x 40" mon 3000 psi without pins, 5" X 30" AND 5" X 40" HYDRAULIC CYLINDER - MONARCH (7/08-)

1шт.

0

87437294C

CORE-HYD CYLINDER

Return Number

1шт.

1

87409428

HEAD

cylinder base 5" bore; 2, 3/4"-16 orb ports

1шт.

2

87409416

HEAD

cylinder front 5" bore x 2" rod

1шт.

For 5 x 30 cylinder

1шт.

2

9218

CAP

cylinder end rod 5 Monarch 2" shaft (#492887)

1шт.

For 5 x 40 cylinder

1шт.

3

9739

PISTON

cylinder, 5 Monarch psp seal, 3000 psi (#494743)

1шт.

4

8965

SHAFT

cylinder, 5" x 30" Monarch 2 dia (#437202)

1шт.

For 5 x 30 cylinder

1шт.

4

9215

SHAFT

cylinder, 5" x 40" Monarch 2 (#437204)

1шт.

For 5 x 40 cylinder

1шт.

5

8966

BARREL,5.00" DIA x 30.00" L

cylinder, 5" x 30" Monarch (#437282)

1шт.

For 5 x 30 cylinder

1шт.

5

9216

TUBE

cylinder, 5" x 40" Monarch (#437284)

1шт.

For 5 x 40 cylinder

1шт.

6

8967

TIE-ROD

cylinder 30 Monarch 3/4" (#492332)

4шт.

For 5 x 30 cylinder

1шт.

6

9217

TIE-ROD

cylinder 40 3/4" dia Monarch, (#492352) thrd rod ca

4шт.

For 5 x 40 cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

End Cap O-ring

2шт.

Included in repair kit 9737V2

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Wiper Seal

1шт.

Included in repair kit 9737V2

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Dust Seal

1шт.

Included in repair kit 9737V2

1шт.

15

NSS

NOT SOLD SEPARAT

Piston Wear Ring

2шт.

Included in repair kit 9737V2

1шт.

16

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

17

87409389

CLEVIS,1 -1/2" - 12

cyl rod, Monarch 1 1/4" pin (#492655)

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

80001689

NUT

3/4"-16, G5

8шт.

25

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

End Cap Backup Washers

2шт.

Included in repair kit 9737V2

1шт.

41

87403963

SEAL KIT

hyd cylinder 5" Monarch with 2" rod

1шт.
