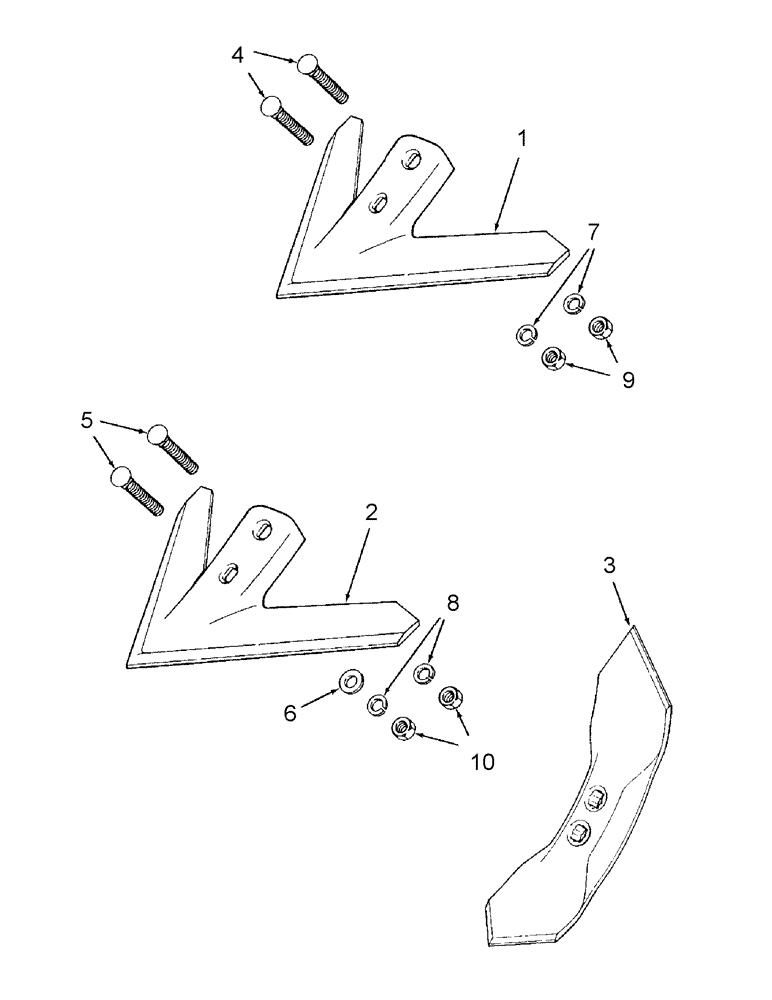

Запчасти Case IH 400 (75.200.52) - GROUND WORKING TOOLS (75) - SOIL PREPARATION

1

87589793

SWEEP

9" x 47º 202-9-4

1шт.

1

4497

SWEEP

11" x 47º 202-11-4

1шт.

1

5786

SWEEP

11" x 47º Penetrator P202-11-4P

1шт.

2

4499

SWEEP

16" x 50º Dart FD50-16K

1шт.

2

4885

SWEEP

18" x 50º Dart FD50-18K

1шт.

2

87589822

SWEEP

14" x 50º dart

1шт.

2

5785

SWEEP

16" x 50º Penetrator P50-16K

1шт.

2

9686

SWEEP

12" x 50º Low Crown Dart XD50-12K

1шт.

2

133768A1

SWEEP

14"

1шт.

3

5787

POINT

Reversible 2" x 14" x 5/8" 2-14-10 HC

1шт.

For Field Cultivator Shanks

1шт.

3

87589836

CHISEL

reversible - 2" x 16" x 5/8"

1шт.

For Chisel Plow Shanks

1шт.

4

280723

CARRIAGE BOLT,#3, 7/16" - 14 x 2", Gr 5

2шт.

Sweep only or sweep with single shoot banding/seeding boot on 3/4" x 1 3/4" or 7/8" x 2", 47 degree shank

1шт.

4

87315244

PLOW BOLT

7/16"-14 x 2 1/4", G5

2шт.

Sweep with single shoot cast seed boot) (Spike only or spike with single shoot banding/seeding boot on 3/4" x 1 3/4" or 7/8" x 2", 47 degree shank

1шт.

4

1472

PLOW BOLT,7/16" - 14 x 3 1/2", Gr 5

2шт.

Sweep with single shoot cast seed boot on 3/4" x 1 3/4" or 7/8" x 2", 47 degree shank

1шт.

5

280970

PLOW BOLT,#3, 1/2" - 13 x 2", Gr 5

2шт.

Sweep only or sweep with single shoot banding/seeding boot on 1" x 2", 50 degree shank

1шт.

5

280131

PLOW BOLT,#3, 1/2" - 13 x 2 1/4", Gr 5

2шт.

Sweep only on 1 1/4" x 2", 50 degree shank or sweep with single shoot banding/seeding boot on 1" x 2", 50 degree shank

1шт.

5

87021837

PLOW BOLT

1/2"-13 x 2 1/2", G5

2шт.

Spike only on 1 1/4" x 2", 50 degree shank

1шт.

5

419-2844

PLOW BOLT,#3, 1/2" - 13 x 2 3/4", Gr 5

2шт.

Sweep with single shoot cast seed boot on 1" x 2" or 1 1/4" x 2", 50 degree shank or sweep with single shoot banding/seeding boot on 1 1/4" x 2", 50 degree shank

1шт.

5

419-2864

PLOW BOLT,#3, 1/2" - 13 x 4", Gr 5

2шт.

Sweep with single shoot cast seed boot on 1" x 2", 50 degree shank or 1 1/4" x 2", 50 degree shank

1шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

7

81547

LOCK WASHER,7/16"

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

280717

NUT,7/16"-14, G5

2шт.

10

280431

NUT,1/2"-13, G5

2шт.
