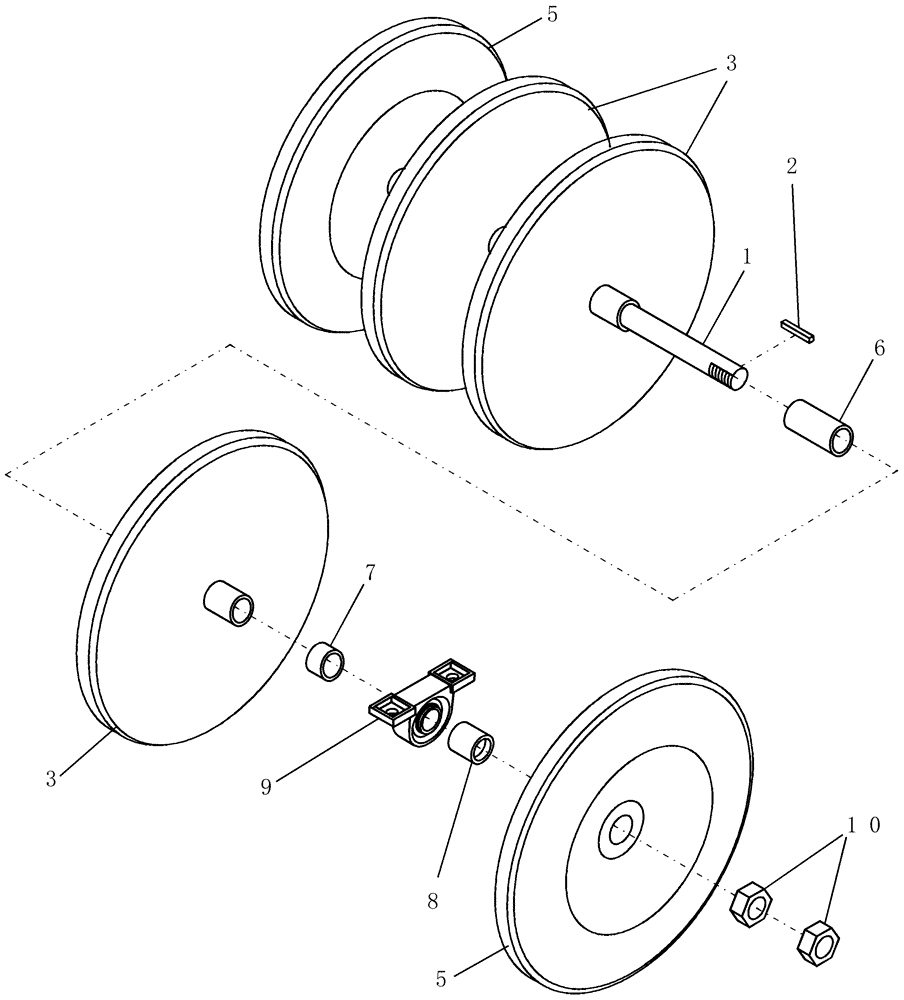

Запчасти Case IH 400 (75.200.38) - PACKER GANG ASSY 12" SPACING, 5 RUBBER WHEELS (75) - SOIL PREPARATION

0

DS-312A

WHEEL ASSY

gang 12" spacing 5" x 3" rubber

1шт.

0

DS-313A

WHEEL ASSY

gang 12" spacing 5" x 4" rubber

1шт.

0

DS-350A

WHEEL ASSY

gang 12" spacing 5" x 5 1/2" rubber

1шт.

1

DR-525

SHAFT

gang 51 7/8" long

1шт.

Used on DS-312A and DS-313A

1шт.

1

DR-578

SHAFT

gang 54 1/2" long

1шт.

Used on DS-350A

1шт.

2

DR-575

KEY

3/8" sq x 2 1/4" long

2шт.

3

DR-952A

WHEEL

press 3" rubber standard ( \\ ) spool

3шт.

Used on gang assemblies with 3.0" Press Wheels

1шт.

3

DR-956A

WHEEL,508mm OD x 101.6mm W

press 4" rubber standard ( \\ ) spool

3шт.

Used on gang assemblies with 4.0" Press Wheels

1шт.

3

DS-352A

WHEEL,508mm OD x 139.7mm W

press 5 1/2" rubber standard ( \\ ) spool

3шт.

Used on gang assemblies with 5.5" Press Wheels

1шт.

5

DR-954A

WHEEL

press 3" rubber end ( !! ) spool

2шт.

Used on gang assemblies with 3.0" Press Wheels

1шт.

5

DR-957A

WHEEL,508mm OD x 101.6mm W

press 4" rubber end ( !! ) spool

2шт.

Used on gang assemblies with 4.0" Press Wheels

1шт.

5

DS-353A

WHEEL,139.7mm OD

press 5 1/2" rubber end ( !! ) spool

2шт.

Used on gang assemblies with 5.5" Press Wheels

1шт.

6

DR-913

SPACER

press wheel 4 51/64" ( \\ )

2шт.

Used on gang assemblies with 3.5" Press Wheels

1шт.

7

DS-305

SPACER

press wheel 1 21/32" ( \! )

2шт.

8

DS-306

SPACER

press wheel 2 5/16" ( !! )

2шт.

Used on DS-312A and DS-313A

1шт.

8

DS-309

SPACER

press wheel 1 1/2" ( !! )

2шт.

Used on DS-350A

1шт.

9

87414

LUBE NIPPLE,1/4" - 28

2шт.

9

87502149

BEARING HOUSING

pillow block

2шт.

9

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

2шт.

9

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

2шт.

9

DR-004K

BEARING

kit packer - heavy duty triple lip seal

1шт.

Includes two bearings and four machine bushings to do one gang frame assembly

1шт.

10

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12

4шт.

100

7215

TYRE/TIRE

press wheel - 3" x 22"

5шт.

100

8251

TYRE/TIRE

press wheel - 4" x 22"

5шт.

100

9407

TYRE/TIRE

press wheel - 5 1/2" x 22"

5шт.
