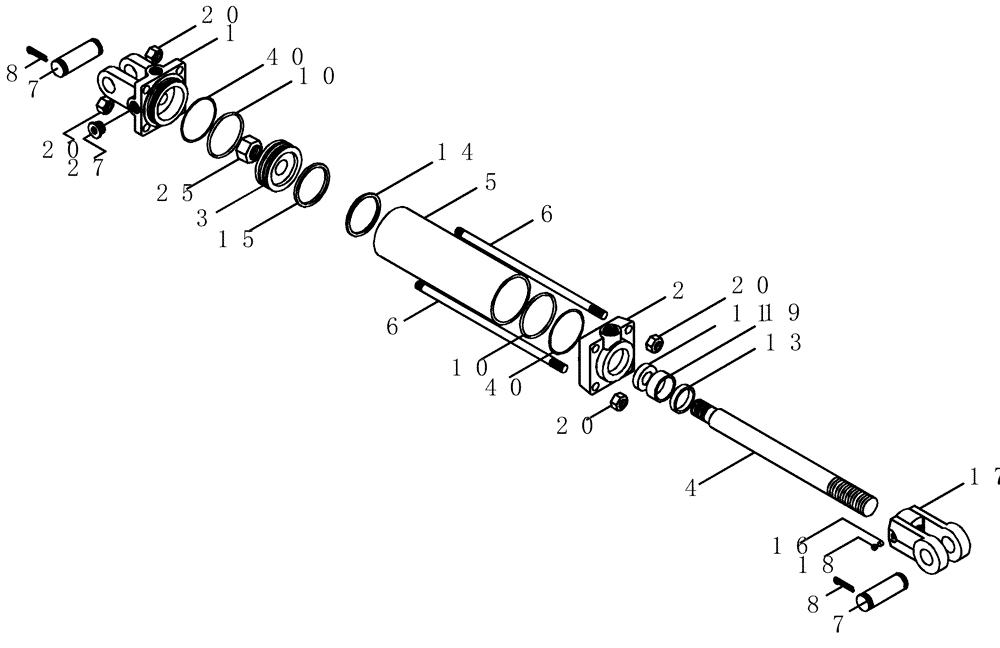

Запчасти Case IH 40 (75.200.06) - ENDMARKER HYDRAULIC CYLINDER 2 1/2" X 12" - 2500 PSI (75) - SOIL PREPARATION

0

425883A1

HYDRAULIC CYLINDER,Double Acting, 304.8mm Stroke

2 1/2" x 12" Monarch 3000 psi

1шт.

0

439274A1

SEAL KIT

cylinder 2 1/2" Monarch

1шт.

Includes two #10, #11, #13, #14, #15 and two #40

1шт.

1

439275A1

CYLINDER END CAP

CLEVIS 2.50 MONARCH

1шт.

2

439276A1

CYLINDER END CAP

rod 2 1/2" Monarch 1 1/8" #492673

1шт.

3

439277A1

PISTON

cylinder, 2 1/2" Monarch* part #495046

1шт.

4

439279A1

PISTON ROD

2 1/2" x 12" Monarch

1шт.

5

NSS

NOT SOLD SEPARAT

cylinder tube

1шт.

6

NSS

NOT SOLD SEPARAT

tie rod

4шт.

7

439278A1

CLEVIS PIN

1" x 3" with keeper pins

2шт.

8

86523851

COTTER PIN,5/32" x 1 1/4"

4шт.

10

NSS

NOT SOLD SEPARAT

End Cap O-ring

2шт.

11

NSS

NOT SOLD SEPARAT

Rod Wiper Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Dust Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Piston Wear Ring

1шт.

16

NSS

NOT SOLD SEPARAT

Nylon Thread Protector

1шт.

17

87449358

CLEVIS

cylinder 1" pin Monarch 1 1/8"-12 rod

1шт.

18

NSS

NOT SOLD SEPARAT

set screw

1шт.

19

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

20

9628503

NUT,3/8"-16, G5

8шт.

25

425038A1

NUT

cylinder piston 3/4"-16, GA

1шт.

27

NSS

NOT SOLD SEPARAT

Port Plug

1шт.

40

NSS

NOT SOLD SEPARAT

End Cap Backup Washers

2шт.
